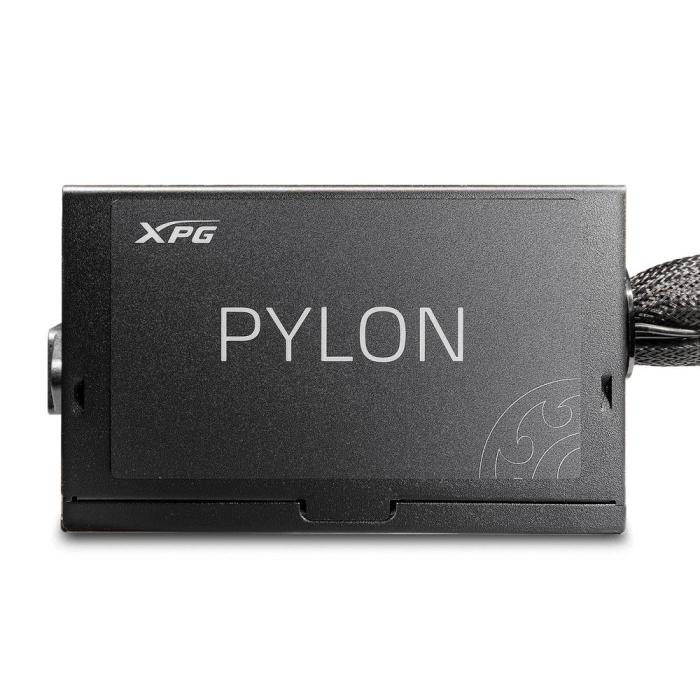

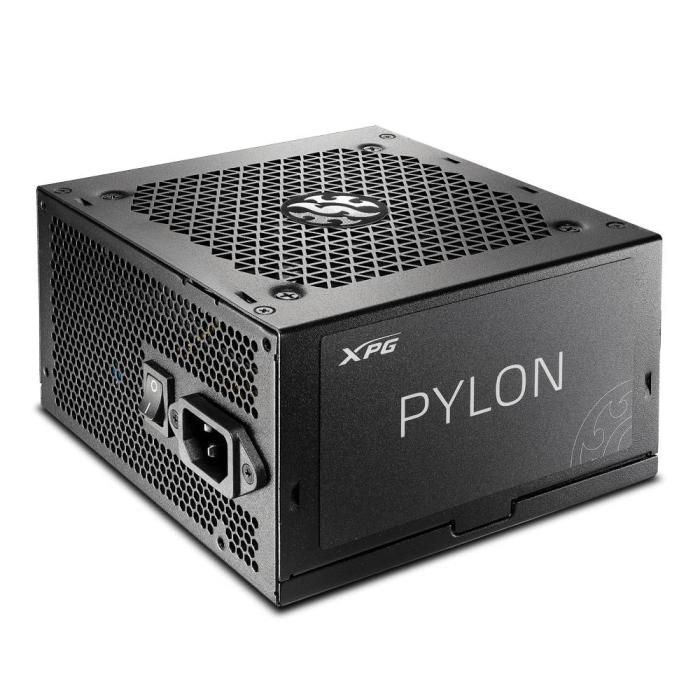

XPG Pylon power supply unit 550 W 20+4 pin ATX ATX Black
XPG Pylon, 550 W, 100 - 240 V, 50/60 Hz, Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, 20+4 pin ATX, Non-Modular.
More infoBrand: ADATA
55.79 €Stock available: 0 units.
Unavailable
SKU:
112770
PRC:
317468
EAN:
4710273776781
PN:
pylon550b-bkcgb
Description
XPG Pylon, 550 W, 100 - 240 V, 50/60 Hz, Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, 20+4 pin ATX, Non-Modular
Specifications
Power
- Total power: 550 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 5
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes
- Cabling type: Non-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- Mean time between failures (MTBF): 100000 h
- Certification: CB(62368+60950) / TUV / cTUVus / CE / FCC / BSMI / CCC / RCM / EAC / EAC RoHS / NOM
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 800 - 2000 RPM
- Fan location: Top
Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 86 mm
Technical details
- Sustainability certificates: RoHS
