Description

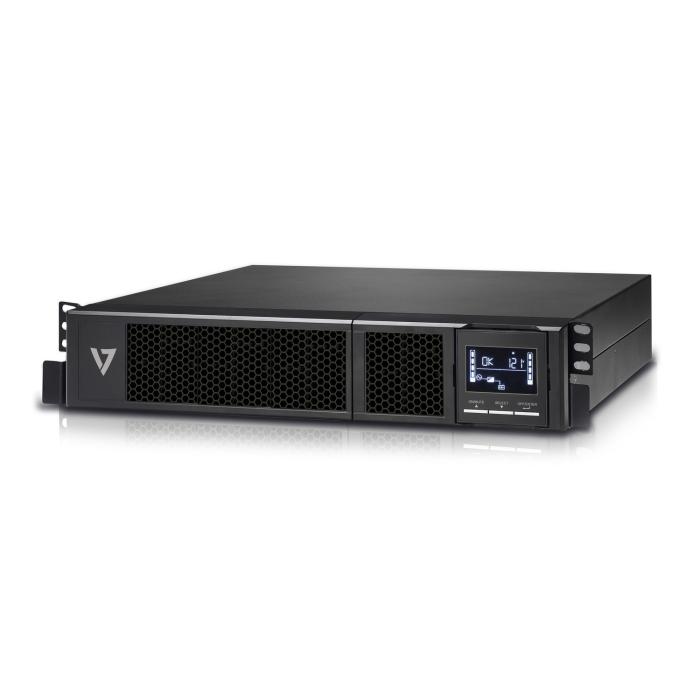

The V7 3000 VA UPS for rack mounting, supplied in two units, offers an output power of 2700 W with line-interactive topology and sine waveform. It includes overload protection and a 720 J energy increase rating, as well as emergency shutdown. Its transfer time is 4 ms minimum and 8 ms maximum, with a noise level of 45 dB. Connection is made via IEC AC outputs, an RS-232 serial port, a USB port and an RJ-45 Ethernet port. It features audible alarms that sound when switching to battery, on fault, low battery or overload. It has a weight of 29.3 kg, dimensions of 438 x 88 x 630 mm (width x height x depth) and a 3.05 m cable, in black.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 3 kVA
- Output power: 2700 W
- Waveform: Sine
- Surge energy rating: 720 J
- Hold time (min): 4 ms
- Hold time (max): 8 ms
- Emergency Power Off (EPO): Yes
- Noise level: 45 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm

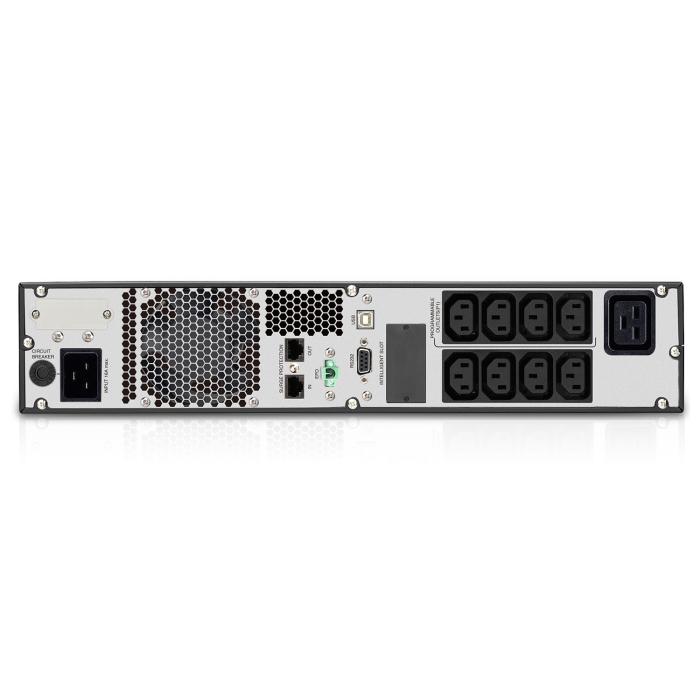

Ports & interfaces
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
- Emergency Power Off (EPO) connector: Yes
- AC outlet types: IEC Jumpers
- Number of output IEC jumpers: 8
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232
- RS-232 ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 648 VAh
- Battery voltage: 12 V
- Typical backup time at full load: 3.7 min
- Typical backup time at half load: 11.8 min
- Battery recharge time: 4 h
Design

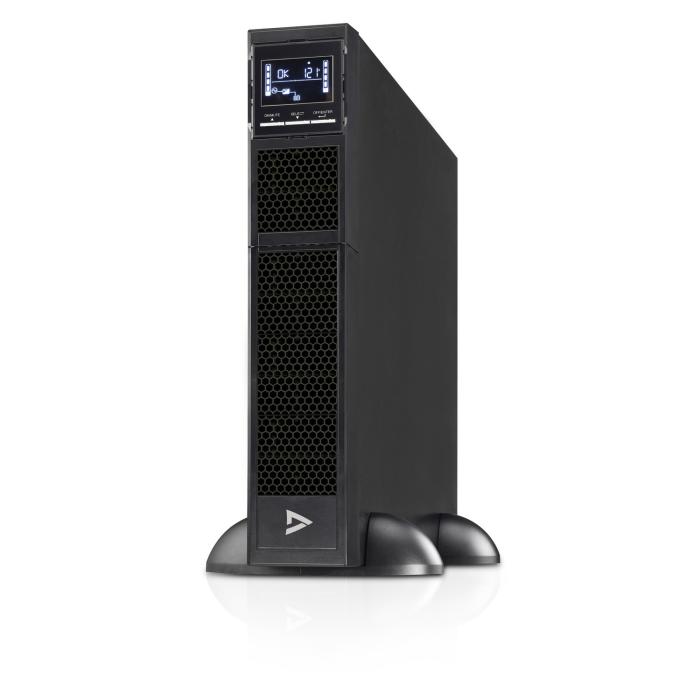

- Form factor: Rackmount/Tower
- Rack capacity: 2U
- Cable length: 3.05 m
- Cooling type: Active
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Certificates
- Compliance certificates: RoHS
- Certification: CE, REACH
Packaging content
- Quick installation guide: Yes
Weight & dimensions
- Width: 438 mm
- Depth: 630 mm
- Height: 88 mm
- Weight: 29.3 kg
Packaging data
- Warranty card: Yes
- Package width: 565 mm
- Package depth: 700 mm
- Package height: 240 mm
- Package weight: 32.6 kg
Logistics data
- Harmonized System (HS) code: 85078000
- Country of origin: China
