Description

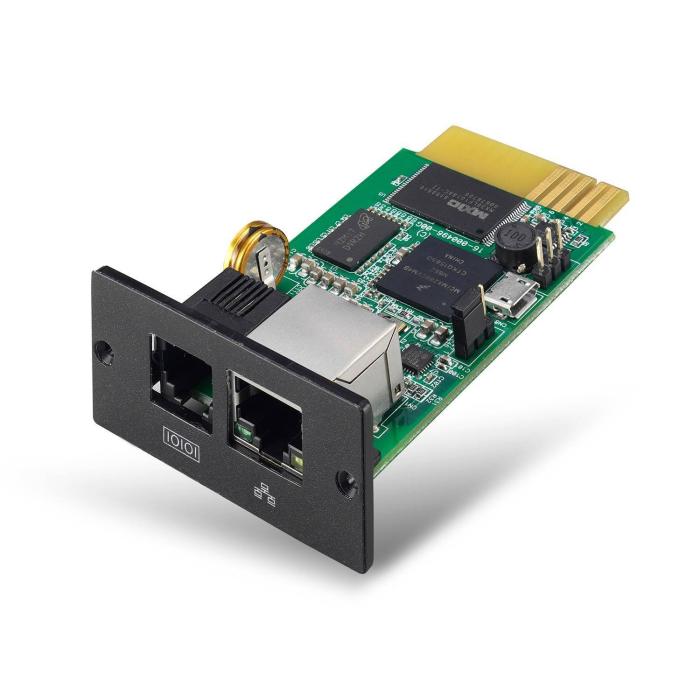

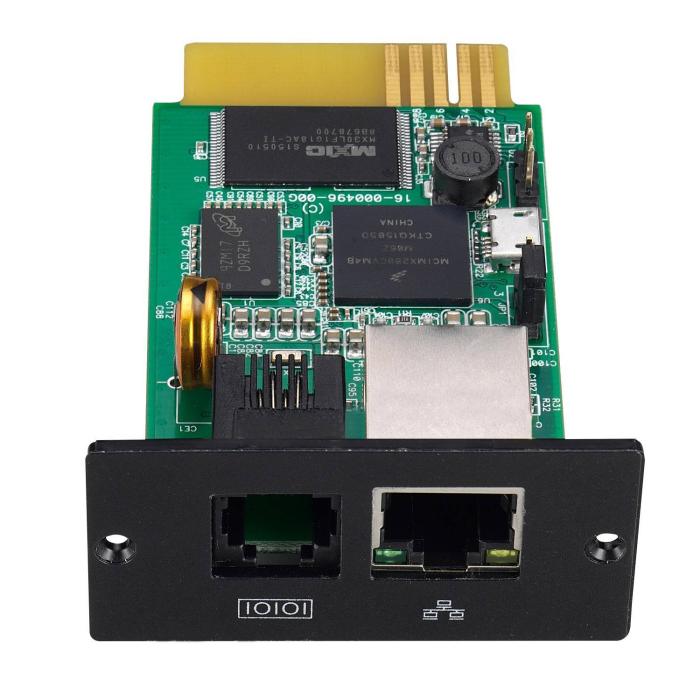

The V7 network management card with SmartSlot host interface adds SNMP control to your UPS. It features an RJ-45 Ethernet LAN port with 10/100BaseT(X) cabling technology and a data transfer rate of 10, 100 Mbit/s over fast Ethernet. It supports SNMP-V1 and SNMP-V2 management protocols, with SNMP security algorithms and password protection. It is compatible with MIB RFC1213, RFC1628 and Proprietary MIB, and includes status LED indicators. It comes in black and green, with dimensions of 80 x 26 x 52.6 mm and a weight of 200 g. It supports an operating temperature range of 0 - 40 °C and a relative humidity of 0 - 95%. It has CE, FCC certification and RoHS compliance certificates.
Specifications
Features
- Product type: Network management card
- Product colour: Black, Green
- LED indicators: Status
- MIB support: RFC1213, RFC1628, Proprietary MIB
Performance
- Management protocols: SNMP-V1, SNMP-V2
- Password protection: Yes
Ports & interfaces
- Host interface: SmartSlot
- Ethernet LAN (RJ-45) ports: 1
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Cabling technology: 10/100BaseT(X)
- Security algorithms: SNMP
Certificates
- Compliance certificates: RoHS
- Certification: CE, FCC
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 80 mm
- Depth: 52.6 mm
- Height: 26 mm
- Weight: 200 g
Packaging content
- Manual: Yes
Packaging data
- Package width: 135 mm
- Package depth: 170 mm
- Package height: 45 mm
- Package weight: 300 g
Logistics data
- Harmonized System (HS) code: 85079080
