Description

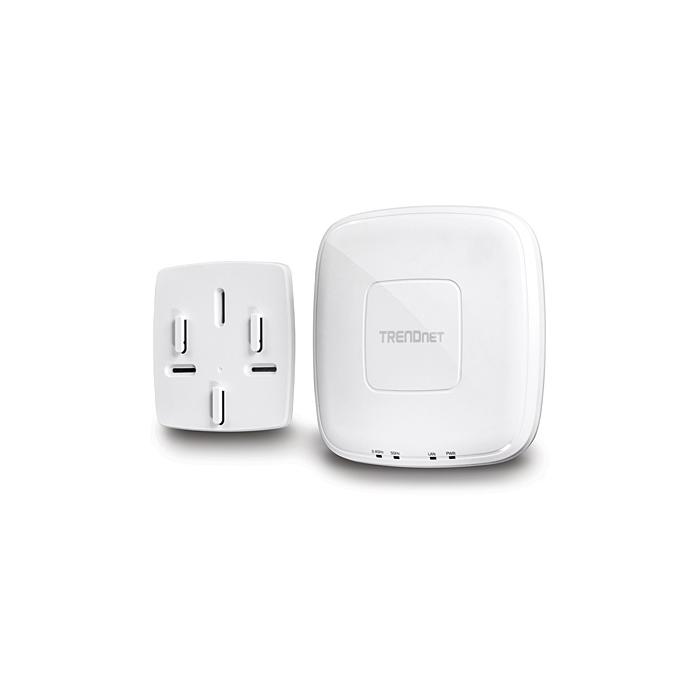

The Trendnet TEW-821DAP v1.0R wireless access point in white offers Ethernet LAN connectivity with data transfer rates of 10, 100 and 1000 Mbit/s, reaching a maximum of 1000 Mbit/s on the wired network and up to 867 Mbit/s on the 5 GHz band, as well as operating on the 2.4 GHz and 5 GHz frequencies within the range 2.412 – 2.472. This model supports VLAN functions, including SSID-based assignment, and features quality of service (QoS) along with Wi-Fi Multimedia (WMM/WME). In terms of security, it supports up to 8 SSIDs and algorithms such as WEP, WPA, WPA2-PSK and WPA2-RADIUS, and includes MAC address filtering and SSID broadcast control. Its management is carried out through a web interface, with support for SNMP v1/v3 protocols and updatable firmware.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1000 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.412 – 2.472
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE
- Spread spectrum method: DSSS
- Modulation: 16-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Virtual LAN features: SSID-based VLAN assignment
- Quality of Service (QoS) support: Yes
Security
- Security algorithms: WEP, WPA, WPA2-PSK, WPA2-RADIUS
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: SSID broadcast on/off
- Number of SSID supported: 8
Protocols
- Management protocols: SNMP v1/v3
Management features
- Web-based management: Yes
- Switch type: Managed
- Firmware upgradeable: Yes

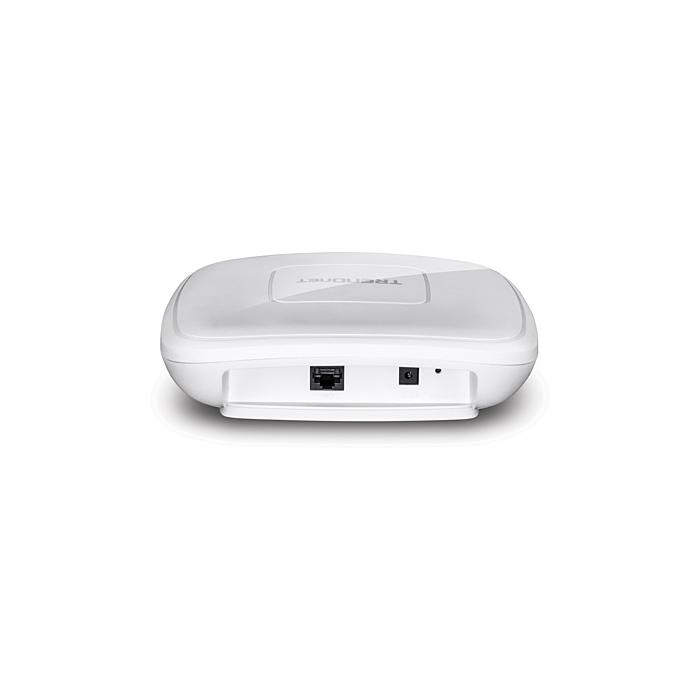

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Output voltage: 12 V
- Output current: 1 A
- Power consumption (typical): 9.6 W
Design
- Placement: Table, Wall
- Product colour: White
- On/off switch: Yes

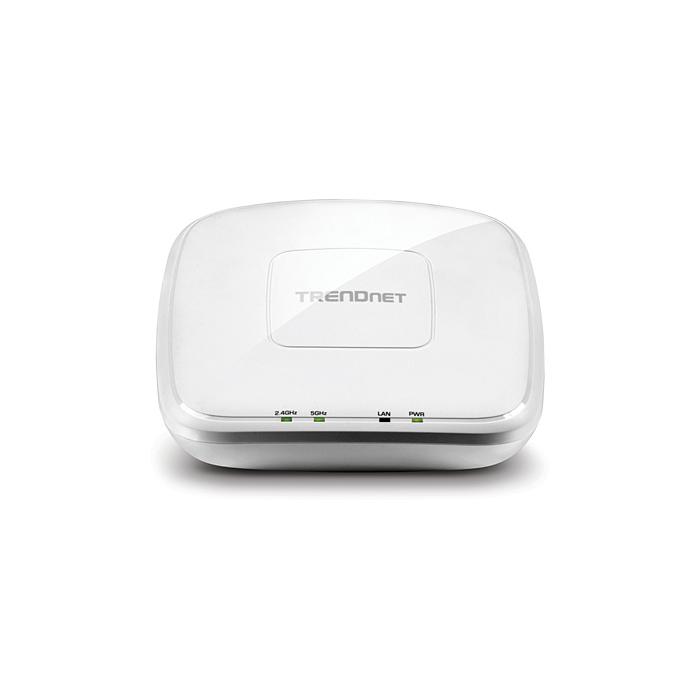

- LED indicators: Yes
- Internal: No
Antenna
- Antenna type: Internal
- Antennas quantity: 2
- Antenna gain level (max): 4 dBi
Performance
- Compatible operating systems: Windows 8.1, 8, 7, Vista, XP
Certificates
- Certification: CE, FCC
Weight & dimensions
- Width: 187 mm
- Depth: 187 mm
- Height: 46 mm
- Weight: 456 g
Packaging data
- CD quick installation guide: Yes
- Package type: Box

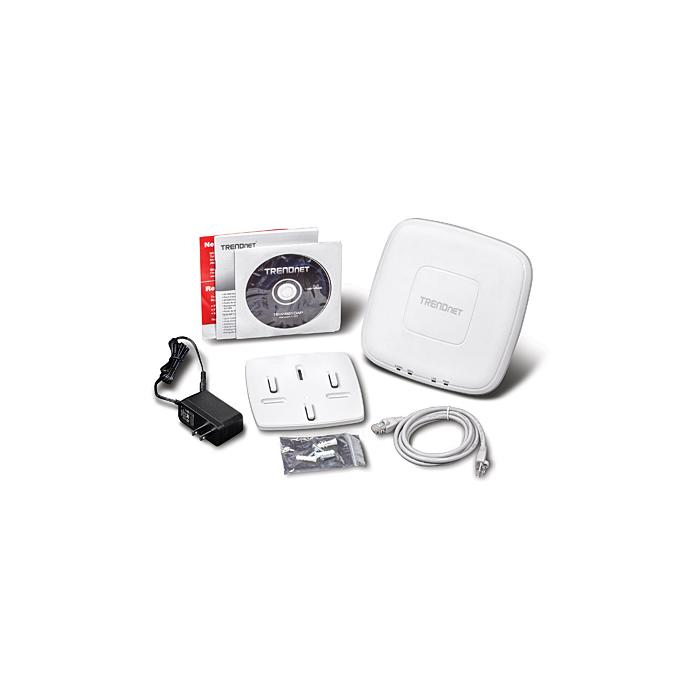

Packaging content
- Quick start guide: Yes
- AC adapter included: Yes
- Cables included: LAN (RJ-45)
- Mounting kit: Yes
Operational conditions
- Operating relative humidity (H-H): 0 - 95%
- Operating temperature (T-T): 0 - 40 °C
Logistics data
- Harmonized System (HS) code: 85176990
