Description

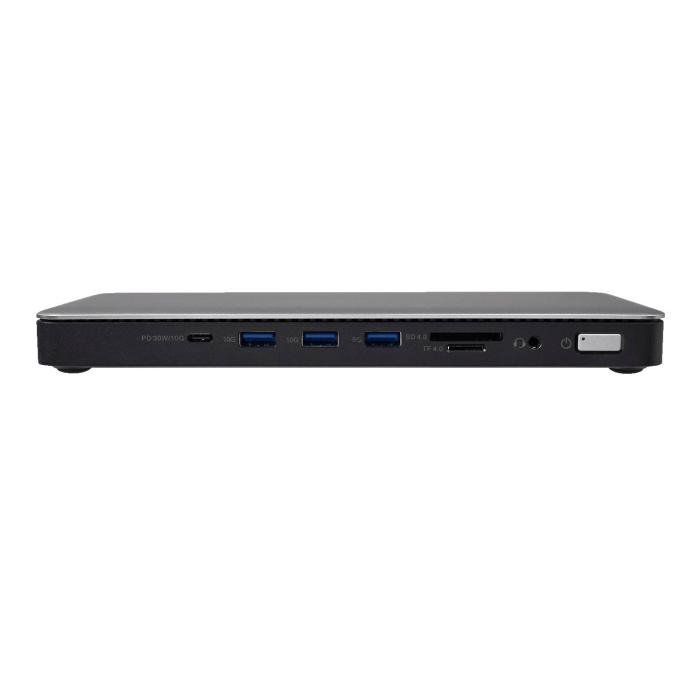

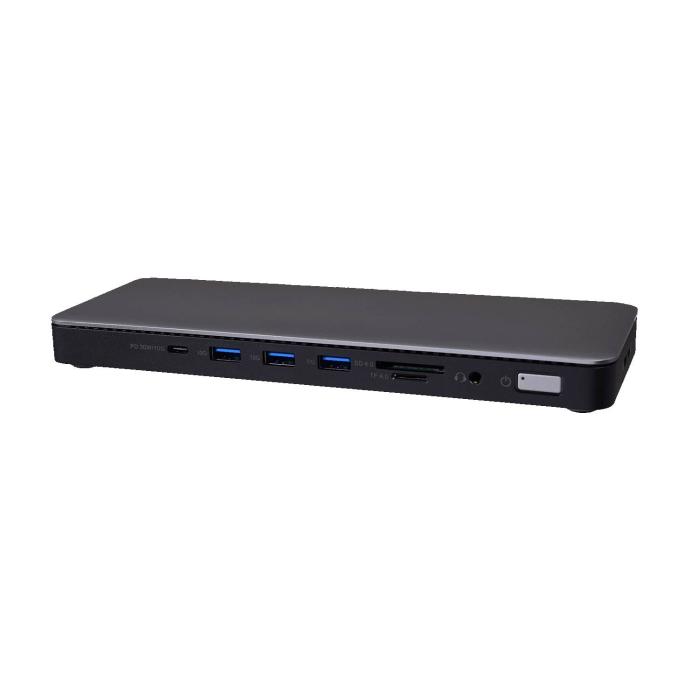

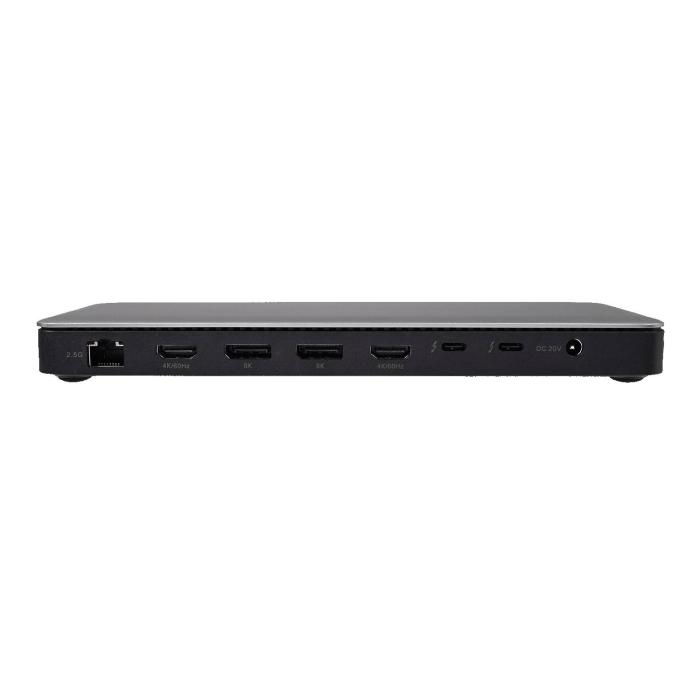

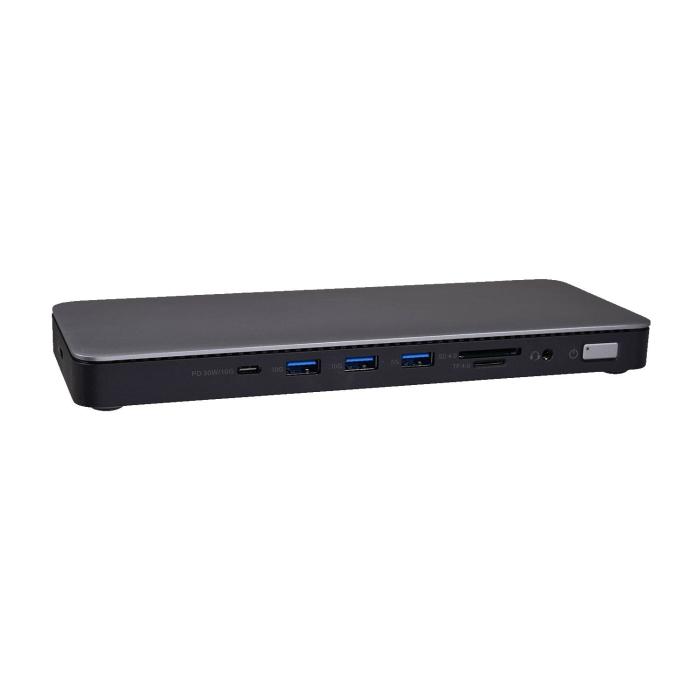

The V7 TB4 Dock is a laptop dock and port replicator with a wired connection that expands your device's connectivity via a Thunderbolt 4 host interface. It features three Thunderbolt 4 ports, two USB Type-A USB 3.2 Gen 2 ports, one USB Type-A USB 3.2 Gen 1 port, and one USB Type-C USB 3.2 Gen 2 port. For video output it has two HDMI ports and two DisplayPorts, so you can connect several displays at once. Network connectivity is handled by an RJ-45 Ethernet port, and the audio section includes a 3.5 mm headphone output, a headphone and microphone combo output, and a microphone input. Its chassis, in black and silver, measures 85 x 22 x 225 mm and weighs 500 g, a compact format that fits under the laptop. It also has a security cable slot that allows you to secure the device.
Specifications
Ports & interfaces
- Connectivity technology: Wired

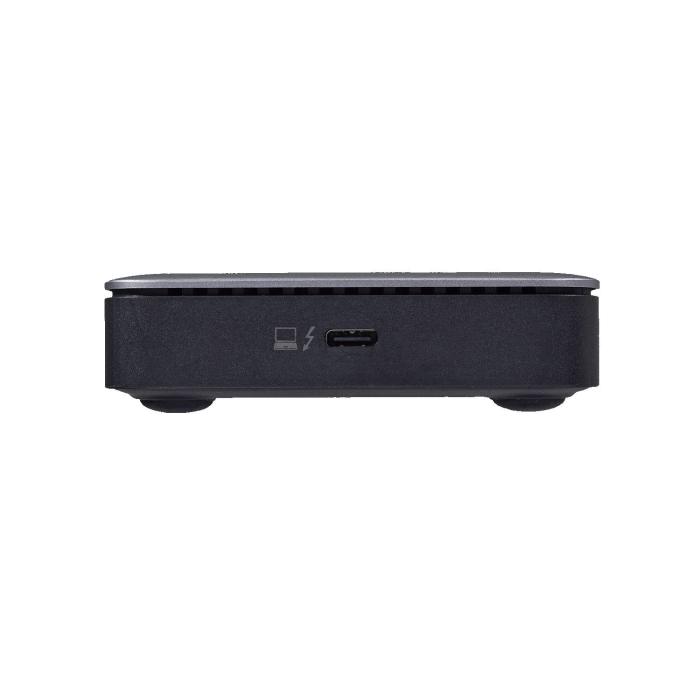

- Host interface: Thunderbolt 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- HDMI ports quantity: 2
- DisplayPorts quantity: 2
- Thunderbolt 4 ports quantity: 3
- Microphone in: Yes
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), SD
- Data transfer rate: 2.5 Gbit/s
- HD type: 4K Ultra HD

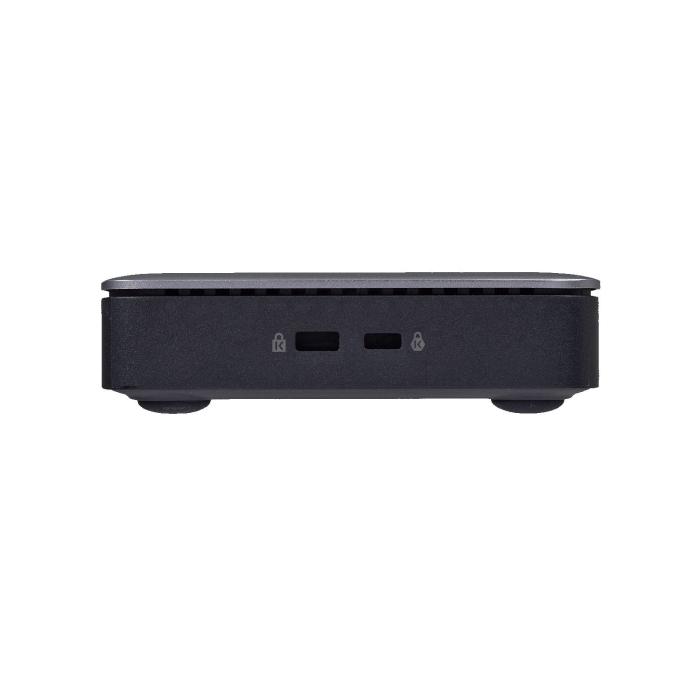

- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: Black, Silver
- On/off switch: Yes
- LED indicators: Yes
- Housing material: Acrylonitrile butadiene styrene (ABS)
- Country of origin: Vietnam
- Certification: CE,FCC,RoHS
Power
- Power source type: DC
- AC input voltage: 100 - 240 V
- Output voltage: 20 V
- Output current: 7.5 A
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): 0 - 70 °C
Weight & dimensions
- Width: 85 mm
- Depth: 225 mm
- Height: 22 mm
- Weight: 500 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 160 mm
- Package depth: 270 mm
- Package height: 60 mm
- Package weight: 1.05 kg
Packaging content
- Cables included: DC
- AC adapter included: Yes
- Quick start guide: Yes
