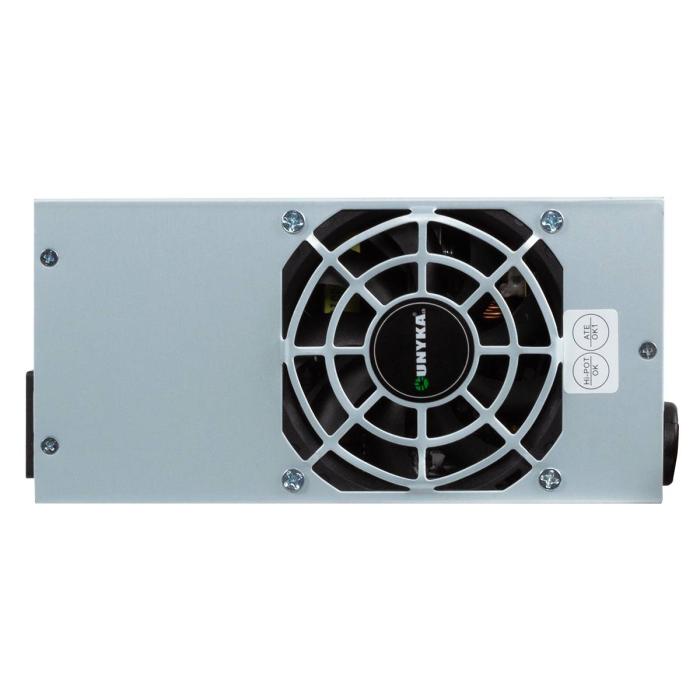

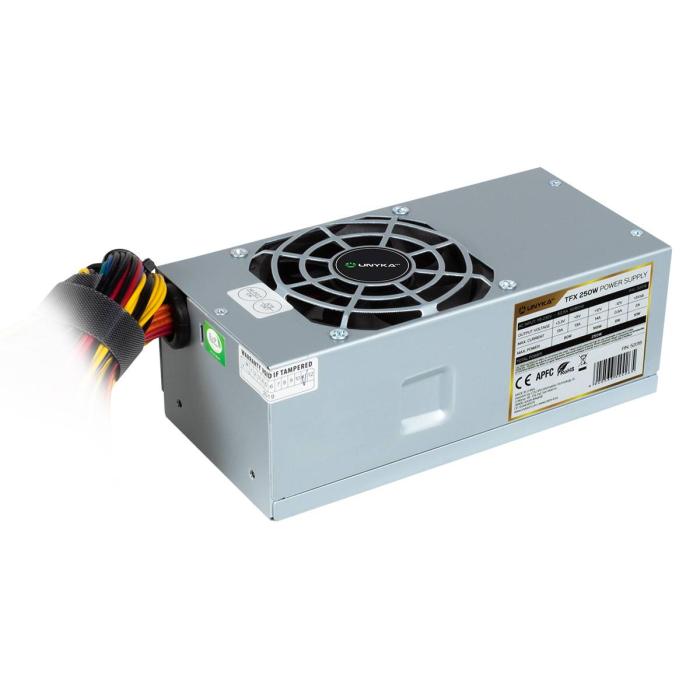

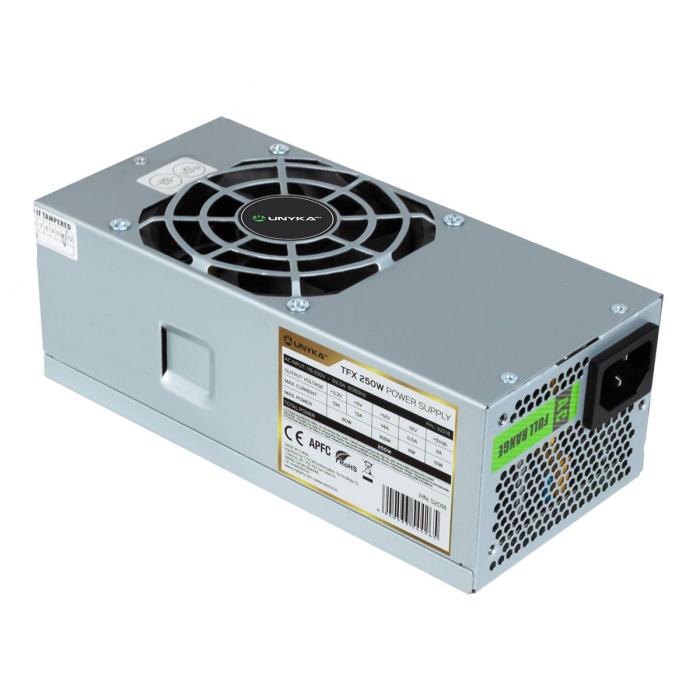

UNYKAch TFX 250W 92% Efficiency Power Supply

$34.28

$34.28 without VAT

UNYKAch TFX 250W 92% Efficiency Power Supply. More info

Amount

Brand: UNYKACH

SKU: 84571 PRC: 286930 EAN: 6940533544265 PN: 52018

Description

Specifications

Power

Total power: 250 W
AC input voltage: 115 - 230 V
AC input frequency: 50 - 60 Hz
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 13 A
Max output current (+12V1): 14 A
Max output current (+5V): 13 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2 A
Efficiency: 92%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 32 cm
Number of SATA power connectors: 3
SATA power cable length: 320, 450 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 450 mm
CPU power connector (4+4 pin): Yes
CPU power cable length: 32 cm
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: Server
Power supply unit (PSU) form factor: TFX
ATX version: 2.3

Design

Product colour: Silver
Cooling type: Active
Fan diameter: 8 cm
Number of fans: 1 fan(s)
Fan location: Top

Certificates

Compliance certificates: RoHS
Certification: CE

Weight & dimensions

Width: 85 mm
Depth: 175 mm
Height: 65 mm
Weight: 877 g

Packaging data

Package width: 85 mm
Package depth: 175 mm
Package height: 65 mm
Package weight: 877 g

Other features

Mounting type: Rack mounting
Redundant power supply (RPS) support: Yes
