Description

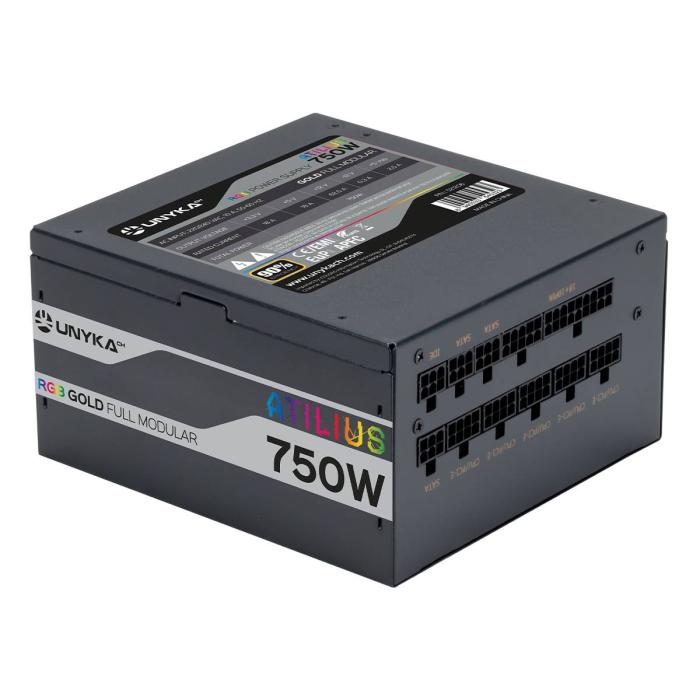

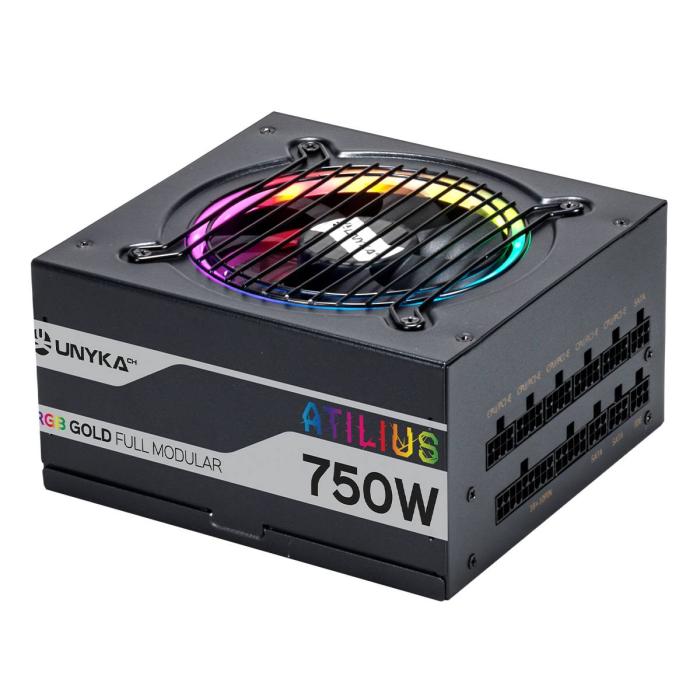

ATX power supply unit from UNYKACH, model Atilus RGB, in black, with a total power of 750 W and an efficiency of 90%. It incorporates fully modular cabling and a 20+4 pin ATX motherboard connection, with a 60 cm cable, as well as a 4+4 pin EPS connector and a 4 pin Molex peripheral connector. It supports an input voltage of 100 to 240 V with a frequency of 50 to 60 Hz and features active power factor correction. It distributes its current across 62.5 A for the +12 V rail, 18 A for the +3.3 V rail and 2.5 A for the +5Vsb rail, with a combined power of 18 W on the +5 V rail. It includes overvoltage, short circuit and undervoltage protection. Its dimensions are 150 x 85 x 160 mm (width x height x depth) and it weighs 2.05 kg.
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+5V): 18 W
- Max output current (+3.3V): 18 A
- Max output current (+12V): 62.5 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 90%
- Power protection features: Over power, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 2
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power connectors (4-pin): 1
- Peripheral (Molex) power cable length: 150, 500 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 50 cm
- ATX power connector (20+4 pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
Design
- Product colour: Black
- Cooling type: Active

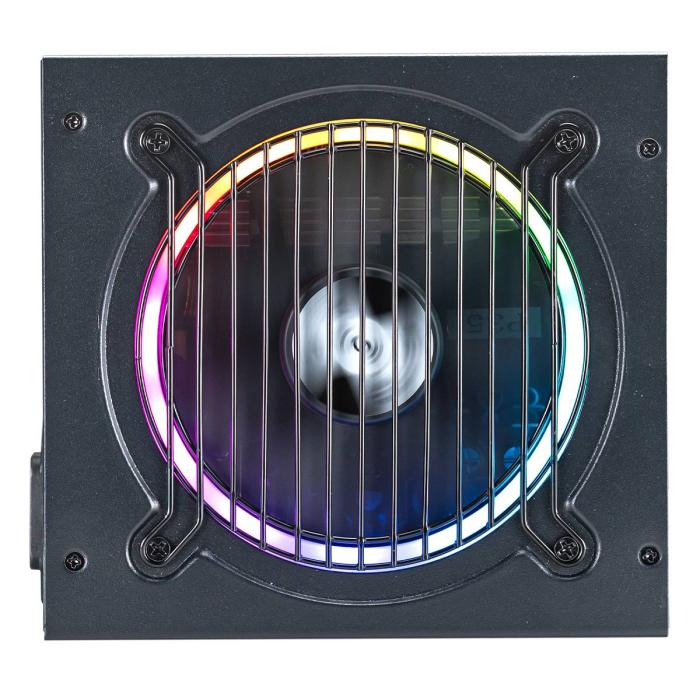

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 1000 - 2200 RPM
- Fan location: Top
- Illumination: Yes
- On/off switch: Yes
Packaging content
- Cables included: AC
Certificates
- Certification: CE / ROHS / EN60950 / TÜV / 90% Effinciency
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 85 mm
- Weight: 2.05 kg
Packaging data
- Package width: 225 mm
- Package depth: 350 mm
- Package height: 115 mm
- Package weight: 2.3 kg
- Package type: Box
Logistics data
- Country of origin: Taiwan
