Description

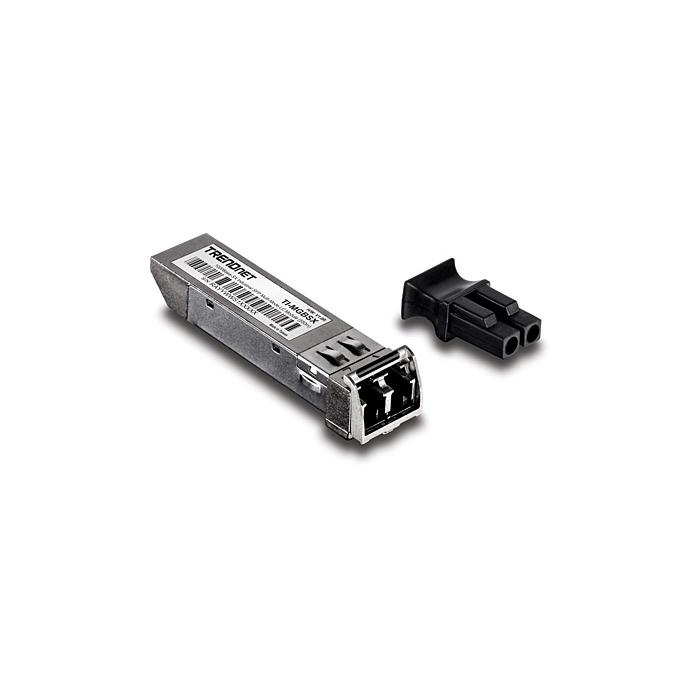

The Trendnet TI-MGBSX SFP transceiver module, in grey with a metal casing, is designed for multimode fibre optic connections with a wavelength of 850 nm. It offers one fibre channel port with an SFP interface and LC connector, achieving a maximum transfer distance of 550 metres and a data rate of 1250 Mbit/s in full-duplex mode. Compliant with IEEE 802.3, 802.3u and 802.3z standards, it includes hot-plug support and consumes only 1 W, operating within a temperature range of -40 to 85 °C. This SX transceiver is certified to MSA, FCC and CE, meeting the specifications required for integration into Ethernet networks.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: SX
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Ethernet LAN (RJ-45) ports: 1
- Duplex system: Full
- Fiber ports quantity: 1
Features
- Product colour: Grey
- Housing material: Metal
- Hot-Plug support: Yes
Power
- Power consumption (typical): 1 W
Certificates
- Certification: MSA FCC CE
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
Weight & dimensions
- Width: 13 mm
- Depth: 57 mm
- Height: 8.5 mm
- Weight: 17 g
Packaging content
- Quantity per pack: 1 pc(s)
Other features
- RX sensitivity: -20 dB
Logistics data
- Harmonized System (HS) code: 85369010
