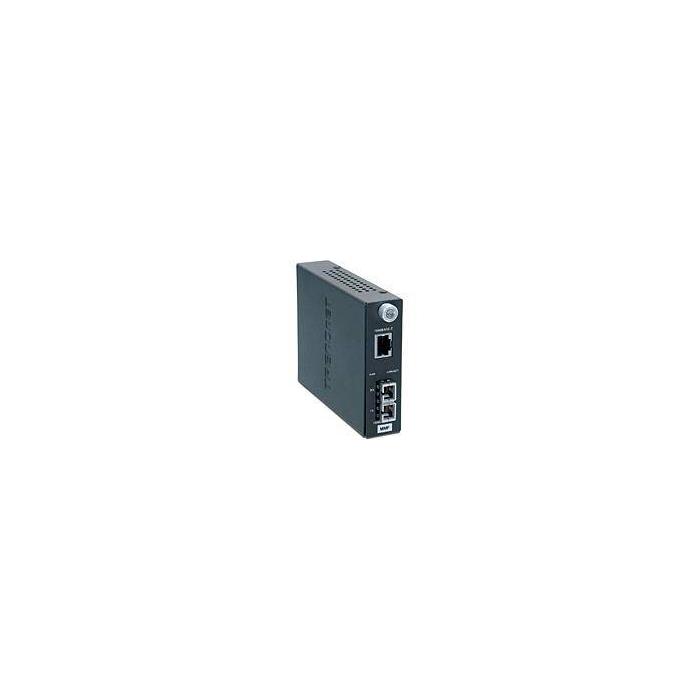

Trendnet TFC-1000MSC 2000Mbit/s 1310nm Multi-mode Grey network media converter
Trendnet TFC-1000MSC, 2000 Mbit/s, 1000Base-T, 1000Base-LX, IEEE 802.3ab,IEEE 802.3z, Gigabit Ethernet, 1000 Mbit/s.
More infoBrand: TRENDNET
69.00 €Stock available: 0 units.
Unavailable
SKU:
73611
PRC:
52173
EAN:
710931504156
PN:
TFC-1000MSC
Description
Converts the TRENDNET TFC-1000MSC, a grey wired connectivity technology media converter, signals between fibre optic and Ethernet networks. It reaches a maximum transfer rate of 2000 Mbit/s and works with Gigabit Ethernet under the IEEE 802.3ab and IEEE 802.3z standards, with a data rate of 1000 Mbit/s. Its input interface is 1000Base-T through an RJ-45 Ethernet LAN port, while the output is 1000Base-LX with an SC fibre optic connector. It is designed for multimode fibre, with a wavelength of 1310 nm and a maximum transfer distance of 550 m. Its power consumption is 2,7 W and it is powered by an external power adapter that supports an input voltage of 100-240 and a frequency of 50/60. With a weight of 354 g, it is a compact piece to integrate into network installations.
Specifications
Networking
- Data transfer rate (max): 2000 Mbit/s
- Converter input interface: 1000Base-T
- Converter output interface: 1000Base-LX
- Networking standards: IEEE 802.3ab,IEEE 802.3z
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 1000 Mbit/s
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber optic connector: SC
Performance
- Maximum transfer distance: 550 m
- Wavelength: 1310 nm
- Fiber mode structure: Multi-mode
Design
- Internal: No
- Colour of product: Grey
Power
- Input voltage: 100-240
- AC input frequency: 50/60
- Power consumption (typical): 2.7 W
- External power adapter: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -25 - 70 °C
Certificates
- Certification: FCC,CE
Weight & dimensions
- Weight: 354 g
Other features
- Dimensions (WxDxH): 120 x 88 x 25 mm
