Description

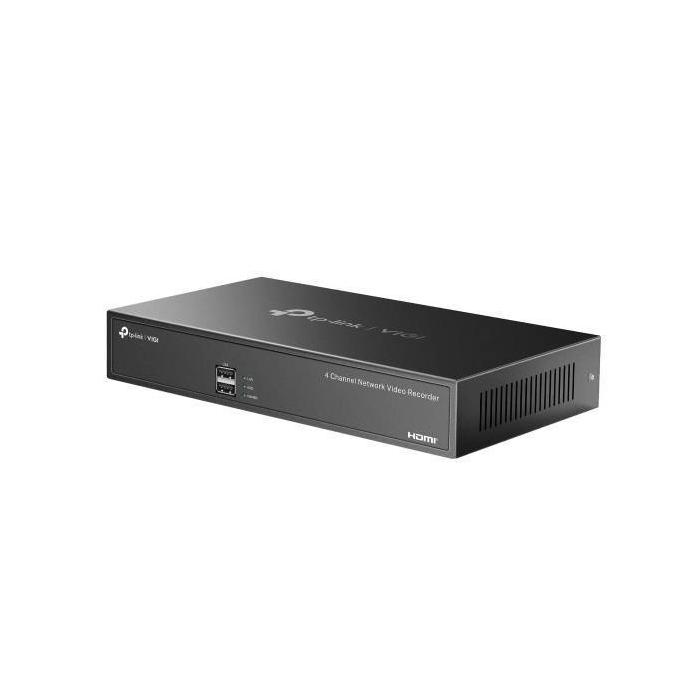

The TP-Link VIGI NVR1004H network video recorder in black offers 4 video input channels for setting up a surveillance system. It supports the H.264, H.264+, H.265 and H.265+ compression formats, as well as the G.711u and G.726 audio formats. It reaches a maximum resolution of 3840 x 2160 pixels and records in 720p, 1080p and 2160p, with a maximum speed of 30 fps and capture at 1280x720 at 60 fps, 1920x1080 at 60 fps and 3840x2160 at 30 fps. It works with an input bandwidth of 80 Mbit/s and an output bandwidth of 60 Mbit/s, and incorporates video motion detection, manual and scheduled recording mode, and a backup function. The hard drive interface is SATA, with a maximum storage capacity of 10 TB, and it is compatible with the UPnP and NTP protocols. Its dimensions are 246.2 x 45 x 148.2 mm (width x height x depth) and its weight is 590 g.
Specifications
Performance
- Video motion detection: Yes
- Backup function: Yes
- Maximum frame rate: 30 fps
- Recording modes: Manual, Schedule
- Video input channels: 4 channels
- Video recording modes: 720p, 1080p, 2160p
- Maximum resolution: 3840 x 2160 pixels
- Supported resolutions: 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
- Resolution at capture speed: 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
- Audio formats supported: G.711u, G.726
- Video formats supported: H.264, H.264+, H.265, H.265+
- Input bandwidth: 80 Mbit/s
- Output bandwidth: 60 Mbit/s
Wireless LAN features
- Wi-Fi: No
Hard drive
- HDD capacity: 0 GB
- Maximum storage capacity: 10 TB
- HDD interface: SATA

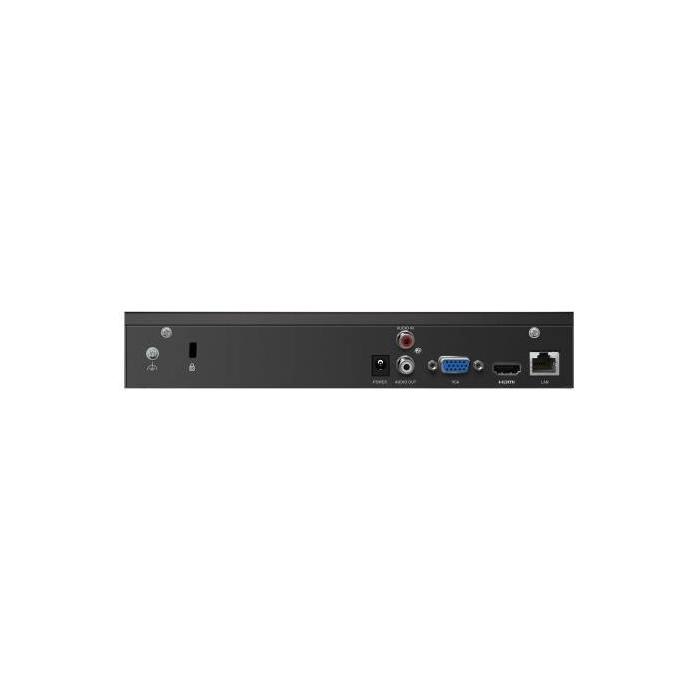

Ports & interfaces
- DC-in jack: Yes
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet (PoE) ports quantity: 1
- HDMI output: Yes
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 2
- Audio RCA inputs: 1
- Audio RCA outputs: 1
- Supported network protocols: UPnP (Plug and Play), NTP (Network Timing)
Features
- Reset button: Yes
- LED indicators: Yes
- Product colour: Black
Power
- Power consumption (typical): 4.25 W
System requirements
- Mobile operating systems supported: Android, iOS
- Browser supported: Chrome (57+), Firefox (52+), Edge (91+)
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 246.2 mm
- Depth: 148.2 mm
- Height: 45 mm
- Weight: 590 g
- Package weight: 950 g
Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
