Description

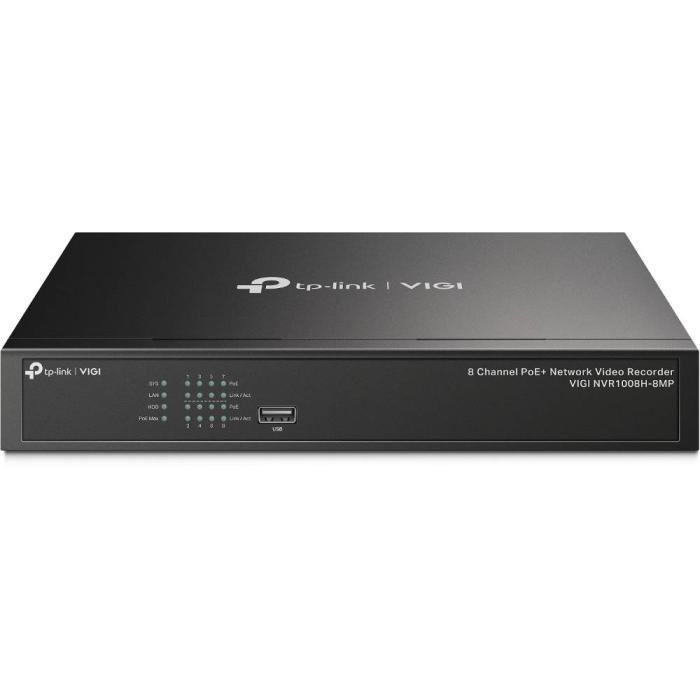

TP-Link VIGI NVR1008H-8MP 8-channel network video recorder, black, with a maximum resolution of 3840 x 2160 pixels. It records in 720p, 1080p and 2160p, and supports resolutions up to 3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1024 x 768 and 1280 x 720. It offers a capture speed resolution of 1280x720@60fps, 1920x1080@60fps and 3840x2160@30fps, and incorporates one HDMI port, one VGA (D-Sub), two USB 2.0 ports and one Ethernet LAN (RJ-45) port. The compatible network protocols are TCP/IP, DHCP, DNS, NTP and UPnP, and the video formats H.264, H.264+, H.265 and H.265+. It has 8 alarm input channels and 1 alarm output channel, as well as one RCA audio input and one RCA audio output. Storage supports a maximum capacity of 10 TB, with a power consumption of 4.82 W and an output current of 2.43 A, and its dimensions are 294 x 44 x 180 mm.
Specifications
Performance
- Video input channels: 8 channels
- Alarm input channels: 8
- Alarm output channels: 1
- Video recording modes: 720p, 1080p, 2160p
- Maximum resolution: 3840 x 2160 pixels
- Supported resolutions: 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
- Resolution at capture speed: 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
- Video formats supported: H.264, H.264+, H.265, H.265+
- Input bandwidth: 80 Mbit/s
- Output bandwidth: 60 Mbit/s
Wireless LAN features
- Wi-Fi: No
Hard drive
- HDD capacity: 0 GB
- Maximum storage capacity: 10 TB
- HDD interface: SATA
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- HDMI output: Yes
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 2
- Audio RCA inputs: 1
- Audio RCA outputs: 1
- Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP
Features
- LED indicators: Yes
- Product colour: Black
Power
- Power consumption (typical): 4.82 W
- Output current: 2.43 A
- Output voltage: 53.5 V
- Total Power over Ethernet (PoE) budget: 119 W
Operational conditions
- Operating temperature (T-T): -10 - 55 °C
Weight & dimensions
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
- Package width: 250 mm
- Package depth: 400 mm
- Package height: 80 mm
- Package weight: 2.1 kg
