Description

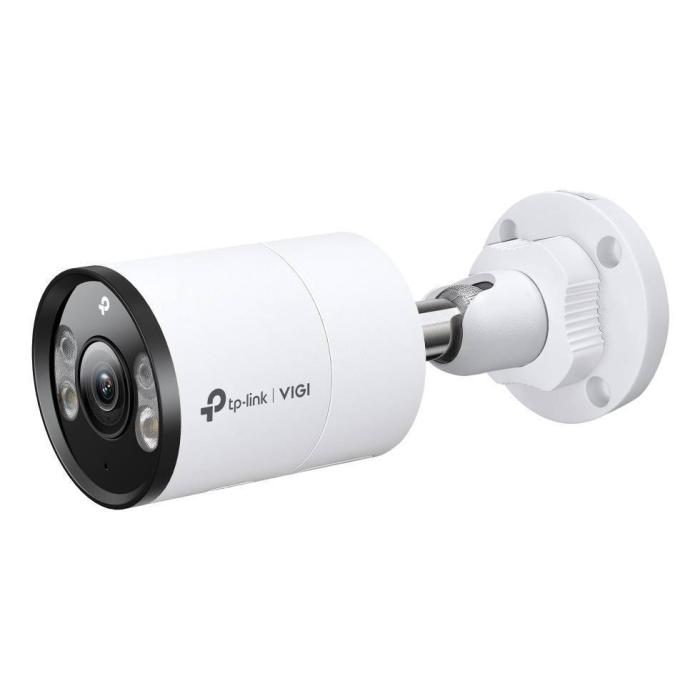

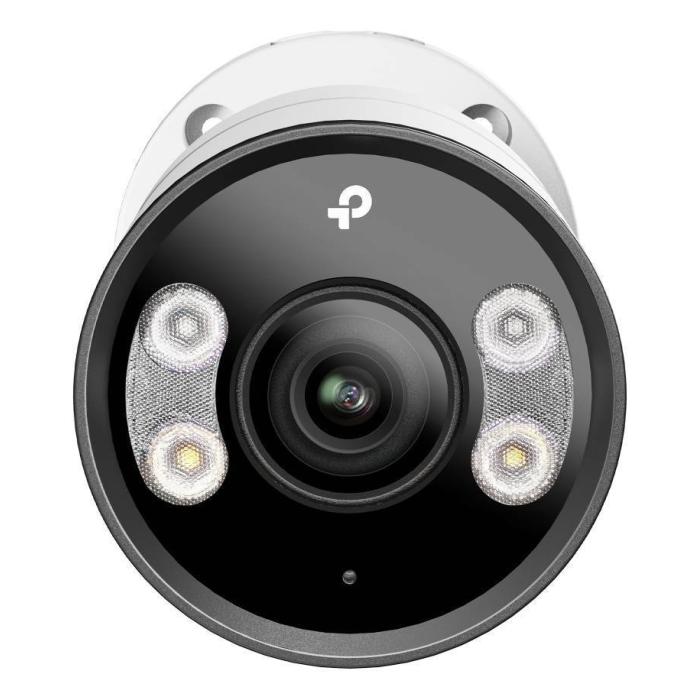

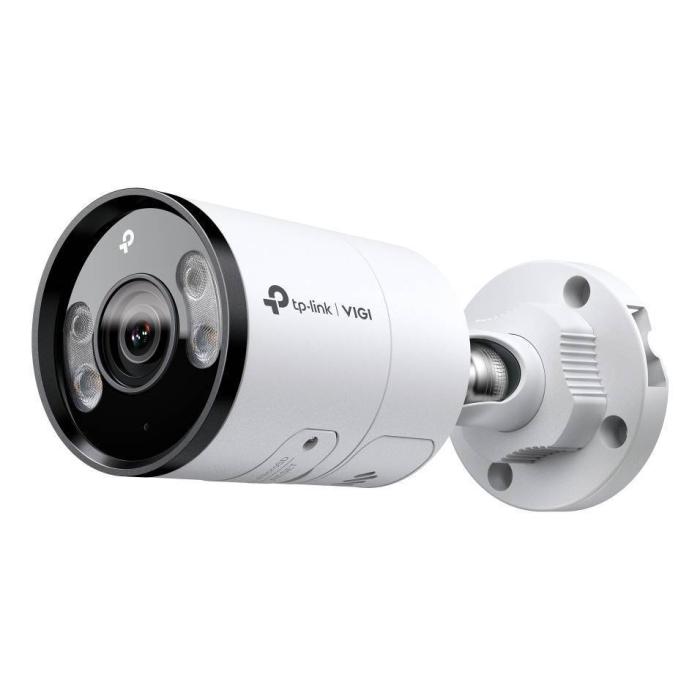

TP-Link INSIGHT S345, IP security camera, Outdoor, Wired, 64 m, 120 dB, Wall
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- Maximum operating distance: 64 m
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Remote viewing: Yes
- Dynamic range: 120 dB
Design
- Form factor: Bullet
- Mounting type: Wall
- Product colour: White
- Housing material: Metal
- Protection features: Waterproof
- International Protection (IP) code: IP67
- Weatherproof: Yes
Camera
- Minimum illumination: 0 lx
- Lens viewing angle, horizontal: 100°
- Lens viewing angle, vertical: 54°
- Lens viewing angle, diagonal: 118°
- Tilt angle range: 0 - 90°
- Camera shutter speed: 1/3 to 1/10000
Image sensor
- Progressive scan: Yes
- Sensor type: CMOS
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Lens system
- Detect distance: 64 m
- Observe distance: 27 m
- Recognize distance: 13 m
- Maximum aperture number: 1.6
- Identify distance: 6 m
- Fixed focal length: 2.8 mm
Night vision
- Night vision: Yes
- LED type: IR/White
Video
- Maximum resolution: 2688 x 1520 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264, H.264+, H.265, H.265+
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
- Video recording: Yes
- Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
- Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Bit rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Digital Wide Dynamic Range (DWDR): Yes
Audio
- Built-in speaker(s): Yes
- Audio system: 2-way
- Audio input channels: 1.0 channels
- Audio output channels: 1.0 channels
- Audio formats supported: G.711 A-law
- Sample rate: 8 kHz
- Built-in microphone: Yes
- Number of microphones: 1
- Bit rate range: 0 - 64 Kbit/s
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
- Wi-Fi: No
- Bluetooth: No
- Live view: Yes
Storage
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 512 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Security
- Built-in siren: Yes
- Password protection: Yes
- Video motion detection: Yes
- IP address filtering: Yes
- HTTPS encryption: Yes
- Alert notification type: Push notification
- Motion sensor: Yes
- Mirror: Yes
- Human and vehicle targets classification: Yes
- Digest authentication: Yes
Management features
- Web-based management: Yes
- Web browser: Yes
- Cloud-managed: Yes
- Reset button: Yes
Power
- Power source type: DC, PoE
- Power consumption (Power over Ethernet (PoE)): 10.7 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 74 mm
- Height: 74 mm
- Length: 184 mm
- Weight: 525 g

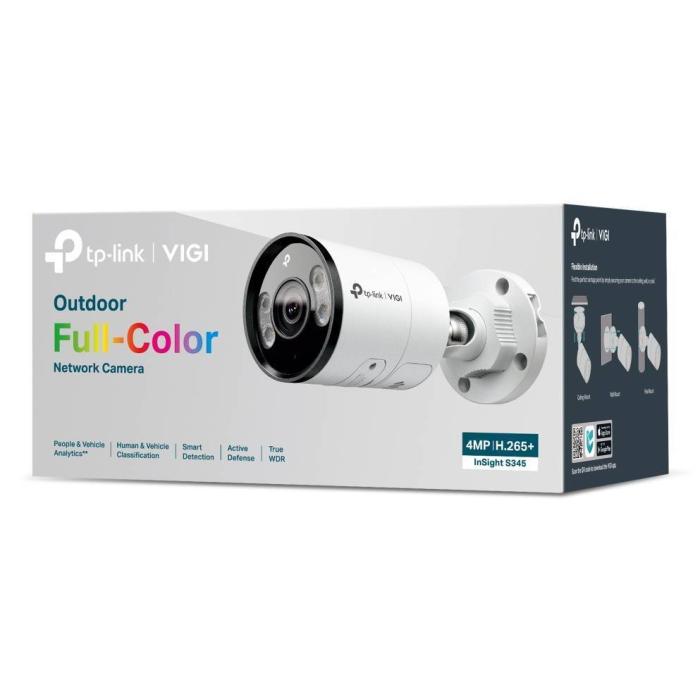

Packaging content
- Number of cameras: 1
- Mounting kit: Yes
- Screws included: Yes
- Drilling template included: Yes
- Manual: Yes
