Description

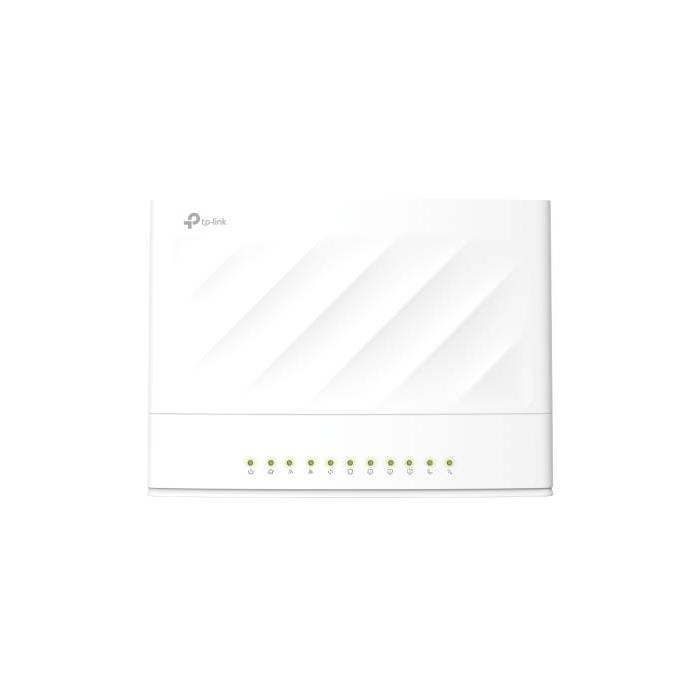

The TP-Link EX520v router in white is a dual-band device that operates on 2.4 GHz and 5 GHz with Wi-Fi 6 (802.11ax) standard and is also compatible with 802.11a, 802.11b, 802.11g, Wi-Fi 4 and Wi-Fi 5. It reaches a maximum WLAN transfer rate of 3000 Mbit/s, split into 574 Mbit/s on the first band and 2402 Mbit/s on the second, with 1024-QAM and OFDMA modulation. Its WAN connection is made via Ethernet through an RJ-45 port. It includes an FTP server, dynamic DNS and VLAN-based SSID assignment, as well as VPN support with PPTP, IPSec and OpenVPN. It allows you to create a guest network on 2.4 GHz and another on 5 GHz. Its dimensions are 199 x 67.5 x 148.6 mm (width x height x depth), a compact format to place next to the modem.
Specifications
WAN connection
- Ethernet WAN: Yes
- DSL WAN: No
- SIM card slot: No
- 3G/4G USB modem compatibility: No
- WAN connection type: RJ-45
Wireless LAN features
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (max): 3000 Mbit/s
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (first band): 574 Mbit/s
- WLAN data transfer rate (second band): 2402 Mbit/s
- Modulation: 1024-QAM, OFDMA
Network
- Ethernet LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Port forwarding: Yes
- Port triggering: Yes
- Automatic channel selection: Yes
- Dynamic DNS (DDNS): Yes
- SSID-based VLAN assignment: Yes
- Number of guest networks (2.4 GHz): 1
- Number of guest networks (5 GHz): 1
- Built-in FTP server: Yes
- VPN support: PPTP, IPSec, OpenVPN
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 3
- USB port: Yes
- RJ-11 ports quantity: 1
- DC-in jack: Yes
Management features
- Quality of Service (QoS) support: Yes
- MU-MIMO technology: Yes
- MIMO: Yes
Security
- Security algorithms: SSID, WPA, WPA2, WPA3
- Guest access: Yes
- Access Control List (ACL): Yes
- Parental control: Yes
- DMZ support: Yes
Protocols
- DHCP client: Yes
- DHCP server: Yes
- Universal Plug and Play (UPnP): Yes
Design
- Product colour: White
- Wall mountable: Yes
- LED indicators: LAN, Power, WAN
- On/off switch: Yes
- Product type: Tabletop router
Certificates
- Certification: CE, DFS
Packaging content
- Cables included: LAN (RJ-45), Phone (RJ-11)
- AC adapter included: Yes
- Quick installation guide: Yes
Antenna
- Antenna design: Internal
- Antennas quantity: 4
Power
- Power source type: DC
- Output voltage: 12 V
- Output current: 2 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 199 mm
- Depth: 148.6 mm
- Height: 67.5 mm
Packaging data
- Package type: Box
