Description

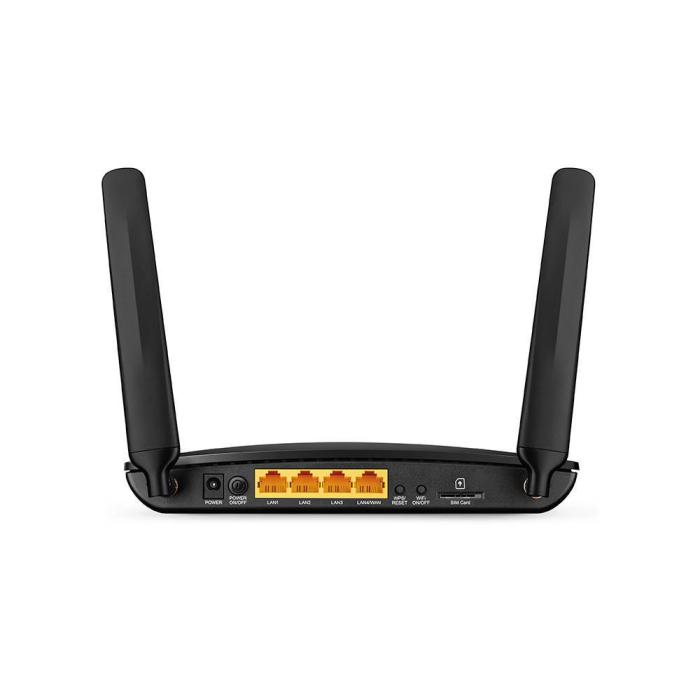

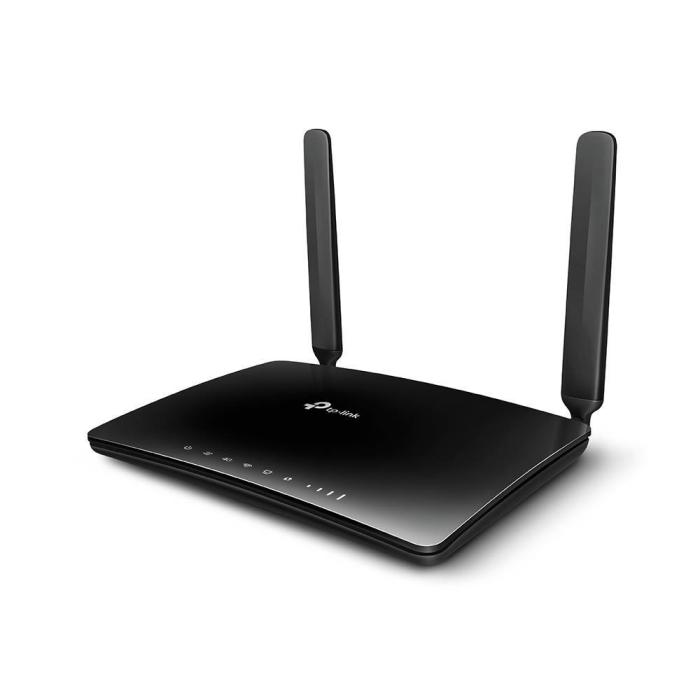

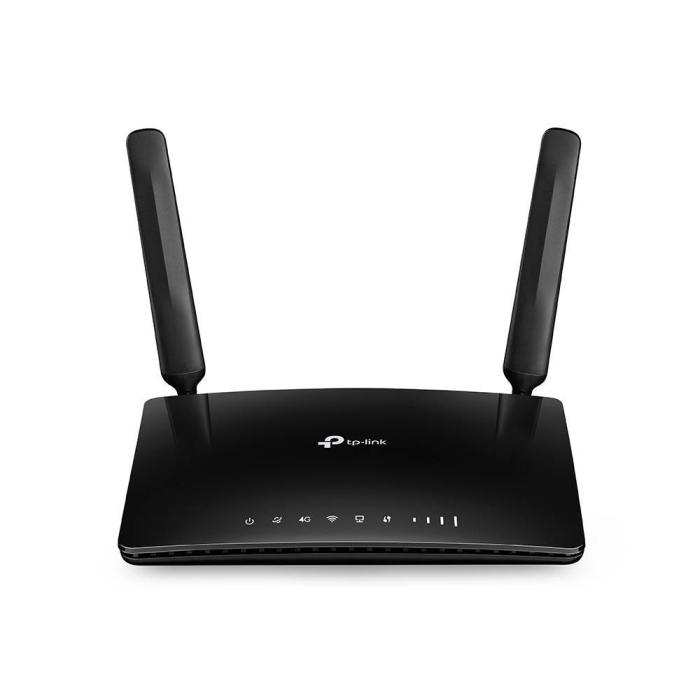

TP-Link Archer AC1200 Wireless Dual Band 4G LTE Router, Wi-Fi 5 (802.11ac), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, 3G, Black, Tabletop router

Specifications

WAN connection


  • Ethernet WAN: Yes
  • DSL WAN: No
  • SIM card slot: Yes
  • 3G/4G USB modem compatibility: No
  • WAN connection type: RJ-45

Wireless LAN features


  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • WLAN data transfer rate (max): 867 Mbit/s
  • Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
  • WLAN data transfer rate (first band): 450 Mbit/s
  • WLAN data transfer rate (second band): 867 Mbit/s

Network


  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Fast Ethernet
  • Ethernet LAN data rates: 10, 100 Mbit/s
  • Cabling technology: 10/100Base-T(X)
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Port forwarding: Yes
  • Dynamic DNS (DDNS): Yes
  • VPN server: PPTP VPN, IPSec VPN , OpenVPN
  • VPN tunnels quantity: 10
  • VPN Passthrough: Yes
  • VPN support: PPTP, L2TP, IPSec
  • Receiver sensitivity: 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -7

Mobile network


  • Mobile network generation: 4G
  • 3G: Yes
  • 4G: Yes
  • 2G standards: Edge, GPRS, GSM
  • 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS
  • 4G standard: LTE
  • GSM bands supported: 850, 900, 1800, 1900 MHz
  • 4G bands supported: 800, 900, 1800, 2100, 2600 MHz
  • SIM card type: MicroSIM
  • 3G bands supported: 900, 2100 MHz

Ports & interfaces


  • Ethernet LAN (RJ-45) ports: 3
  • USB port: No
  • Memory card slot(s): No
  • DC-in jack: Yes

Management features


  • Web-based management: Yes
  • Quality of Service (QoS) support: Yes
  • Reset button: Yes
  • WPS push button: Yes

Security


  • Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
  • Firewall: Yes
  • Firewall security: DoS, SPI Firewall, IP and MAC Address Binding
  • Guest access: Yes
  • Access Control List (ACL): Yes
  • Stateful Packet Inspection (SPI): Yes
  • DoS attack prevention: Yes
  • DMZ support: Yes

Protocols


  • DHCP client: Yes
  • DHCP server: Yes
  • Universal Plug and Play (UPnP): Yes
  • Supported network protocols: IPv4, IPv6

Design


  • Product colour: Black
  • Wall mountable: Yes
  • LED indicators: LAN, Power, Status, WLAN
  • On/off switch: Yes
  • Product type: Tabletop router

Certificates


  • Certification: CE, RoHS

Packaging content


  • Cables included: LAN (RJ-45)
  • AC adapter included: Yes
  • Quick installation guide: Yes

Antenna


  • Antenna design: Internal & external
  • Antennas quantity: 2
  • Detachable antenna(s): Yes
  • Transmit power: CE: <20dBm(2.4GHz), <23dBm(5GHz)

Power


  • Power source type: DC
  • Output voltage: 12 V
  • Output current: 1.5 A

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

System requirements


  • Windows operating systems supported: Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP Home, Windows X
  • Linux operating systems supported: Yes
  • Mac operating systems supported: macOS
  • Mac compatibility: Yes

Weight & dimensions


  • Width: 174 mm
  • Depth: 124.5 mm
  • Height: 33.5 mm

Packaging data


  • Package width: 307 mm
  • Package depth: 223 mm
  • Package height: 70 mm
  • Package weight: 670 g
  • Package type: Box

Logistics data


  • Harmonized System (HS) code: 85176990
