Description

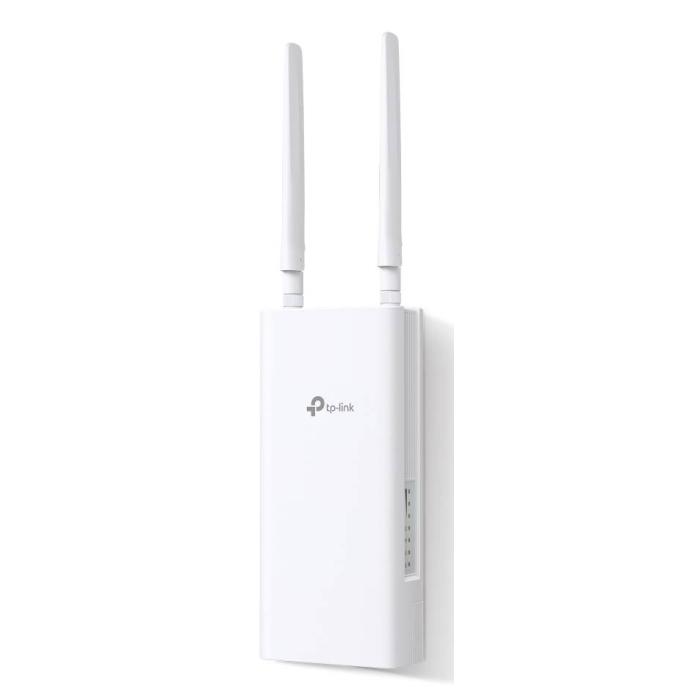

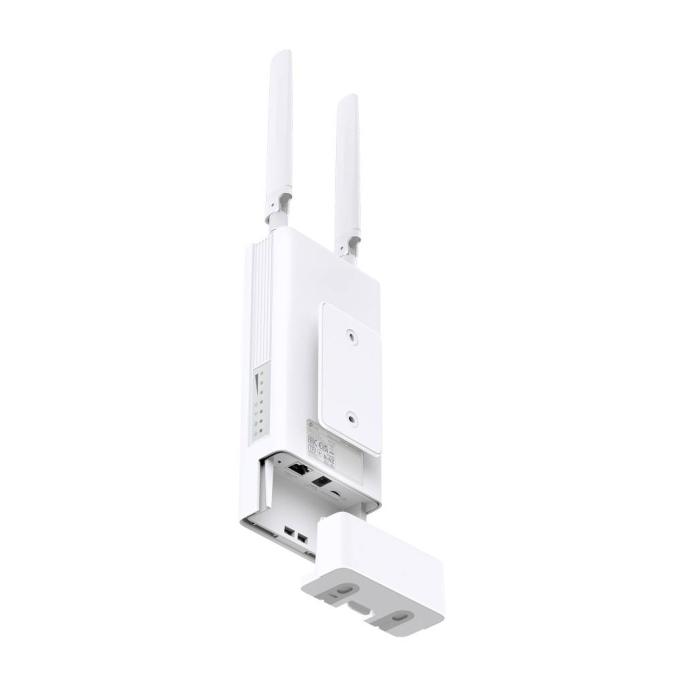

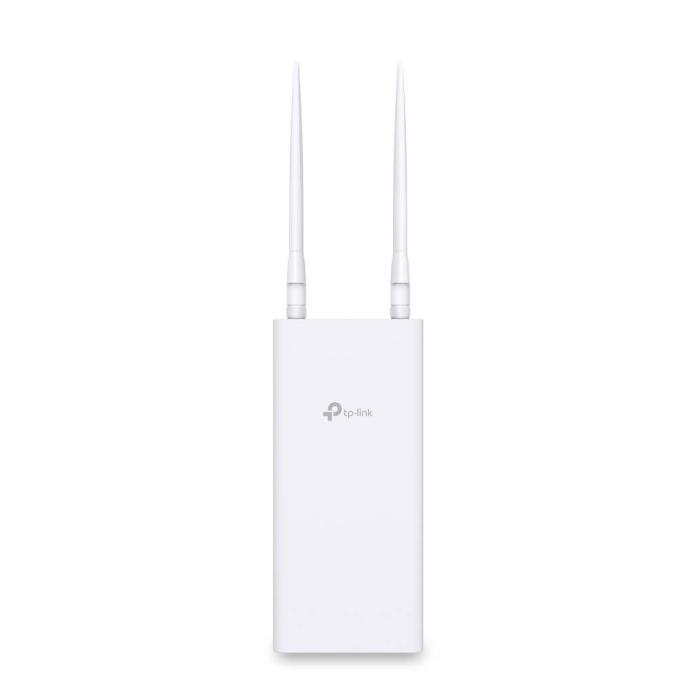

The TP-Link TL-MR100-Outdoor wireless router in white offers 4G connectivity via a SIM card slot and also supports a 3G or 4G USB modem, so you can access the internet without relying on a fixed line. It features an Ethernet and DSL WAN connection through an RJ-45 port, with Fast Ethernet 10/100Base-T(X) and a LAN data transfer rate of 100 Mbit/s. In the wireless section it operates on a single 2.4 GHz band with Wi-Fi 4 (802.11n) standard, compatible with 802.11b and 802.11g, and reaches a WLAN data transfer rate of up to 300 Mbit/s. It includes a wireless radio, dynamic DNS and a port triggering function to manage incoming traffic. Its compact design measures 226.6 x 54.7 x 100 mm (width x height x depth), a shape designed to be installed both indoors and outdoors. The equivalent isotropically radiated power reaches 20 dBmW in 802.11n, which helps to keep the signal stable.
Specifications
WAN connection
- Ethernet WAN: Yes
- DSL WAN: Yes
- SIM card slot: Yes
- 3G/4G USB modem compatibility: Yes
- WAN connection type: RJ-45
Wireless LAN features
- Wi-Fi band: Single-band (2.4 GHz)
- Top Wi-Fi standard: Wi-Fi 4 (802.11n)
- WLAN data transfer rate (max): 300 Mbit/s
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
- Ethernet LAN: Yes
- Ethernet LAN interface type: Fast Ethernet
- Ethernet LAN data rates: 100 Mbit/s
- Cabling technology: 10/100Base-T(X)
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Port forwarding: Yes
- Port triggering: Yes
- Dynamic DNS (DDNS): Yes
- Wireless radio: Yes
- Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n): 20 dBmW
- Receiver sensitivity: 11g 54M: -74 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm
Mobile network
- Mobile network generation: 4G
- 3G: Yes
- 4G: Yes
- 3G standards: HSPA, HSPA+, UMTS
- 4G standard: LTE-TDD & LTE-FDD
- 4G bands supported: 700, 800, 850, 900, 1800, 2100, 2600 MHz
- 3G bands supported: 850, 900, 2100 MHz
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB port: No
- DC-in jack: Yes
Management features
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Wireless statistics: Yes
- Reset button: Yes
Security
- Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK
- Firewall: Yes
- Guest access: Yes
- Stateful Packet Inspection (SPI): Yes
- Schedule access: Yes
- MAC address filtering: Yes
- IP address filtering: Yes
- DMZ support: Yes
Protocols
- DHCP client: Yes
- DHCP server: Yes
- Universal Plug and Play (UPnP): Yes
- Supported network protocols: IPv4, IPv6
Design
- Product colour: White
- Wall mountable: Yes
- International Protection (IP) code: IP65
- On/off switch: Yes
Certificates
- Certification: CE, RoHS
Packaging content
- Cables included: LAN (RJ-45)
- PoE injector included: Yes
- Mounting kit: Yes
- Quick installation guide: Yes
Antenna
- Antenna design: External
- Antennas quantity: 2
Features
- Firmware upgradeable: Yes
Power
- Power source type: DC
- Output voltage: 12 V
- Output current: 1 A
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) voltage: 48 V
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 226.6 mm
- Depth: 100 mm
- Height: 54.7 mm
