Description
Specifications
Features
- 2.4 GHz: No
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 300 Mbit/s
- Maximum data transfer rate (5 GHz): 300 Mbit/s
- Ethernet LAN data rates: 10, 100 Mbit/s
- Throughput data rate: 300 Mbit/s
- Frequency band: 5.15 - 5.85 GHz
- Bandwidth: 5 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11n
- Cabling technology: 10/100Base-T(X)
- Automatic channel selection: Yes
- Automatic channel scanning: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
- Wireless isolation: Yes
- Maximum outdoor range: 15000 m
- Receiver sensitivity: 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12:
Security
- Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
- MAC address filtering: Yes
- IP address filtering: Yes
- Service Set Identifier (SSID) features: SSID broadcast, SSID broadcast on/off
- IGMP snooping: Yes
- Auto Wireless Distribution System (WDS): Yes
Protocols
- Universal Plug and Play (UPnP): Yes
- Management protocols: TDMA
Management features
- Web-based management: Yes
- Syslog: Yes
- Management platform: Pharos Control
- Firmware upgradeable: Yes
Ports & interfaces

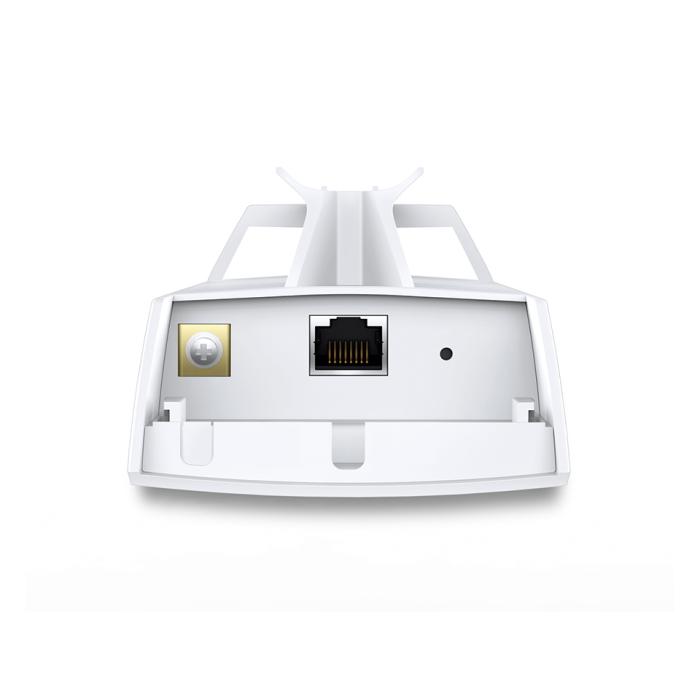

- Ethernet LAN (RJ-45) ports: 1
- WAN connection: Ethernet (RJ-45)
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- DC voltage range: 16 - 27 V
- Power consumption (typical): 13 W
Design
- Placement: Pole, Wall
- Product colour: White
- Housing material: Plastic
- International Protection (IP) code: IP5X
- Reset button: Yes
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 1
- Antenna gain level (max): 13 dBi
Performance
- Built-in processor: Yes
- Processor model: Qualcomm Atheros
- Processor frequency: 560 MHz
- Processor architecture: MIPS 74Kc
- Flash memory: 8 MB
- Internal memory: 64 MB
- Compatible operating systems: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Certificates
- Certification: - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS
Weight & dimensions
- Width: 224.4 mm
- Depth: 79 mm
- Height: 60.3 mm
Packaging data
- Package width: 132 mm
- Package depth: 270 mm
- Package height: 106 mm
- Package weight: 720 g
Packaging content
- Quantity per pack: 1 pc(s)
- PoE adapter included: Yes
- Cables included: AC
- Mounting kit: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
