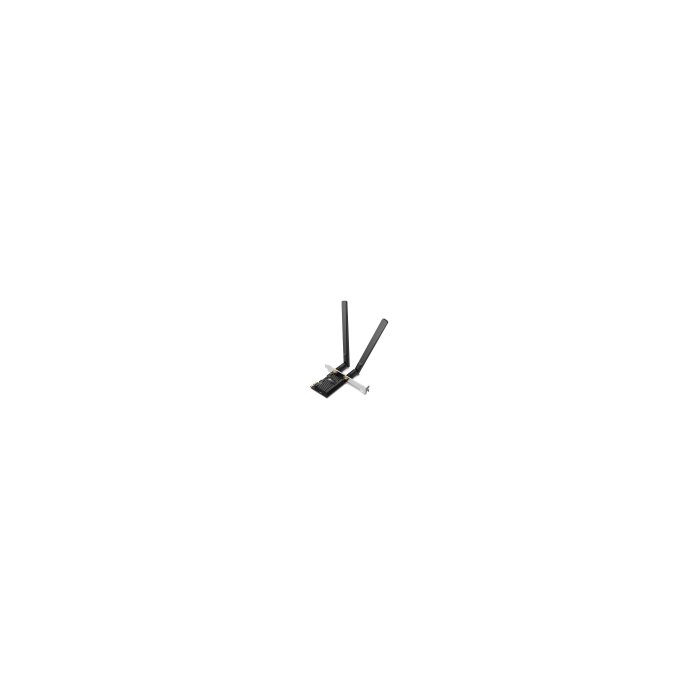

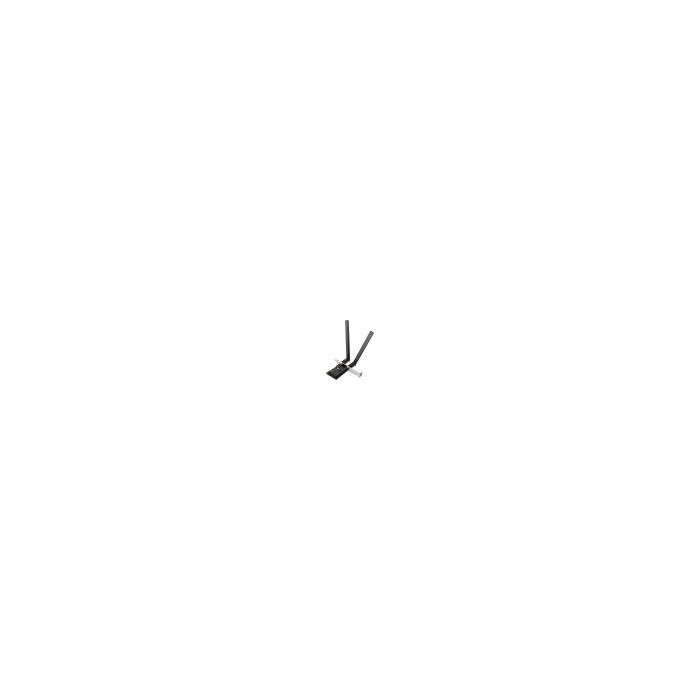

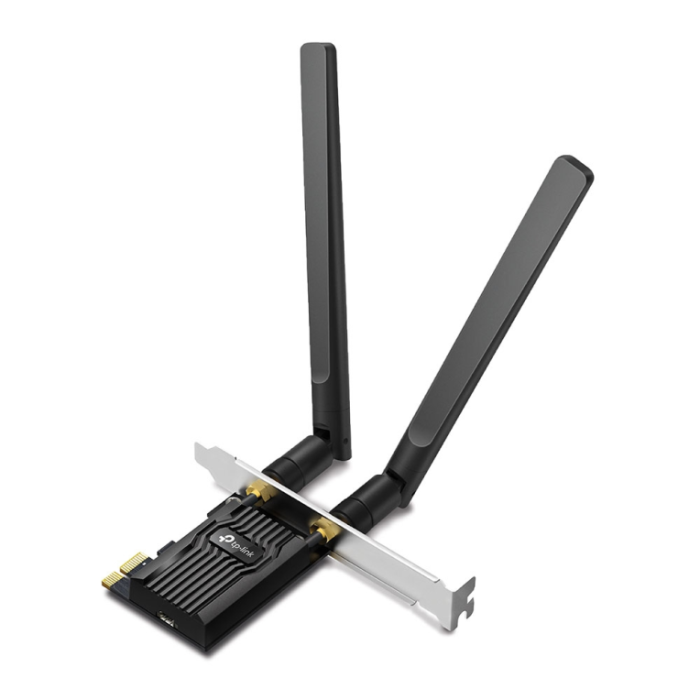

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Product 1 image

Product 2 image

Product 3 image

Product 4 image

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

35.00 €

28.93 € without VAT

Amount

Brand: TP-LINK

SKU: 115374 PRC: 427266 EAN: 4897098688809 PN: ARCHER TX20E

Description

Specifications

Ports & interfaces

Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN / Bluetooth

Network

Maximum data transfer rate: 1800 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported: 11, 54, 300, 574, 867, 1200 Mbit/s
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Bluetooth: Yes
Bluetooth version: 5.2

Design

Component for: PC/Server
Product colour: Black
Internal: Yes
Antenna: Yes
Antenna design: External
Transmitting power (CE): 23 dBm
Transmitting power (FCC): 27 dBm
Plug and Play: Yes
Operating modes: Infrastructure mode

System requirements

Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterpr

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Sustainability

Sustainability compliance: Yes

Weight & dimensions

Width: 120.8 mm
Depth: 78.5 mm
Height: 20.9 mm

Packaging data

Package width: 201.5 mm
Package depth: 152.5 mm
Package height: 41.5 mm
Package weight: 220 g

Packaging content

Mounting brackets included: Yes
Resource CD: Yes
Bluetooth header cable: Yes
Quick installation guide: Yes

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
