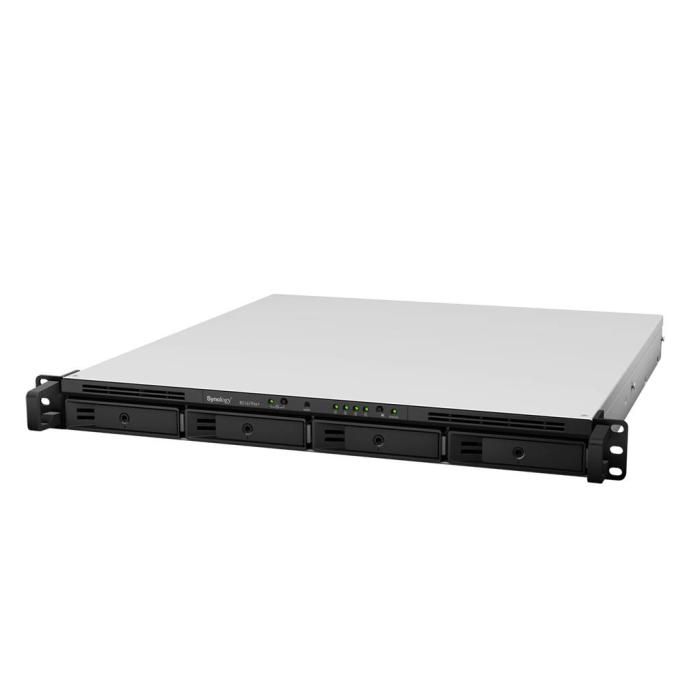

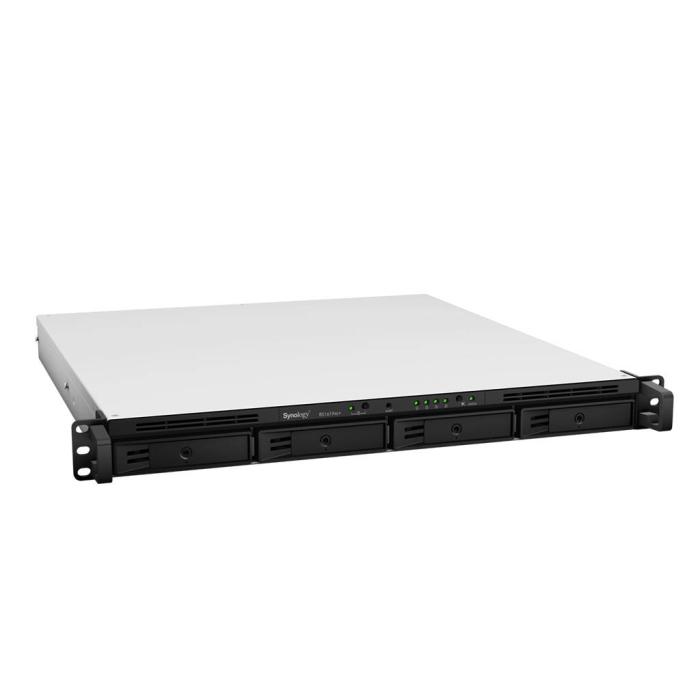

Name: Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Intel® Xeon® D D-1527 8 GB DDR4 0 TB DiskStation Manager Black
Brand: SYNOLOGY
Price: 2156.68 USD
Availability: InStock

Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Intel® Xeon® D D-1527 8 GB DDR4 0 TB DiskStation Manager Black

$2,156.68

$2,156.68 without VAT

Amount

Brand: SYNOLOGY

SKU: 81361 PRC: 238091 EAN: 4711174723065 PN: rs1619xs+

Description

Specifications

Storage

Storage drive capacity: 0 GB
Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5, 3.5"
Number of M.2 (M & B) slots: 2
RAID support: Yes
RAID levels: 0, 1, 5, 6, 10, JBOD
Hot-swap drive bays: Yes
Supported file systems: BTRFS, Fat, HFS+, NTFS, ext3, ext4
Storage drives installed: No
Total installed storage capacity: 0 TB
Number of storage drives supported: 4
Installed storage drive type: No
Supported storage drive types: HDD & SSD

Processor

Processor series: Intel Xeon D-1500
Processor socket: BGA 1667
Scalability: 1S
Stepping: V2
Thermal Design Power (TDP): 35 W
On-board graphics card model: Not available
Maximum internal memory supported by processor: 128 GB
Conflict-Free processor: Yes
Processor manufacturer: Intel
Processor family: Intel® Xeon® D
Processor model: D-1527
Processor frequency: 2.2 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 4
Processor threads: 8
Processor cache: 6 MB
CPU configuration (max): 1
ECC supported by processor: Yes
PCI Express configurations: 1x16, 1x4, 1x8
PCI Express slots version: 2.0, 3.0
Processor cache type: L3
Processor code: SR2DK
Processor codename: Broadwell
Processor lithography: 14 nm
Processor operating modes: 64-bit
Processor package size: 37.5 x 37.5 mm

Memory

Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 64 GB
Memory slots: 4

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Wi-Fi: No
iSCSI support: Yes
Wake-on-LAN ready: Yes
Supported network protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
Link aggregation: Yes

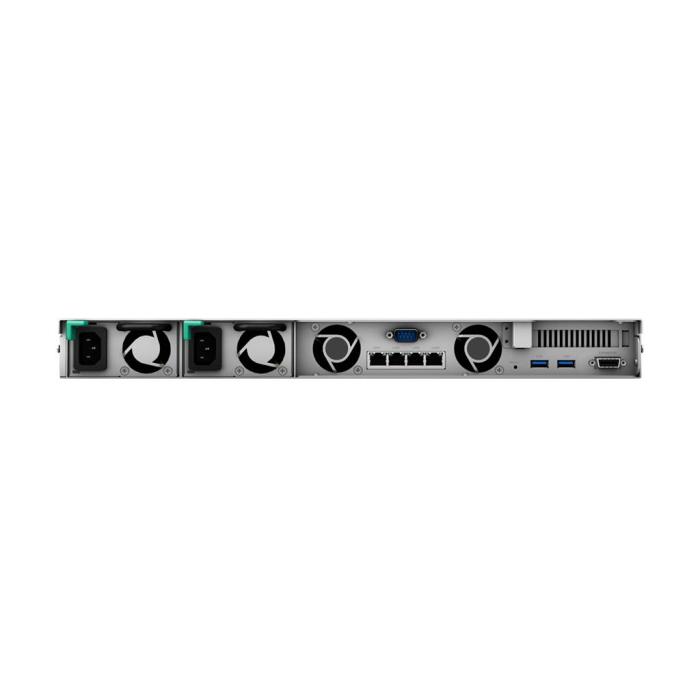

Ports & interfaces

USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 4
Expansion ports quantity: 1
PCI Express x8 (Gen 3.x) slots: 1

Design

Chassis type: Rack (1U)
Cooling type: Active
Product colour: Black
Number of fans: 2 fan(s)
Fan diameter: 4 cm
LED indicators: Alarm, HDD, Power, Status

Performance

Type: NAS
Device class: Small & Medium Business
Backup function: Yes
Backup features: Cloud, iSCSI LUN
Multilingual support: Yes
Noise level: 39.3 dB
Web-based management: Yes
Security algorithms: HTTPS, SSH, SSL/TLS
Access Control List (ACL): Yes
Reset button: Yes
On/off switch: Yes
Browser supported: Chrome, Firefox, Internet Explorer 10+, Safari 10+

Software

Operating system installed: DiskStation Manager
Windows operating systems supported: Windows 10, Windows 7
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported: Windows Server 2016
