Description

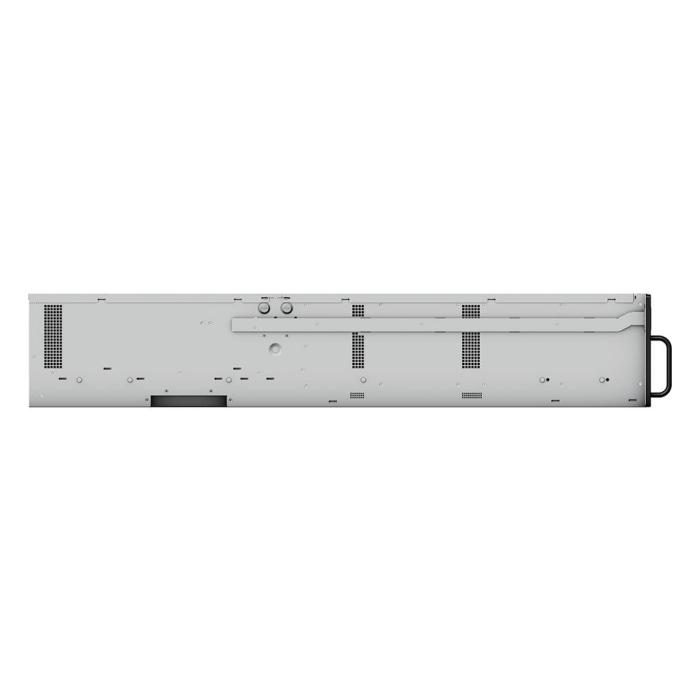

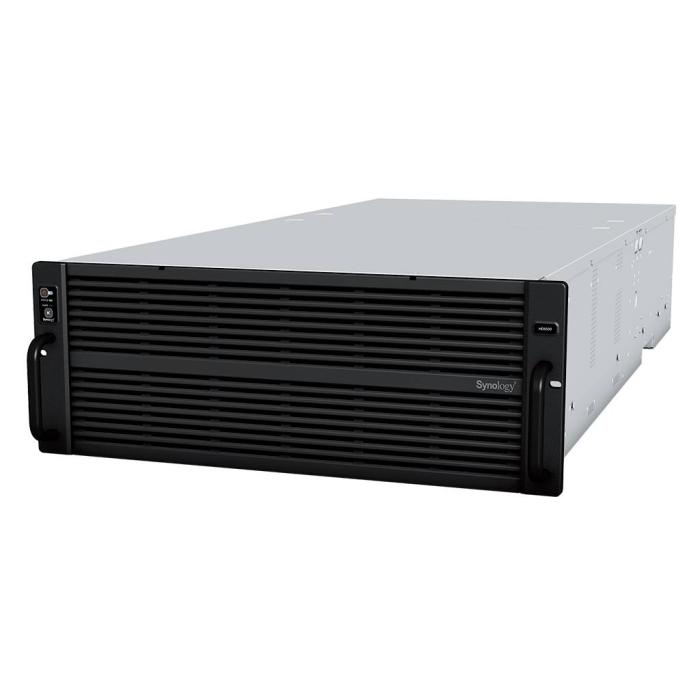

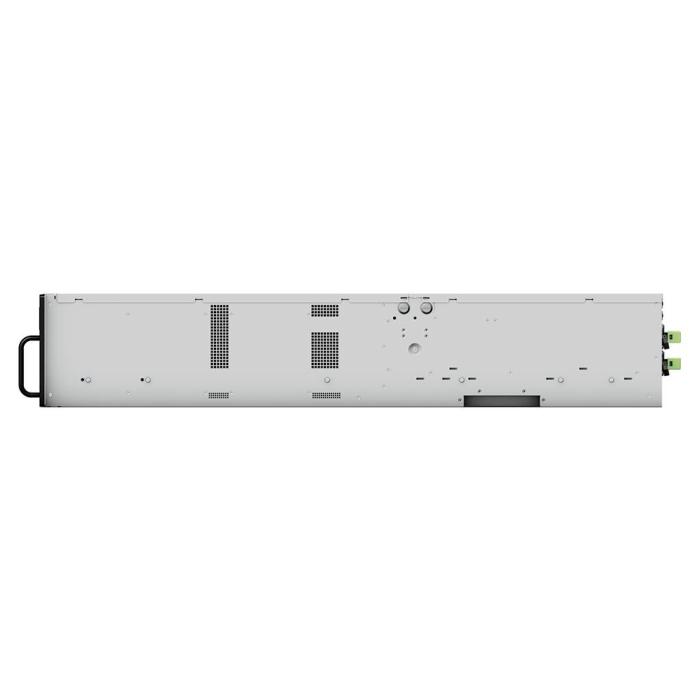

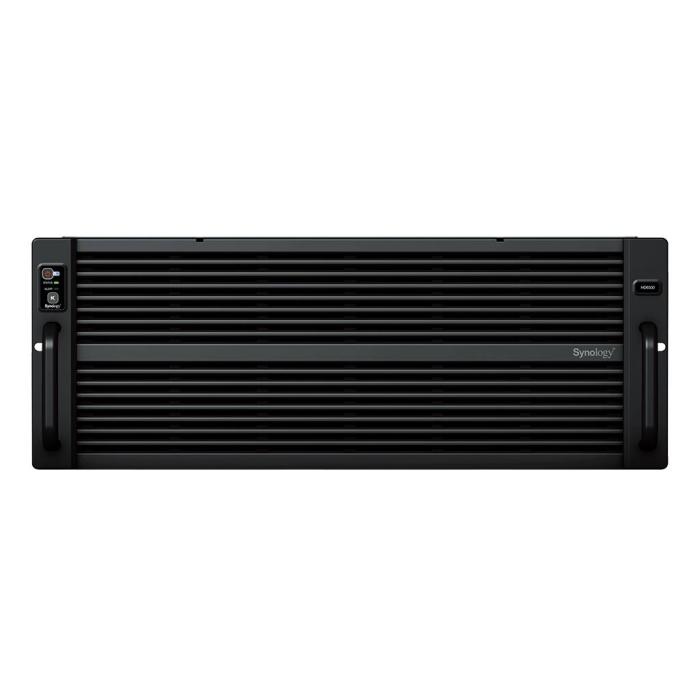

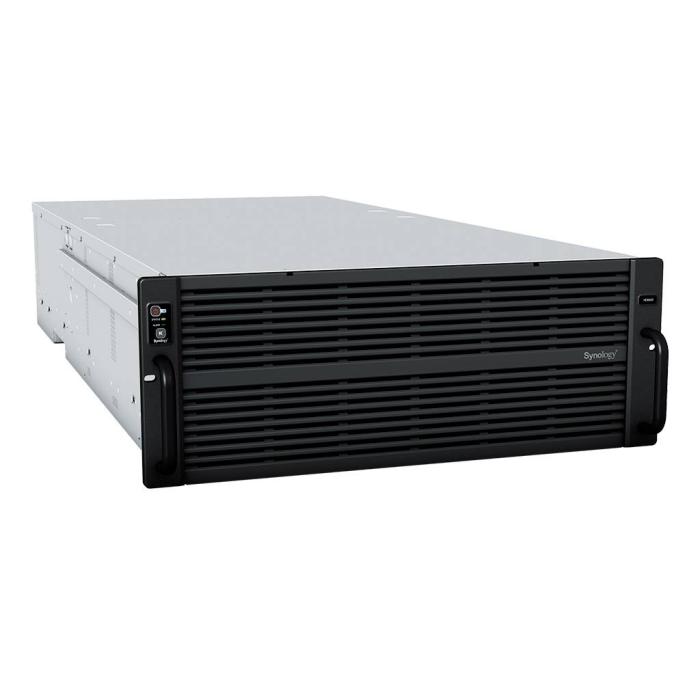

Synology HD6500 4U rack-mount storage server, equipped with an Intel® Xeon® Silver 4210R processor and 64 GB of DDR4 memory, in a vertical tower format for rack mounting. The unit incorporates two 480 GB system SSDs (960 GB in total) and supports up to 60 hot-swap 3.5" bays for HDD or SSD drives with SAS interface. It offers compatibility with RAID levels 0, 1, 5, 6, 10 and JBOD, as well as support for file systems such as BTRFS, ext4, NTFS, exFAT or HFS+. With capacity for two processors, this Synology NAS is designed for environments requiring high storage density and flexibility in data management.
Specifications
Storage
- Storage drive interface: Serial Attached SCSI (SAS)
- Supported storage drive interfaces: Serial Attached SCSI (SAS)
- Storage drive size: 3.5"
- Storage drive sizes supported: 3.5"
- Total installed system drives capacity: 960 GB
- Number of system drives installed: 2
- Number of system drives supported: 2
- System drive type: SSD
- System drive capacity: 480 GB
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Hot-swap drive bays: Yes
- Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Number of storage drives supported: 60
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Intel
- Processor family: Intel Xeon Silver
- Processor model: 4210R
- Processor frequency: 2.4 GHz
- Processor boost frequency: 3.2 GHz
- Processor cores: 10
- Processor threads: 20
- Processor cache: 13.75 MB
- Number of processors supported: 2
Memory
- Internal memory: 64 GB
- Internal memory type: DDR4
- Maximum RAM supported: 512 GB
- Memory form factor: RDIMM
- ECC: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 1000, 10000 Mbit/s
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)

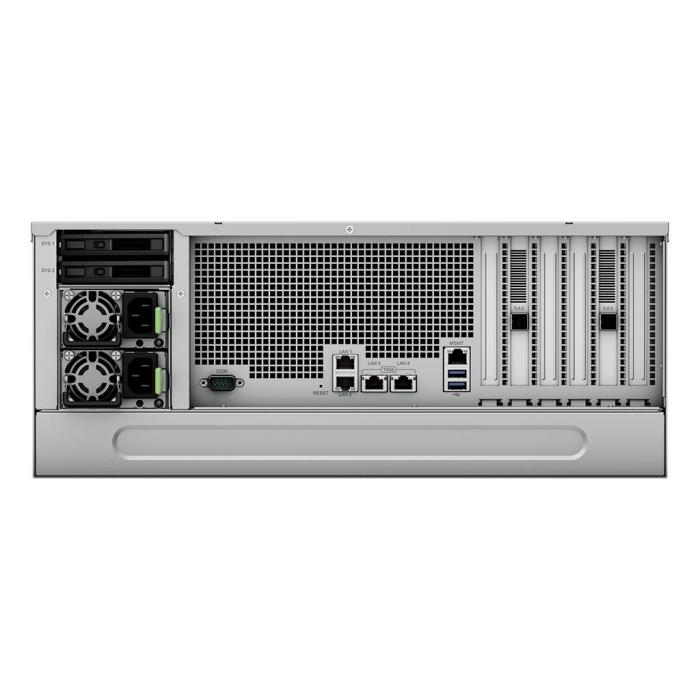

Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 5
- External mini-SAS ports: 2
- PCI Express x8 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 2
Design
- Chassis type: Rack (4U)
- Cooling type: Active
- Product colour: Black
- Number of fans: 4 fan(s)
- Fan diameter: 8 cm
- LED indicators: Yes
Performance
- Type: Storage server
- Device class: Large Enterprise Business
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Multilingual support: Yes
- Number of users: 16000 user(s)
- Web-based management: Yes
- Share folder access right management: Yes
- Security algorithms: HTTPS, SSH, SSL/TLS
- Access Control List (ACL): Yes
- Built-in FTP server: Yes
- Remotely operated: Yes
Power
- Power supply location: Built-in
- Number of power supply units: 2
- Redundant power supply (RPS) support: Yes
- AC input voltage: 200 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 438 mm
- Depth: 985 mm
- Height: 176 mm
- Weight: 37.9 kg
Processor special features
- Embedded options available: Yes
- Enhanced Intel SpeedStep Technology: Yes
- Execute Disable Bit: Yes
- Intel 64: Yes
- Intel Trusted Execution Technology: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Operating relative humidity (H-H): 8 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 5000 m
