Description

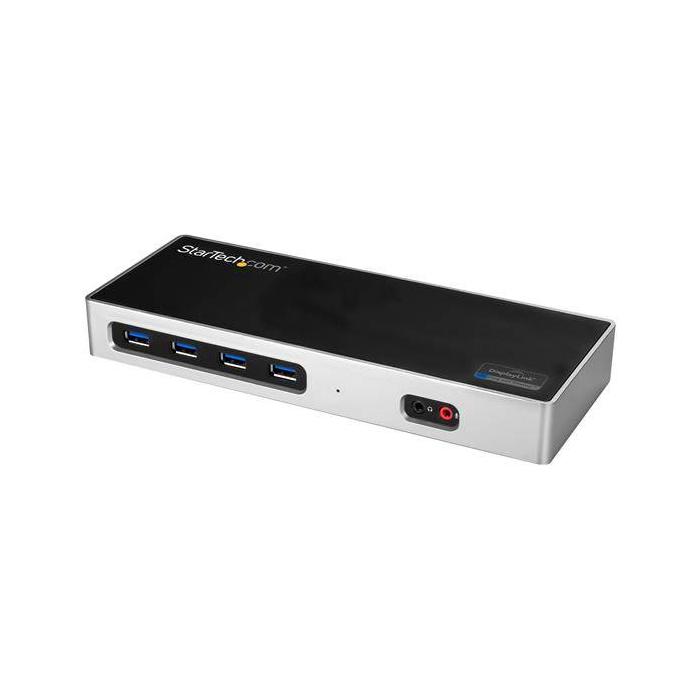

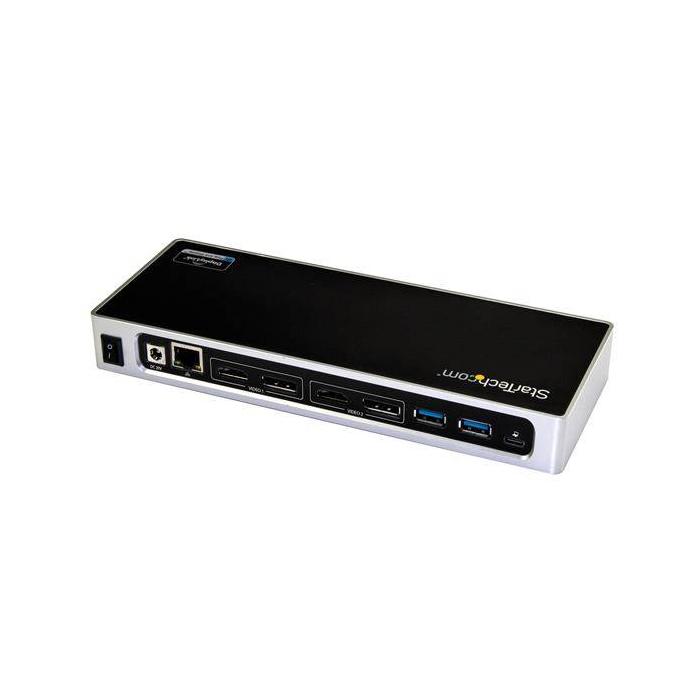

StarTech.com USB-C u0026 USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.1 Gen 1 - Mac/Windows, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Black, Silver

Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
  • HDMI ports quantity: 2
  • DisplayPorts quantity: 2
  • Microphone in: Yes
  • Combo headphone/mic port: No
  • Headphone outputs: 1
  • Headphone connectivity: 3.5 mm
  • DC-in jack: Yes

Network


  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • Full duplex: Yes
  • 10G support: No

Performance


  • Card reader integrated: No
  • Data transfer rate: 5 Gbit/s
  • Maximum digital resolution: 4096 x 2160 pixels
  • Number of displays supported: 2
  • Product colour: Black, Silver
  • On/off switch: Yes
  • LED indicators: Power
  • UASP support: Yes
  • Housing material: Aluminium, Plastic
  • Brand compatibility: Any brand
  • Certification: CE, FCC, REACH

Power


  • Power source type: AC
  • AC input voltage: 100 - 240 V
  • Input current: 1 A
  • Output voltage: 20 V
  • Output current: 2 A
  • Power consumption (typical): 40 W
  • Power plug type: Type N
  • Compatible power plug types: AU, EU, JP, UK, US

Software


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Mac compatibility: Yes
  • Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%

Weight & dimensions


  • Width: 87 mm
  • Depth: 226 mm
  • Height: 28 mm
  • Weight: 301 g

Packaging data


  • Package width: 130 mm
  • Package depth: 318 mm
  • Package height: 52 mm
  • Package weight: 900 g

Packaging content


  • Cables included: USB Type-A to USB Type-C, USB Type-C
  • AC adapter included: Yes
  • Quick start guide: Yes

Technical details


  • Compliance certificates: RoHS

Logistics data


  • Products per master (outer) case: 10 pc(s)
  • Master (outer) case width: 325 mm
  • Master (outer) case length: 325 mm
  • Master (outer) case height: 305 mm
  • Harmonized System (HS) code: 84733020

Other features


  • Cable length: 0.152 m
  • Chipset: DisplayLink - DL-6950, VIA/VLI - VL813
  • Number of microphone inputs: 1
  • USB data transfer rates: 12, 480, 5000 Mbit/s
