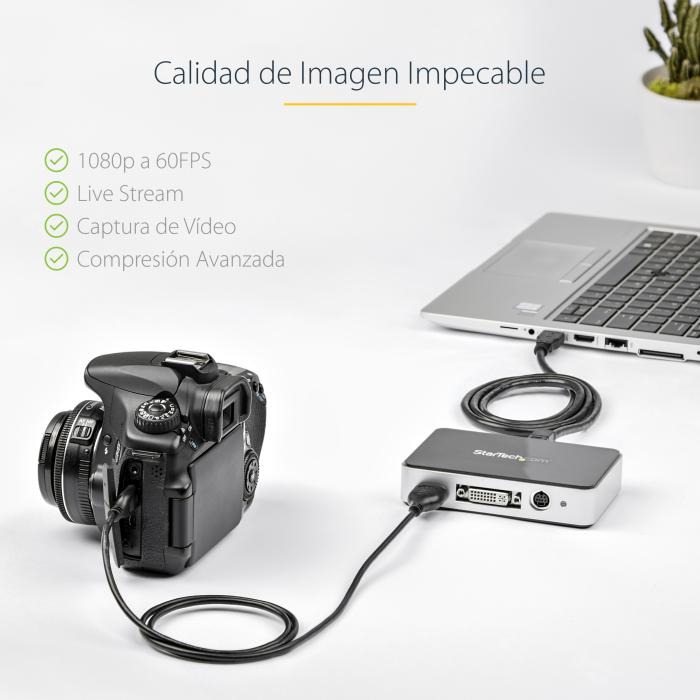

StarTech.com USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps - TAA

$184.72
$184.72 without VAT

More info

Brand: STARTECH.COM
SKU: 73117 PRC: 46862 EAN: 65030855952 PN: USB3HDCAP

Description

StarTech.com USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps - TAA, USB 3.2 Gen 1 (3.1 Gen 1), 1920 x 1080 pixels, Mstar MST3363CNK-170, 2242857 h, 4:3, 16:9, CE, FCC, REACH

Specifications

Performance

  • Internal: No

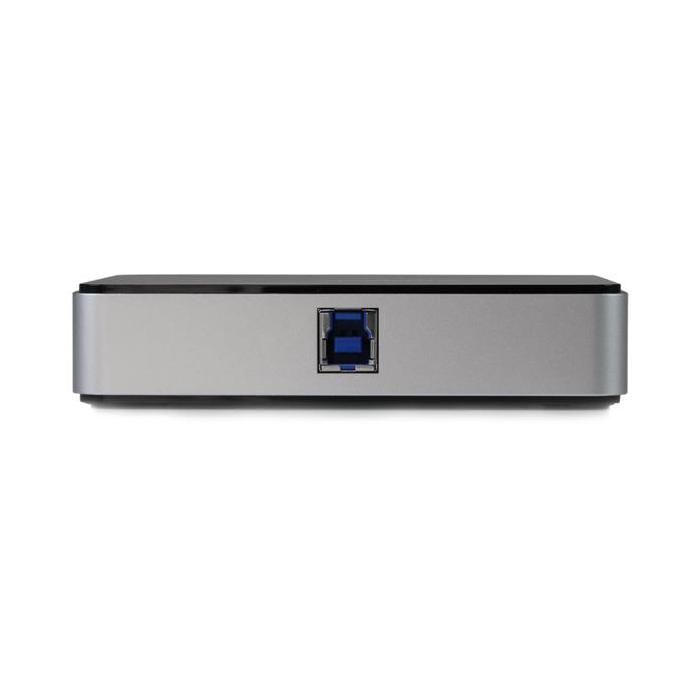

  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1)
  • Video capture resolution (max): 1920 x 1080 pixels
  • Chipset: Mstar MST3363CNK-170
  • Mean time between failures (MTBF): 2242857 h
  • Supported aspect ratios: 4:3, 16:9
  • Certification: CE, FCC, REACH

Video

  • Analog signal format system: NTSC, PAL, PAL 60, PAL M
  • Maximum frame rate: 60 fps
  • Supported video modes: 1080i, 1080p, 480i, 480p, 576i, 576p, 720p

Audio

  • Audio support: Yes

File formats

  • Video compression formats: H.264, MPEG4

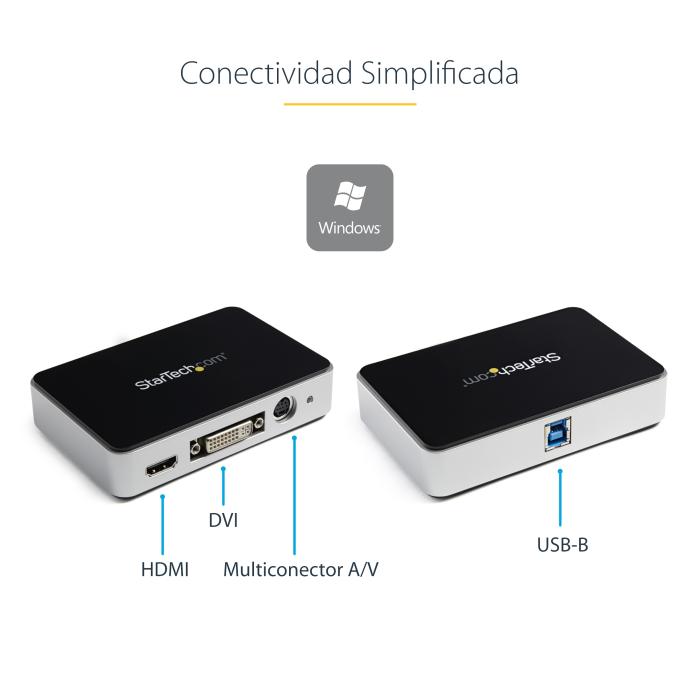

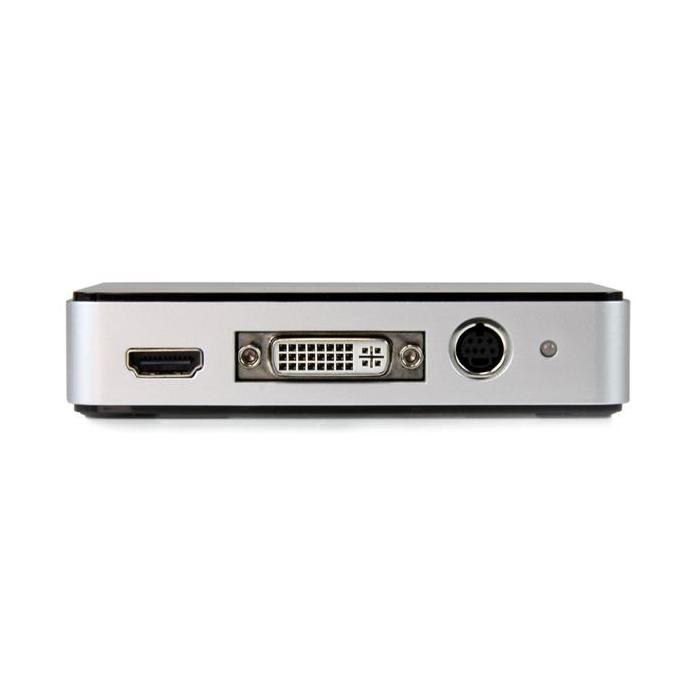

Ports & interfaces

  • HDMI ports quantity: 1
  • S-Video inputs quantity: 1
  • DVI-I ports quantity: 1

Software

  • Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho

Operational conditions

  • Operating temperature (T-T): 0 - 35 °C
  • Storage temperature (T-T): -5 - 40 °C
  • Operating relative humidity (H-H): 20 - 80%

Technical details

  • Compliance certificates: RoHS

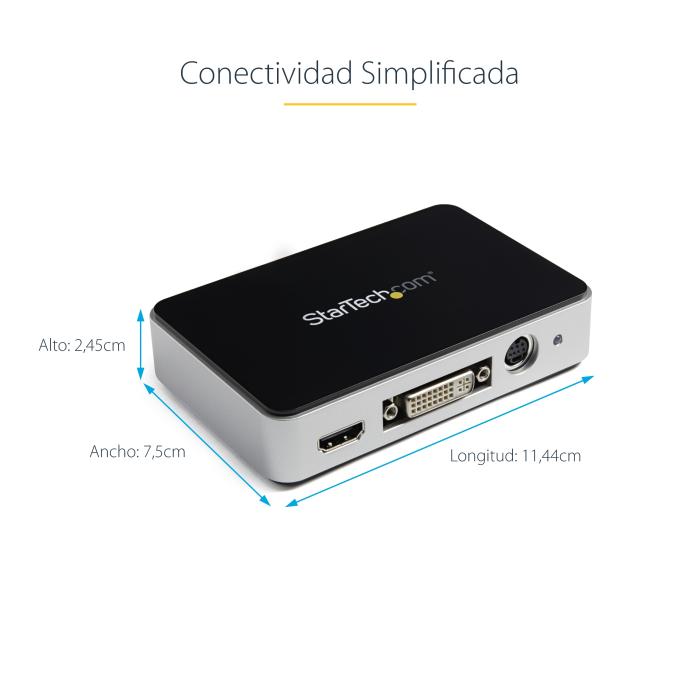

Weight & dimensions

  • Width: 75.5 mm
  • Depth: 114.4 mm
  • Height: 24.5 mm
  • Weight: 104 g

Packaging data

  • Package weight: 400 g
  • Package height: 53 mm
  • Package width: 150 mm
  • Package depth: 215 mm

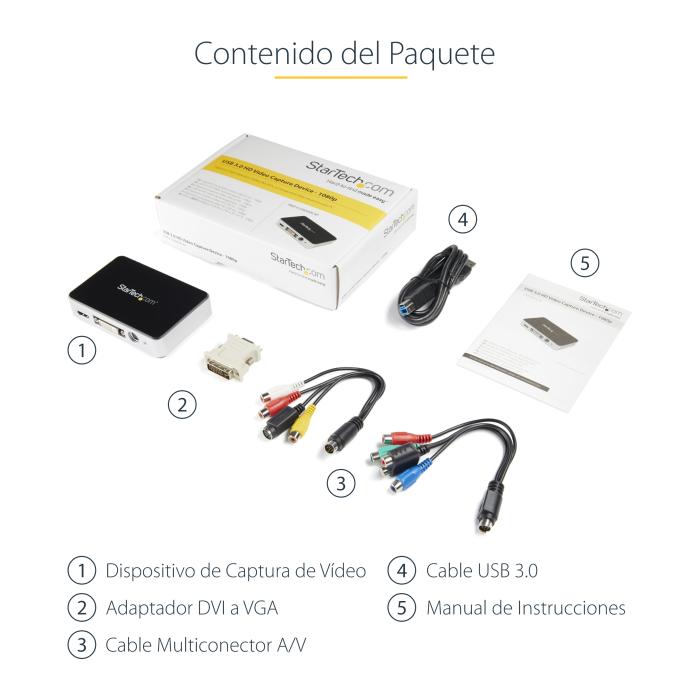

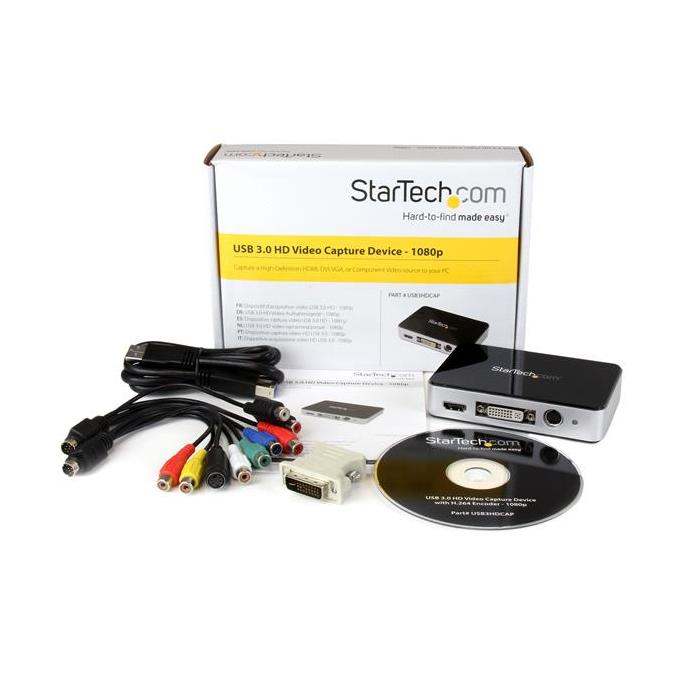

Packaging content

  • Interface adapters included: DVI-I male - VGA female
  • Cables included: AV, USB
  • Manual: Yes

Logistics data

  • Harmonized System (HS) code: 85176990
