StarTech.com Thunderbolt 5 Universal Docking Station for Mac & Windows with Quad Monitors, 140W Power Delivery, 120Gbps Bandwidth Boost, 2.5Gb Ethernet, USB-C & USB-A Ports
More info
Brand: STARTECH.COM
387.35 €
320.13 €
without VAT
incl. 21 % VAT
Stock available: 6 units.
Get it
on the
October 5
/
October 6
SKU:
134074
PRC:
676580
EAN:
65030921879
PN:
206UE-TB5USB4DOCK
Description

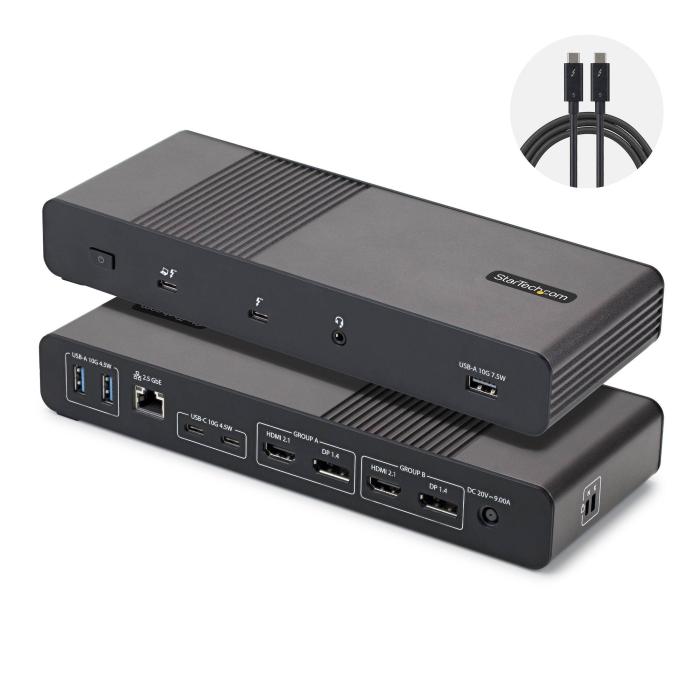

StarTech.com 206UE-TB5USB4DOCK laptop dock and port replicator with Thunderbolt 5 host interface, black and grey colour and data transfer rate of 80 Gbit/s. It features 1 Thunderbolt 5 port, 3 USB 3.2 Gen 2 Type-A ports and 2 USB 3.2 Gen 2 Type-C ports. It offers 2 HDMI ports with maximum digital resolution of 3840 x 2160 pixels, HD 4K DCI type and maximum refresh rate of 240 Hz, with support for 4 displays. It includes 1 RJ-45 Ethernet LAN port with speeds of 10 / 100 / 1000 / 2500 Mbit/s and USB Power Delivery of up to 140 W. Its chipset integrates Intel JHL9480 (Barlow Ridge), Synaptics VMM6210, Infineon CYPM1322 and VIA Labs VL822. It operates with an output voltage of 20 V and an output current of 9 A, and features a Nano and Kensington cable lock slot type. It measures 92 x 353 x 243 mm (width x height x depth) and weighs 730 g.
Specifications

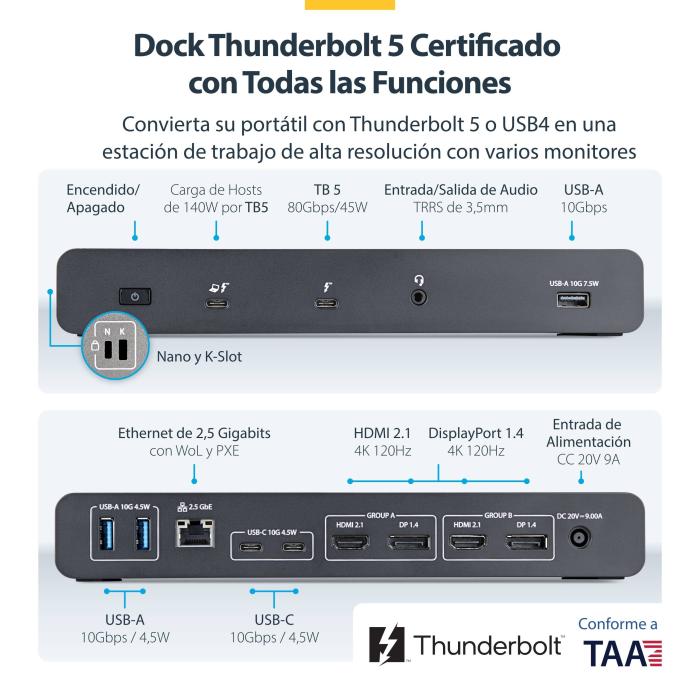

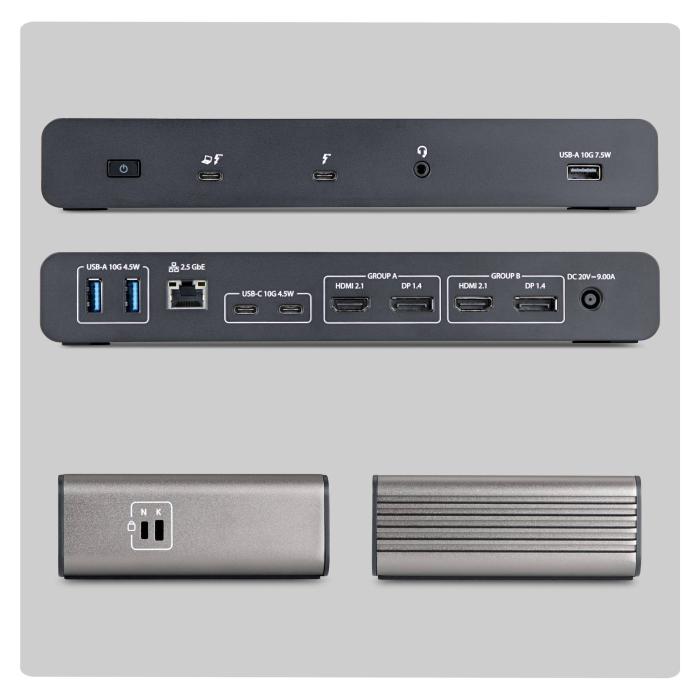

Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

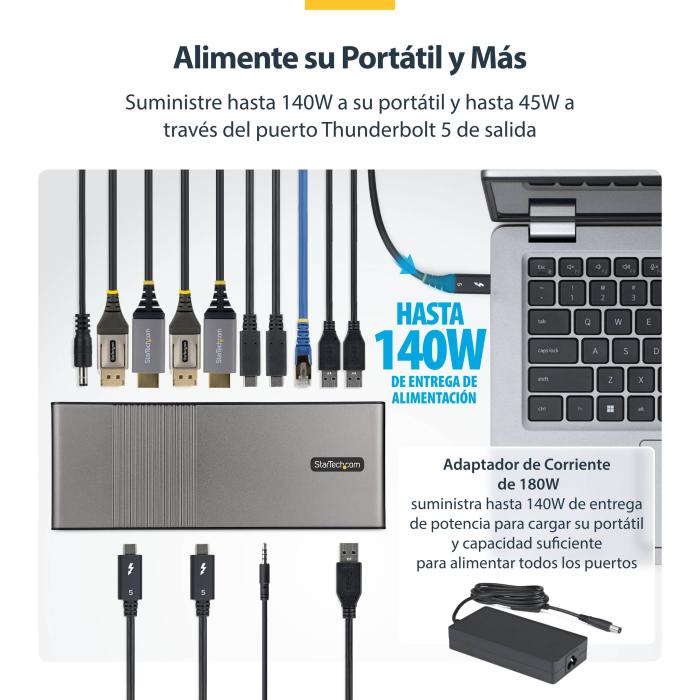

- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 140 W
- HDMI ports quantity: 2
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Thunderbolt 5 ports quantity: 1
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
- DC-in jack: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Wake-on-LAN ready: Yes
- Full duplex: Yes
Performance
- Card reader integrated: No
- Data transfer rate: 80 Gbit/s

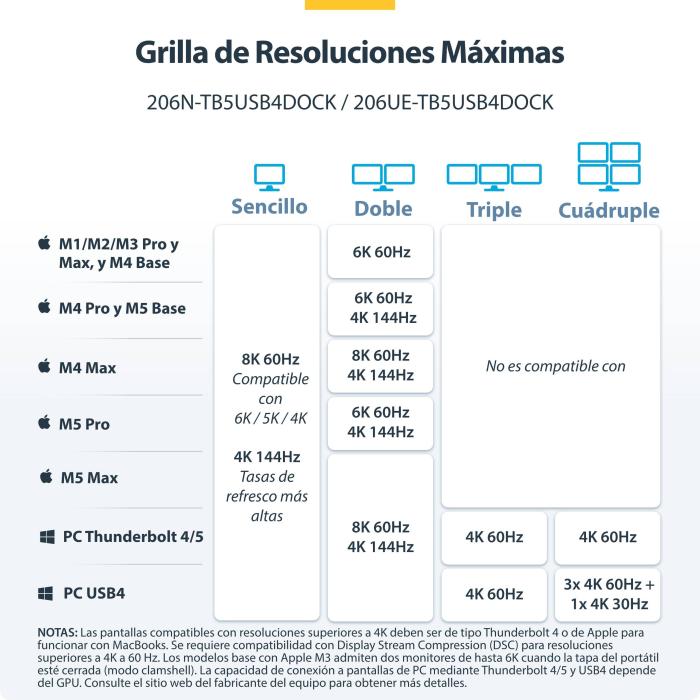

- HD type: 4K DCI
- Maximum digital resolution: 3840 x 2160 pixels

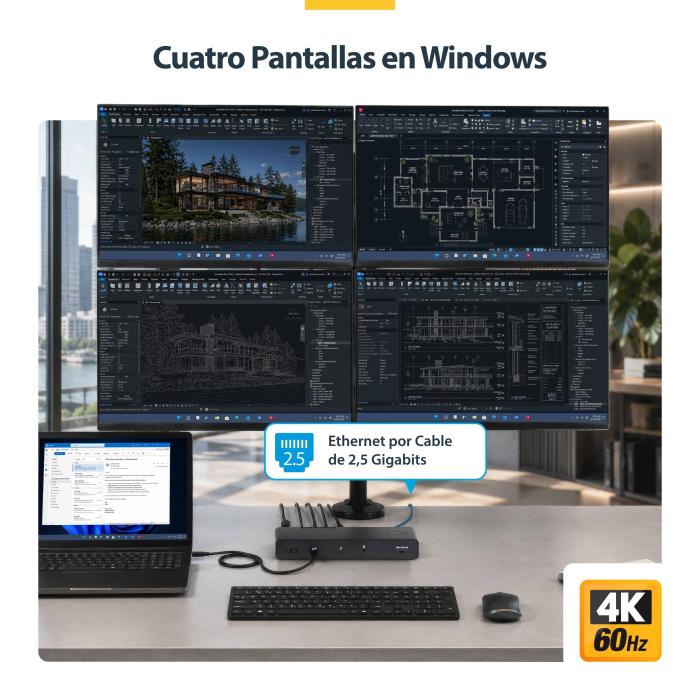

- Number of displays supported: 4
- Maximum refresh rate: 240 Hz

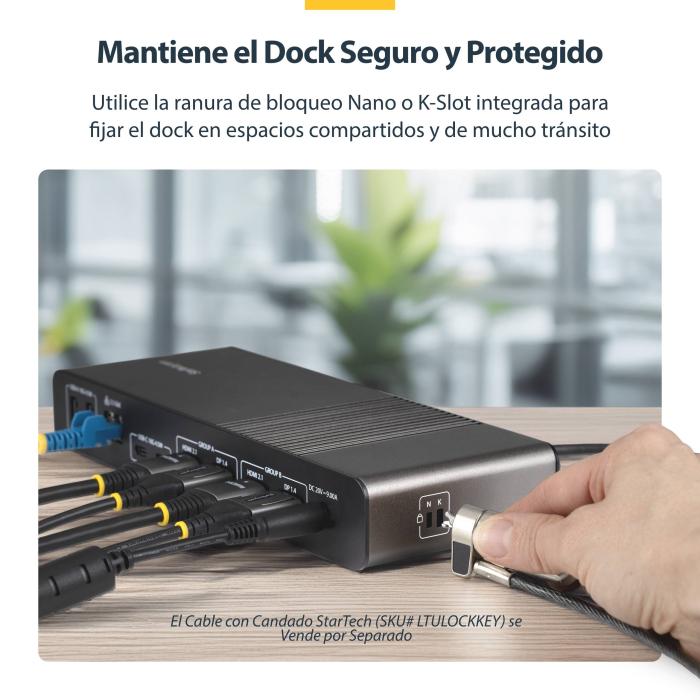

- Cable lock slot: Yes
- Cable lock slot type: Nano, Kensington
- Product colour: Black, Grey
- On/off switch: Yes
- LED indicators: LAN, Power, Link, Activity
- UASP support: Yes
- Housing material: Plastic
Power
- Output voltage: 20 V
- Output current: 9 A
- Power consumption (max): 180 W
- Compatible power plug types: UK, EU
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 92 mm
- Depth: 243 mm
- Height: 353 mm
- Weight: 730 g
Packaging data
- Package width: 262 mm
- Package depth: 169 mm
- Package height: 90 mm
- Package weight: 1.1 kg

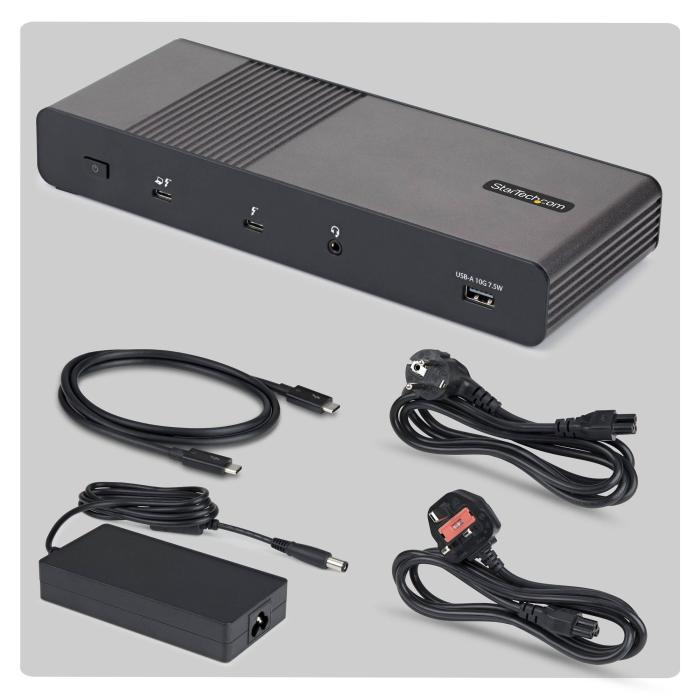

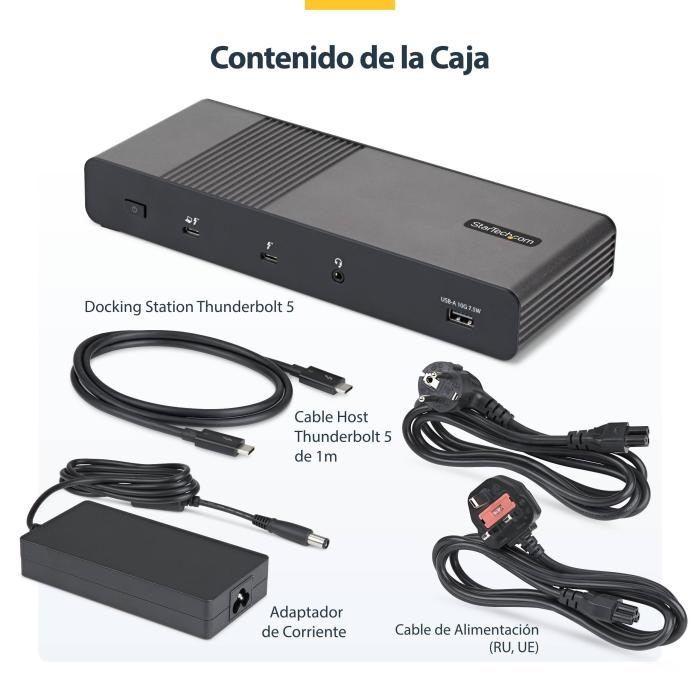

Packaging content
- Cables included: Thunderbolt
- AC adapter included: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Products per master (outer) case: 6 pc(s)
- Master (outer) case width: 395 mm
- Master (outer) case length: 315 mm
- Master (outer) case height: 300 mm
Other features
- Chipset: Intel - JHL9480 (Barlow Ridge), Synaptics - VMM6210, Synaptics - VMM6210, Infineon - CYPM1322, VIA Labs - VL822, VIA Labs - VL82
