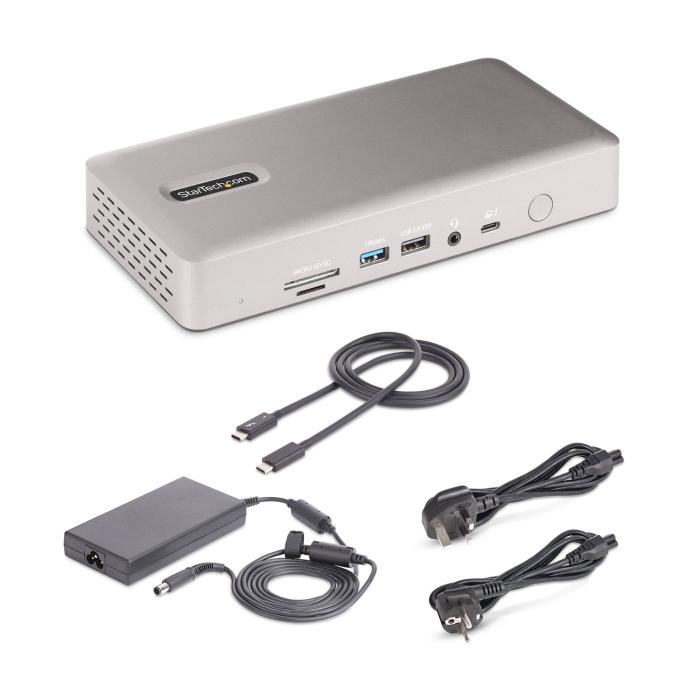

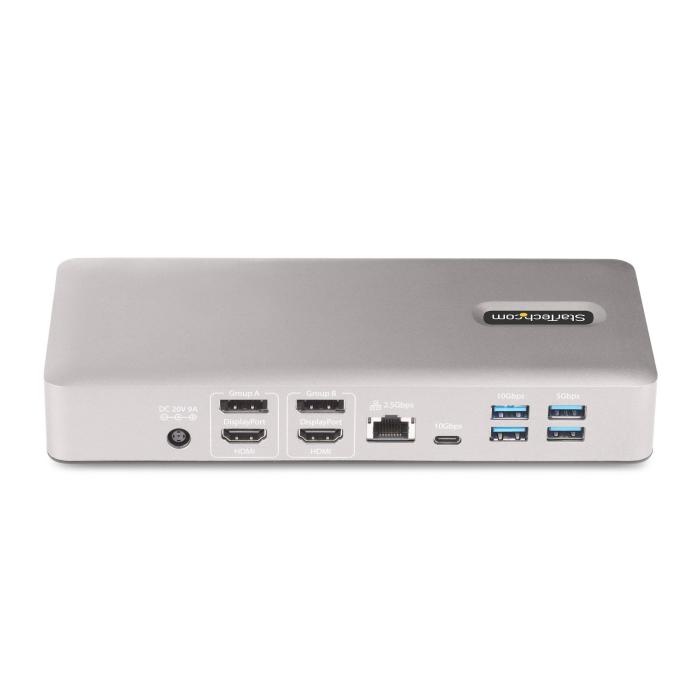

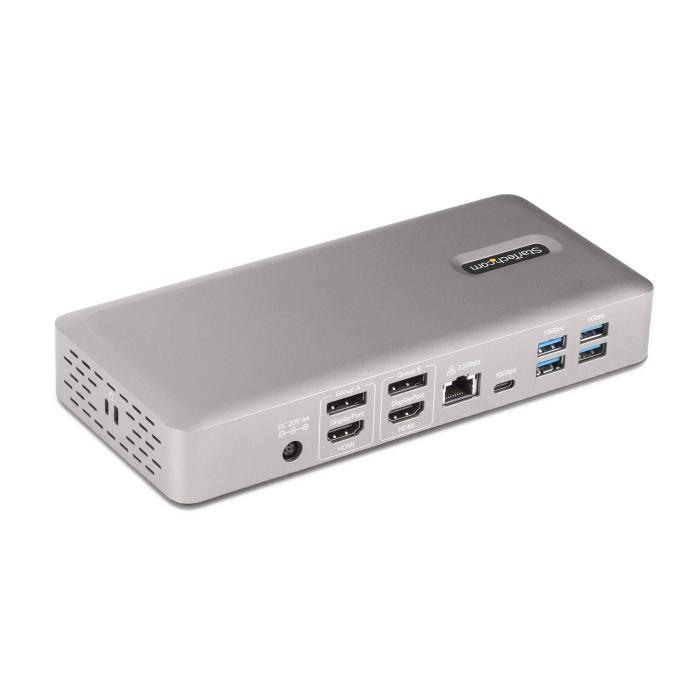

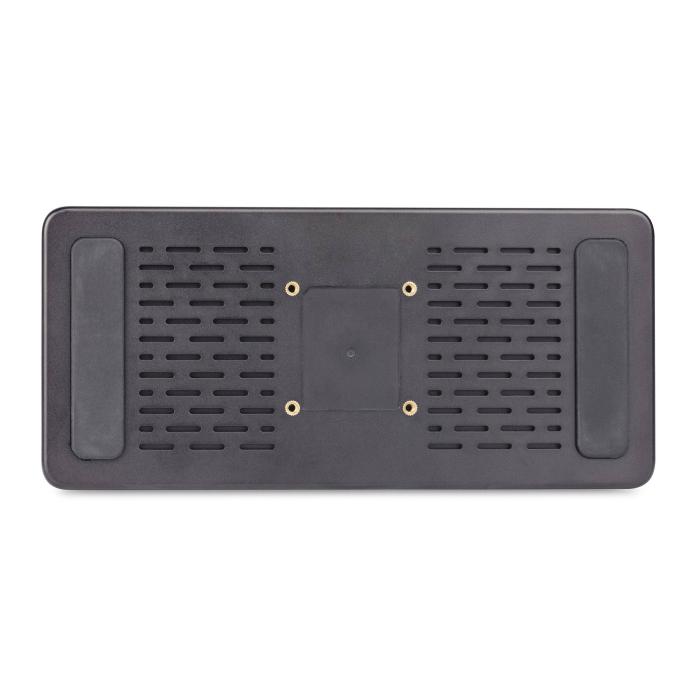

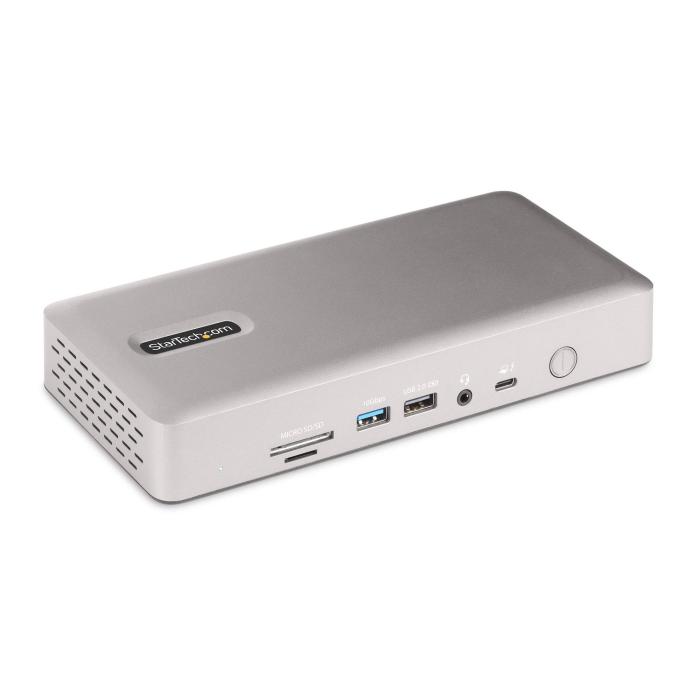

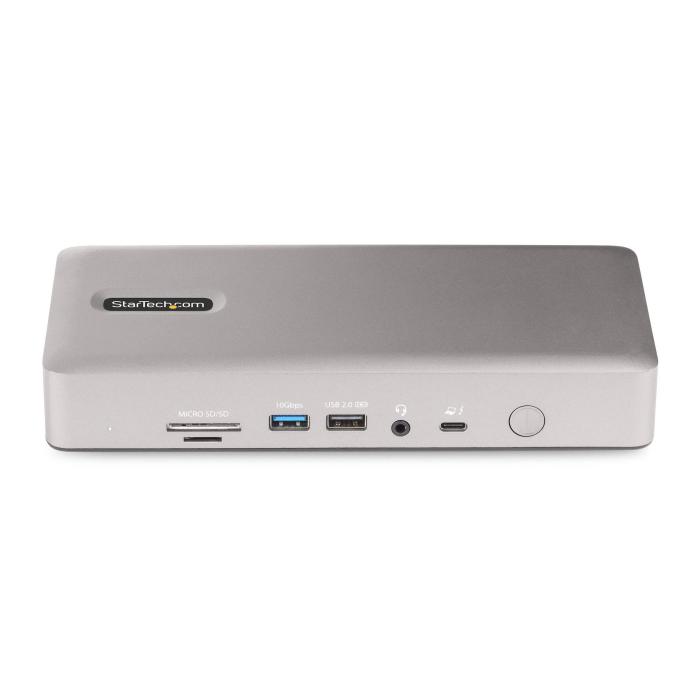

StarTech.com Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 98W Laptop Charging
More info
Brand: STARTECH.COM
307.72 €
254.31 €
without VAT
Stock available: 11 units.
Get it
on the
September 22
/
September 23
SKU:
105304
PRC:
517061
EAN:
65030899680
PN:
132UE-TB4USB4DOCK
Description
StarTech.com Universal USB4 u0026 Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 98W Laptop Charging, Wired, Thunderbolt 4, 98 W, 3.5 mm, 10,100,1000,2500 Mbit/s, 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 4
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 98 W
- HDMI ports quantity: 2
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
- DC-in jack: Yes
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Copper ethernet cabling technology: 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
- Full duplex: Yes
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
- Data transfer rate: 40 Gbit/s
- HD type: 8K Ultra HD
- Maximum digital resolution: 7680 x 4320 pixels
- Maximum refresh rate: 60 Hz
- Cable lock slot: Yes
- Cable lock slot type: Kensington, Nano
- Product colour: Grey
- On/off switch: Yes
- LED indicators: LAN, Power
- UASP support: Yes
- Housing material: Aluminium
Power
- Power source type: DC
- AC input voltage: 110 - 240 V
- Input current: 2.5 A
- Output voltage: 20 V
- Output current: 9 A
- Power consumption (max): 180 W
- Compatible power plug types: EU, UK
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 210 mm
- Depth: 96 mm
- Height: 34 mm
- Weight: 200 g
Packaging data
- Package width: 235 mm
- Package depth: 145 mm
- Package height: 90 mm
- Package weight: 1.4 kg
Packaging content
- Cables included: Thunderbolt
- AC adapter included: Yes
- Quick start guide: Yes
Technical details
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 4 pc(s)
- Master (outer) case width: 380 mm
- Master (outer) case length: 310 mm
- Master (outer) case height: 285 mm
Other features
- Chipset: Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - R
