StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA
More info
Brand: STARTECH.COM
Not avaliableStock available: 0 units.
Unavailable
SKU:
103421
PRC:
469950
EAN:
65030895002
PN:
2TBT3-PCIE-ENCLOSURE
Description

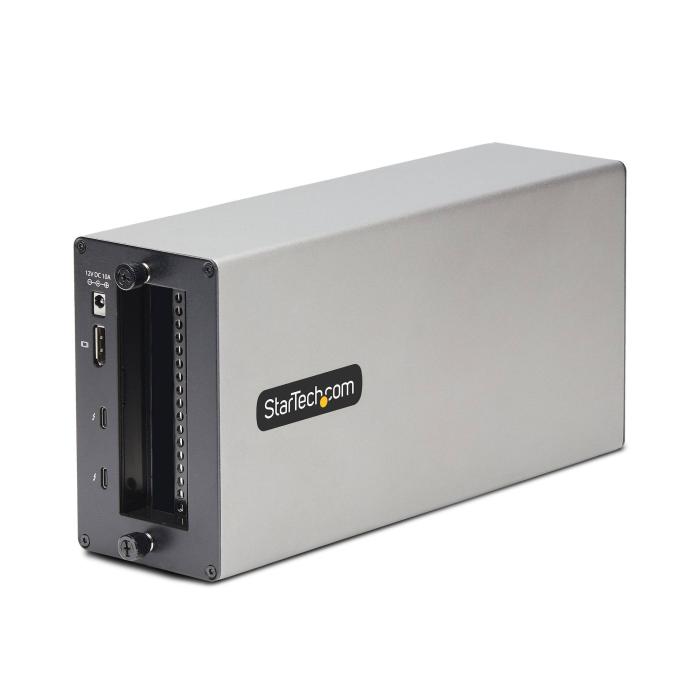

Expand your laptop's possibilities with the StarTech.com Thunderbolt 3 to PCI Express Expansion Chassis, a silver enclosure that adds two PCIe 3.0 x16 slots for mounting expansion cards. Its Thunderbolt 3 host interface offers wired connectivity technology and provides two Thunderbolt 3 ports, plus a DisplayPort 1.4 output with up to 8K Ultra HD and a 60 Hz refresh rate. With it you can power up to two displays at once and work more comfortably in editing, capture or instrumentation. The chassis is made of aluminium, weighs 1.6 kg and measures 281 x 142 x 84 mm (width x height x depth), compact dimensions that leave room on the desk. It includes a built-in fan to keep the temperature controlled and a rubber foot that prevents movement on the desk. A power LED indicator confirms at a glance that the unit is running.
Specifications

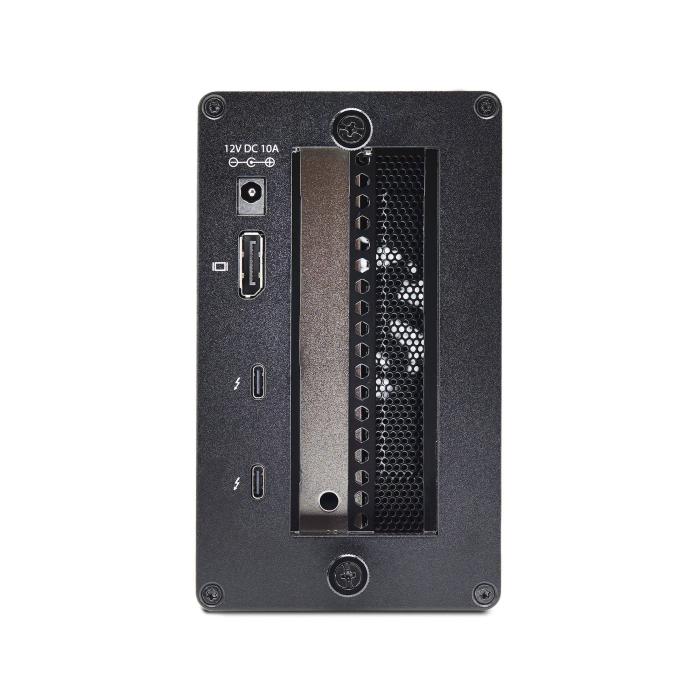

Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 3
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Thunderbolt 3 ports quantity: 2
- Microphone in: No
- PCI Express x16 slots: 2
- PCIe version: 3.0
Network
- Ethernet LAN: No
Performance
- Card reader integrated: No
- HD type: 8K Ultra HD
- Number of displays supported: 2
- Maximum refresh rate: 60 Hz
- Product colour: Silver
- LED indicators: Power
- Rubber feet: Yes
- Housing material: Aluminium
Cooling
- Built-in fan: Yes
- Number of fans: 1 fan(s)
- Fan diameter: 6 cm
Power
- Power source type: DC
- AC input voltage: 100 - 240 V
- Input current: 3 A
- Output voltage: 12 V
- Output current: 10 A
- Power consumption (max): 120 W
- Compatible power plug types: AU, EU, JP, UK, US
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Ma
Operational conditions
- Operating temperature (T-T): 5 - 65 °C
- Storage temperature (T-T): -20 - 65 °C
- Operating relative humidity (H-H): 20 - 80%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 281 mm
- Depth: 84 mm
- Height: 142 mm
- Weight: 1.6 kg
Packaging data
- Package width: 285 mm
- Package depth: 353 mm
- Package height: 143 mm
- Package weight: 3.4 kg

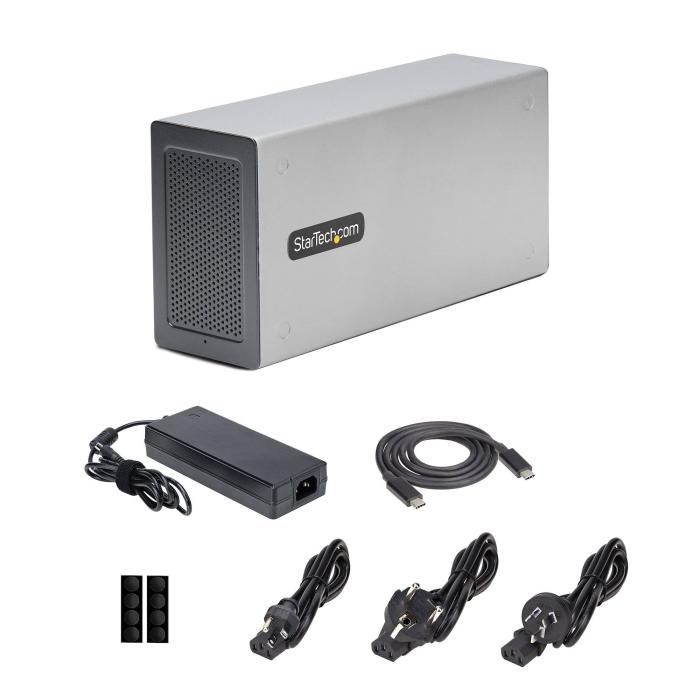

Packaging content
- Cables included: Thunderbolt
- AC adapter included: Yes
- Quick start guide: Yes
Technical details
- Compliance certificates: RoHS, Trade Agreements Act (TAA)
Logistics data
- Products per master (outer) case: 3 pc(s)
- Master (outer) case width: 375 mm
- Master (outer) case length: 455 mm
- Master (outer) case height: 325 mm
Other features
- Chipset: Titan Ridge DSL7440 (x2), Ti TPS65983B (x2)
