Description

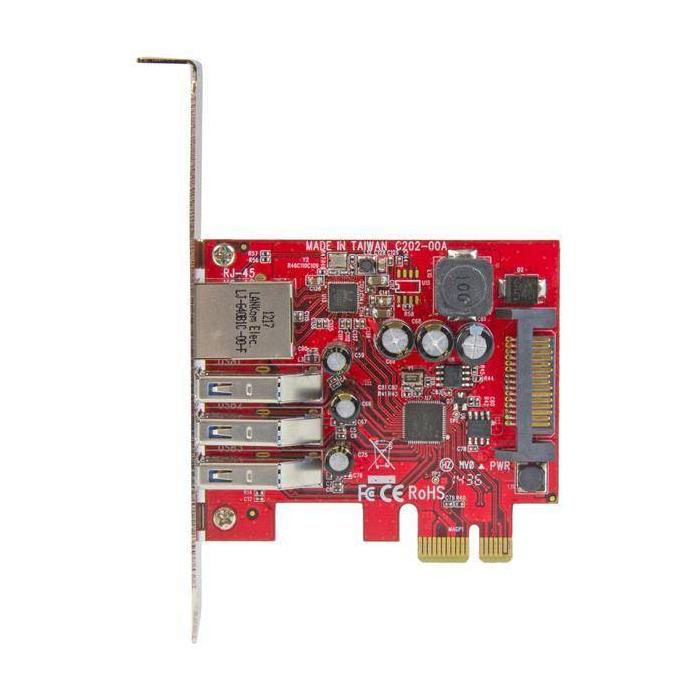

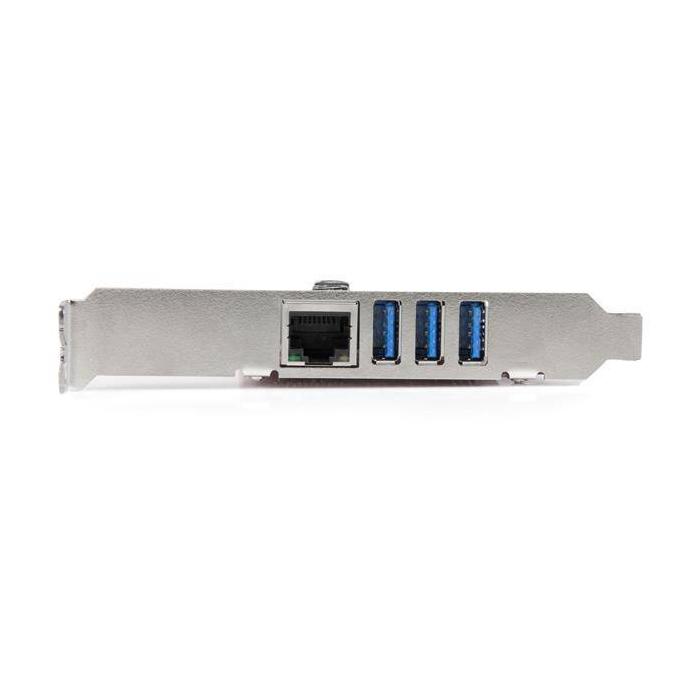

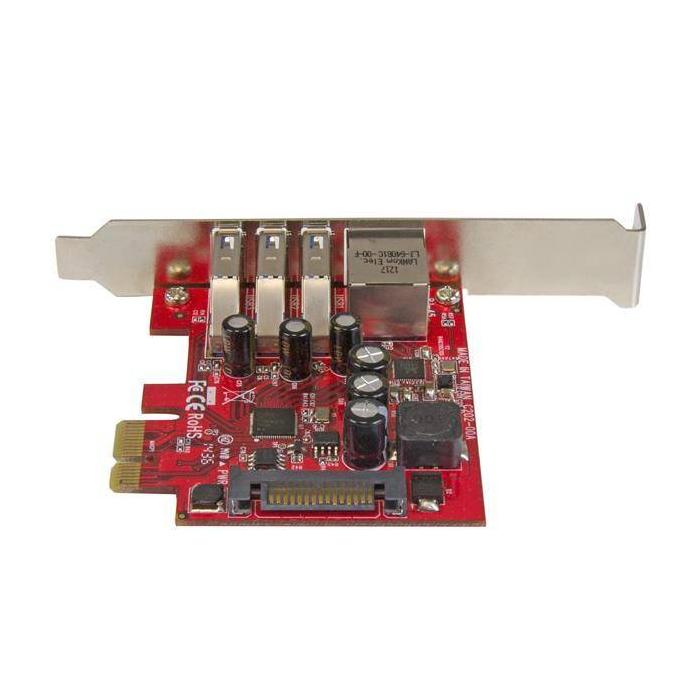

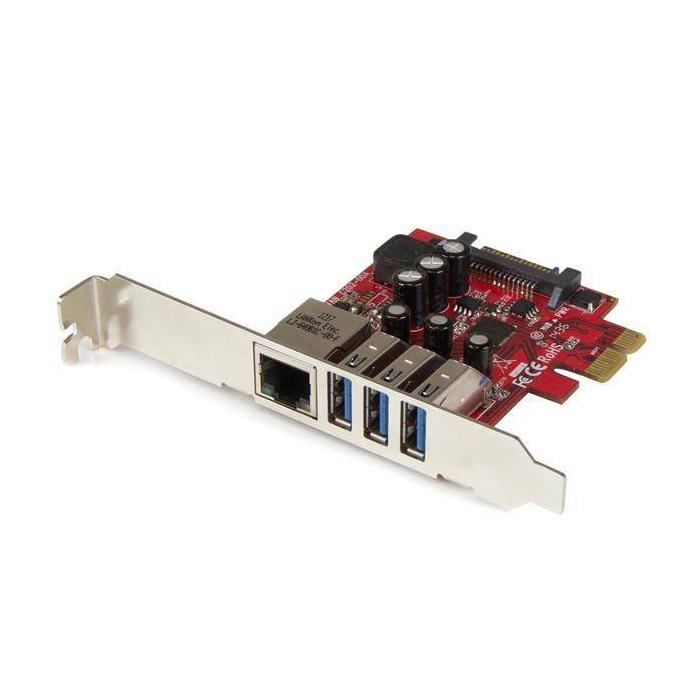

StarTech.com 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet, Internal, Wired, PCI Express, Ethernet, 5000 Mbit/s, Metallic, Red

Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Ethernet
  • Ethernet LAN (RJ-45) ports: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 3
  • USB version: 3.2 Gen 1 (3.1 Gen 1)
  • PCI version: 2.0
  • PCI Card form factor: Full-height (low-profile)

Network


  • Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Ethernet LAN: Yes
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Cabling technology: 10/100/1000BaseT(X)
  • Wake-on-LAN ready: Yes
  • Auto MDIX IEEE: Yes
  • Full duplex: Yes
  • Jumbo frames support: Yes
  • Auto-negotiation: Yes
  • Jumbo frames: 9000
  • VLAN tagging: Yes
  • Maximum data transfer rate: 5000 Mbit/s

Design


  • Product colour: Metallic, Red
  • Internal: Yes
  • Chipset: Renesas / NEC - µPD720201, Realtek - RTL8153
  • LED indicators: Activity, Link
  • Mean time between failures (MTBF): 1920042 h
  • Certification: CE, FCC

System requirements


  • Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012

Operational conditions


  • Operating temperature (T-T): 5 - 50 °C
  • Storage temperature (T-T): -25 - 70 °C
  • Operating relative humidity (H-H): 20 - 80%

Weight & dimensions


  • Width: 18 mm
  • Depth: 77 mm
  • Height: 120 mm
  • Weight: 60 g

Packaging data


  • Drivers included: Yes
  • Quantity per pack: 1 pc(s)
  • Package width: 144 mm
  • Package depth: 176 mm
  • Package height: 33 mm
  • Package weight: 150 g

Packaging content


  • Mounting brackets included: Yes
  • Manual: Yes

Technical details


  • Compliance certificates: RoHS

Logistics data


  • Harmonized System (HS) code: 85176990

Other features


  • Flow control support: Yes
  • USB data transfer rates: 5000 Mbit/s
  • UASP support: Yes
