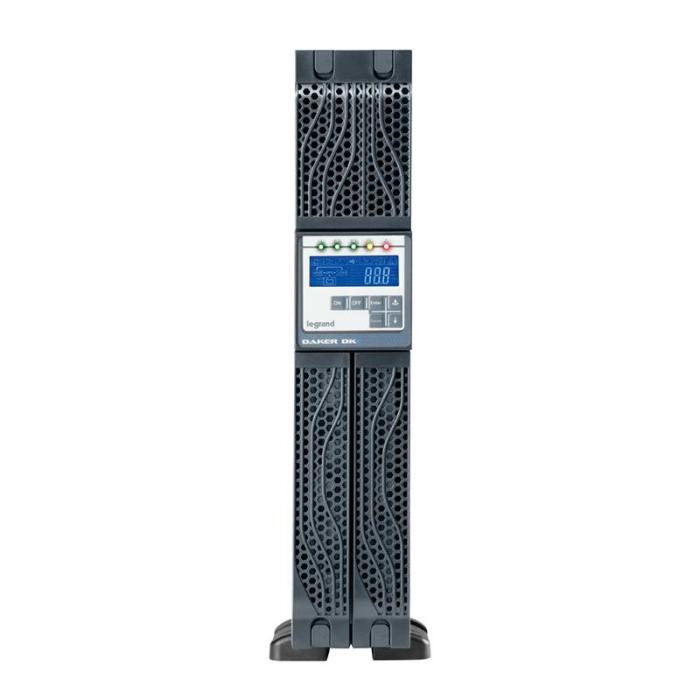

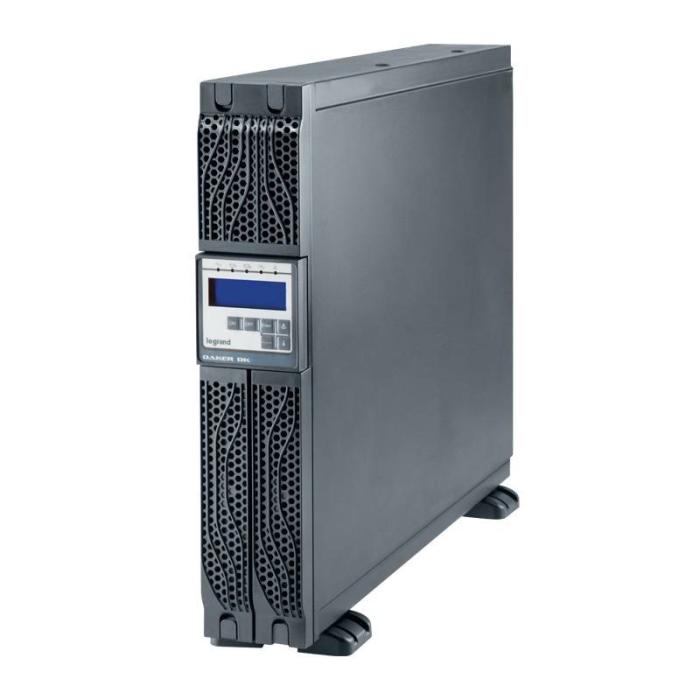

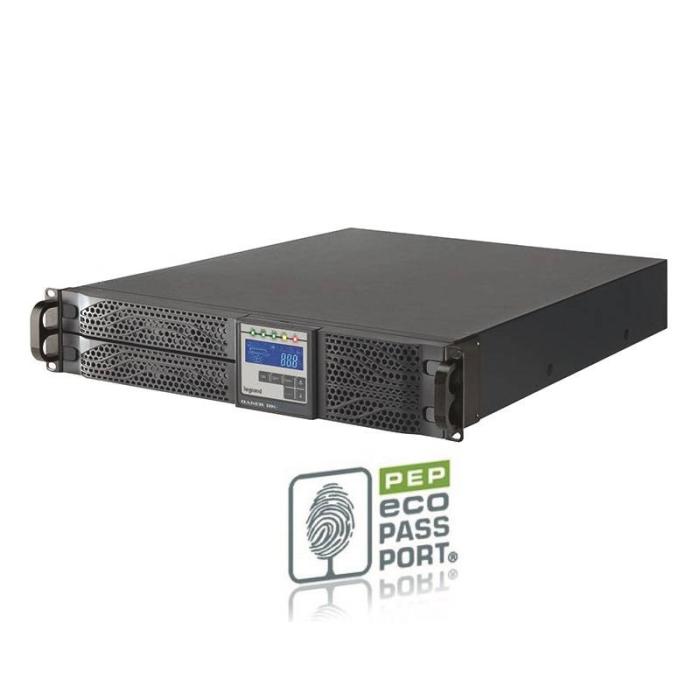

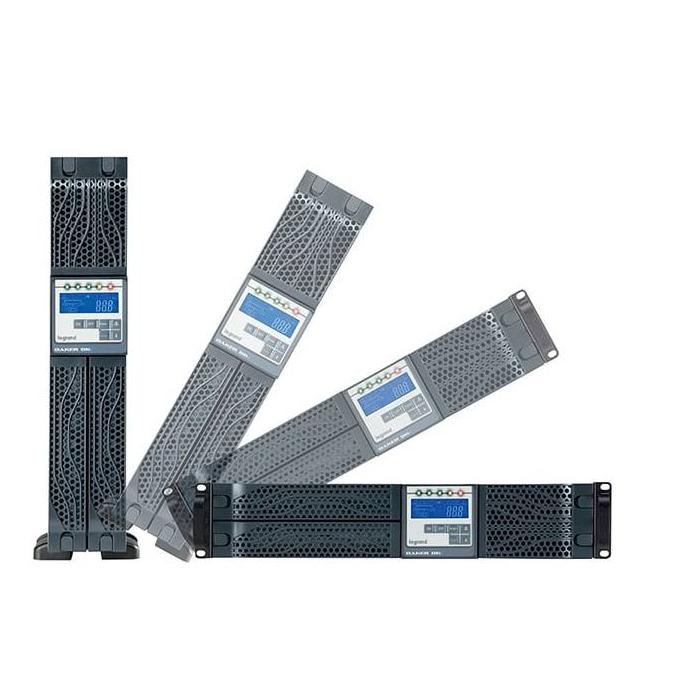

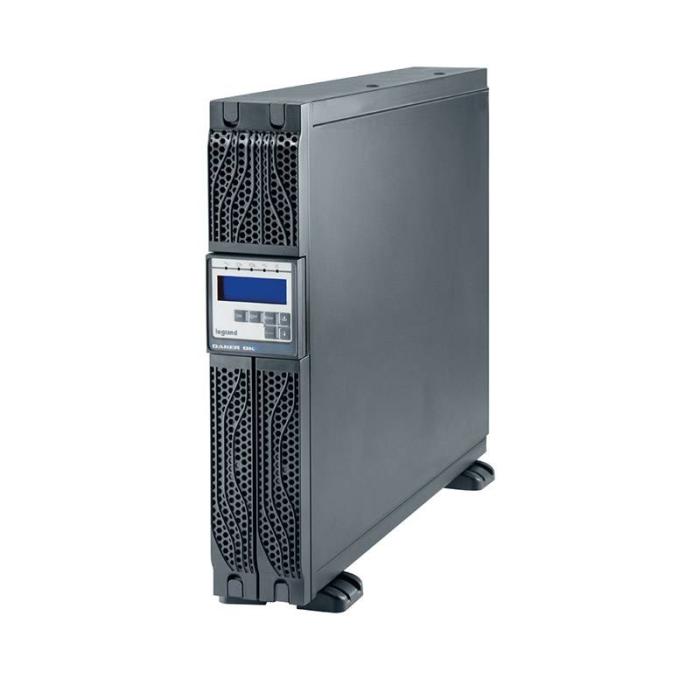

Legrand Daker DK+ UPS DAKER DK PLUS 2000VA, Double-conversion (Online), 2 kVA, 1800 W, Sine, 176 V, 280 V

Specifications

Features


  • UPS topology: Double-conversion (Online)
  • Output power capacity: 2 kVA
  • Output power: 1800 W
  • Waveform: Sine
  • Input operation voltage (min): 176 V
  • Input operation voltage (max): 280 V
  • Input frequency: 47/63 Hz
  • Output operation voltage (min): 228 V
  • Output operation voltage (max): 232 V
  • Output frequency: 50/60 Hz
  • Output voltage regulation: 1%
  • Surge energy rating: 1530 J
  • Number of input phases: 1
  • Number of output phases: 1
  • Efficiency: 91%
  • Efficiency (ECO mode): 97%
  • Input power factor: 0.99
  • Output power factor: 0.9
  • Crest factor: 3:1
  • Emergency Power Off (EPO): Yes
  • Output voltage Total Harmonic Distortion (THD): 3%
  • Input current Total Harmonic Distortion (THD): 3%
  • Noise level: 50 dB
  • Management protocols: Network management,Simple Network Management Protocol (SNMP)
  • Potential-free output: No
  • Auto shut-off: No
  • Power source type: AC

Ports & interfaces


  • AC outlet types: C13 coupler
  • Power plug: C14 coupler
  • AC outlets quantity: 6 AC outlet(s)
  • USB port: Yes
  • Serial interface: Yes
  • Serial interface type: RS-232

Battery


  • Battery capacity: 7.2 Ah
  • Battery voltage: 12 V
  • Number of batteries supported: 6
  • Battery recharge time: 4 h

Design


  • Form factor: Rackmount
  • Rack capacity: 2U
  • Product colour: Black
  • Display type: LCD
  • LED indicators: Status
  • International Protection (IP) code: IP20

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 0 - 95%

Certificates


  • Certification: EN 62040-1, EN 62040-2, EN 62040-3

Weight & dimensions


  • Weight: 29.5 kg
  • Width: 88 mm
  • Depth: 600 mm
  • Height: 440 mm

Packaging data


  • Package width: 88 mm
  • Package depth: 23.2 mm
  • Package height: 440 mm
  • Package weight: 24.7 kg

Logistics data


  • Products per pallet: 12 pc(s)
  • Pallet net height: 151.5 cm
  • Pallet net length: 100 cm
  • Pallet net width: 120 cm
  • Pallet net weight: 312 kg
  • Harmonized System (HS) code: 85078000
  • Master (outer) case width: 560 mm
  • Master (outer) case length: 710 mm
  • Master (outer) case height: 230 mm
  • Master (outer) case gross weight: 26 kg
  • Products per master (outer) case: 1 pc(s)
