Description

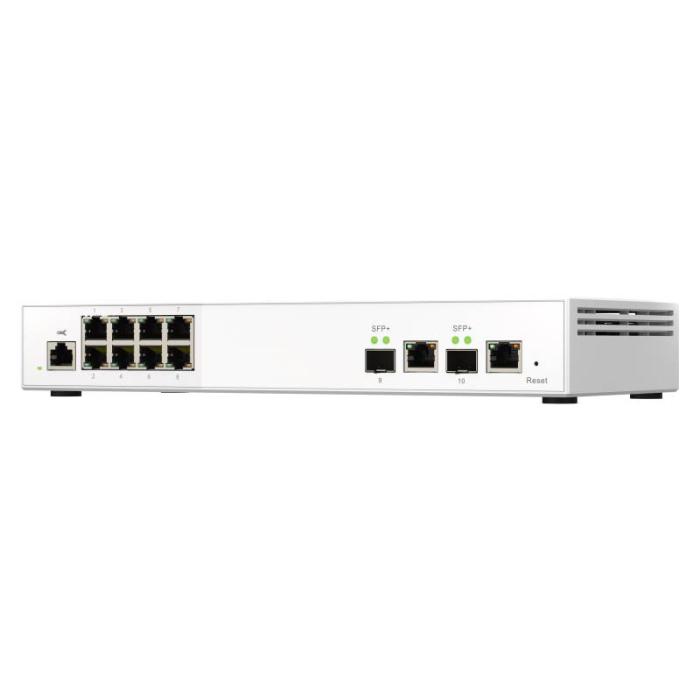

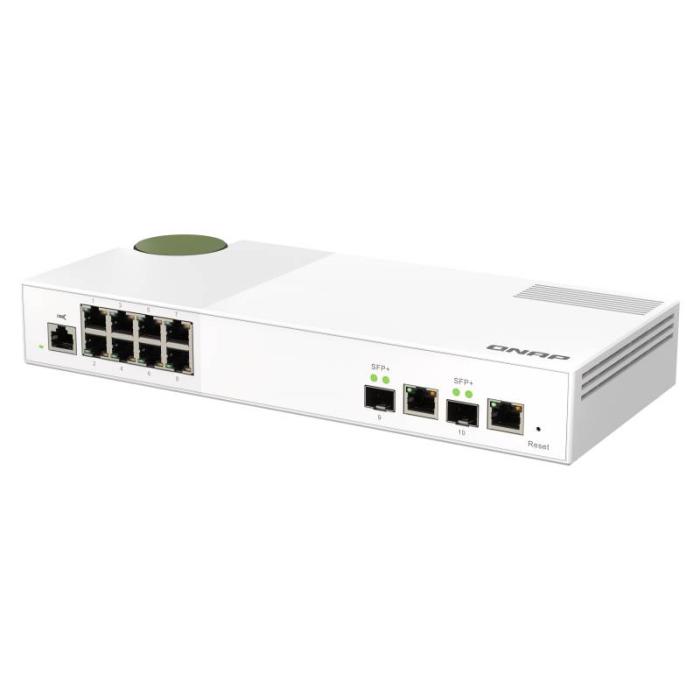

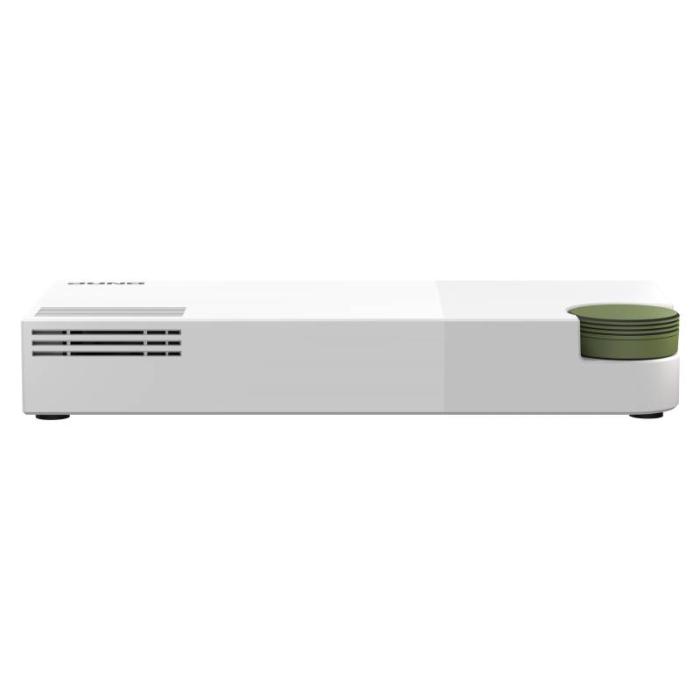

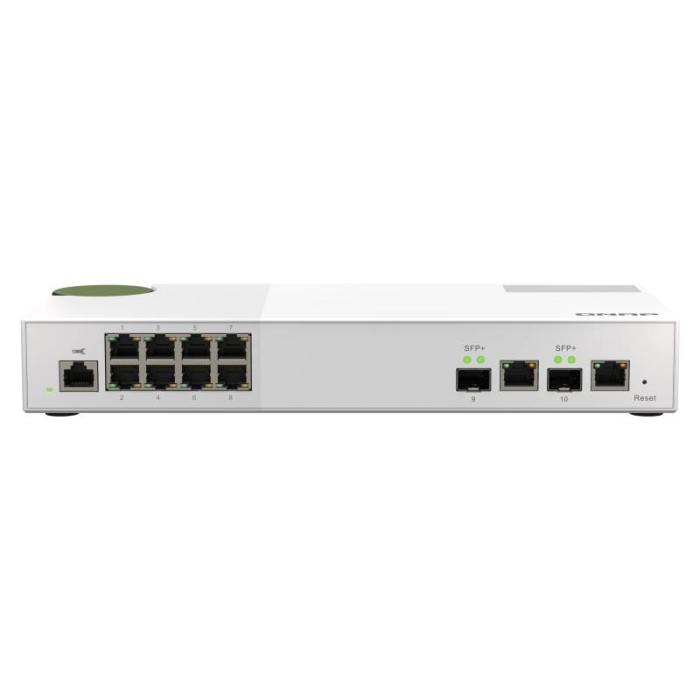

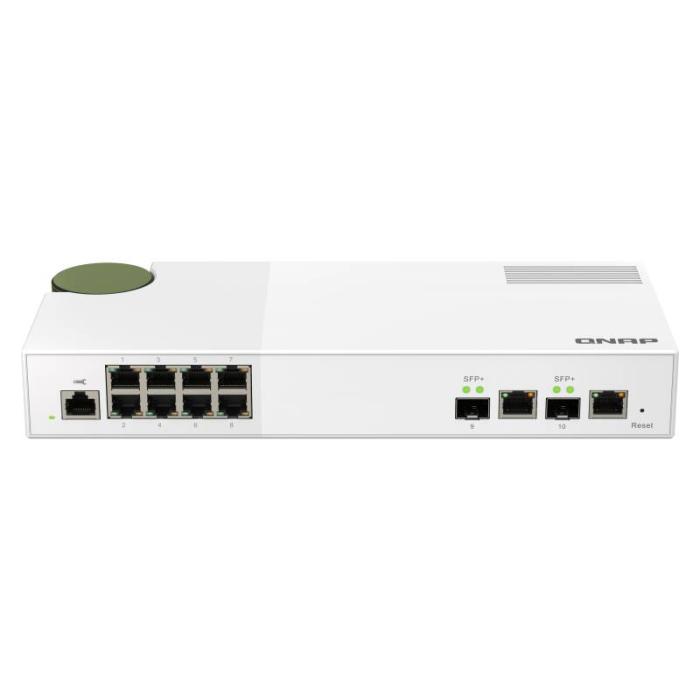

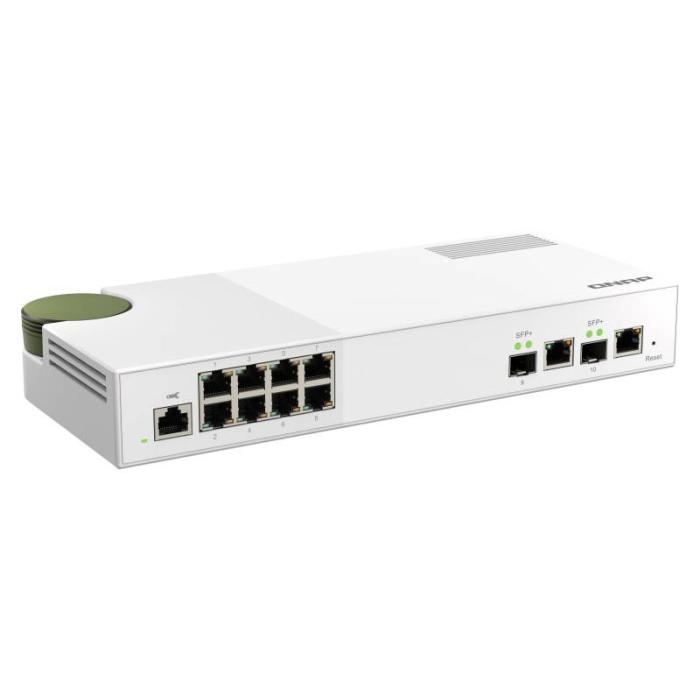

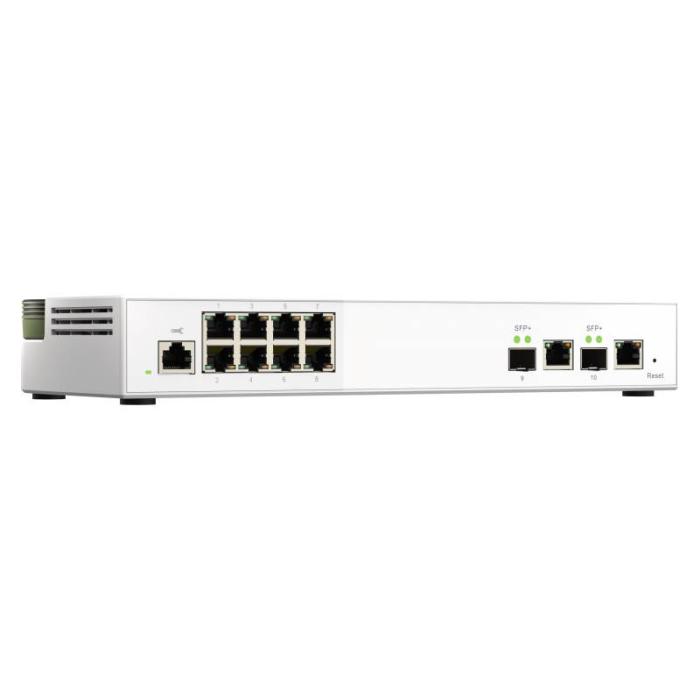

Managed L2 switch with eight 2.5G Ethernet RJ-45 ports (100/1000/2500) and two 10G Combo SFP slots, the QNAP QSW-M2108R-2C offers a switching capacity of 80 Gbit/s and a throughput of 40 Gbit/s, with support for VLAN, QoS, and web-based management. Its MAC address table reaches 16,000 entries and supports Jumbo frames of 9000 bytes, in addition to auto-negotiation and full duplex on all ports. It includes an RJ-45 console port for local configuration and is designed to integrate into networks that need to manage high-speed traffic with fibre connection options. This model in black combines the 2.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity: 8
- Combo SFP ports quantity: 2
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 80
- 10G support: Yes
- Full duplex: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 80 Gbit/s
- Throughput: 40 Gbit/s
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- Reset button: Yes
- LED indicators: Activity, Link, Power, Speed, Status
- Number of fans: 1 fan(s)
- Electromagnetic compatibility: CLASS A
Performance
- Firmware upgradeable: Yes
- Fanless: No
Power
- Power source: AC
- Power supply included: Yes
- Number of power supply units: 1
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 60 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 207 mm
- Depth: 199.5 mm
- Height: 43.3 mm
- Weight: 1.2 kg
Packaging content
- Quick start guide: Yes
Packaging data
- Package weight: 1.92 kg
Certificates
- Certification: CE, FCC, VCCI, BSMI
Logistics data
- Harmonized System (HS) code: 85176990
