Display


  • Display diagonal: 43.2 cm (17")
  • Display resolution: 1280 x 1024 pixels
  • HD type: Full HD
  • Native aspect ratio: 5:4
  • Display technology: LCD
  • Panel type: TN
  • Backlight type: W-LED
  • Touchscreen: Yes
  • Touchscreen technology: Projected capacitive system
  • Touch technology: Multi-touch
  • Number of simultaneous touchpoints: 10
  • Display brightness (typical): 250 cd/m²
  • Display brightness: 250 cd/m²
  • Response time: 1 ms
  • Screen shape: Flat
  • Aspect ratio: 5:4
  • Contrast ratio (typical): 1000:1
  • Contrast ratio (dynamic): 50000000:1
  • Dynamic contrast ratio marketing name: SmartContrast
  • Maximum refresh rate: 60 Hz
  • Viewing angle, horizontal: 170°
  • Viewing angle, vertical: 160°
  • Pixel pitch: 0.264 x 0.264 mm
  • Pixel density: 96 ppi
  • Horizontal scan range: 30 - 85 kHz
  • Vertical scan range: 48 - 75 Hz
  • Viewable size, horizontal: 33.8 cm
  • Viewable size, vertical: 27 cm
  • Digital horizontal frequency: 30 - 85 kHz
  • Digital vertical frequency: 48 - 75 Hz
  • Display diagonal (metric): 43.2 cm
  • DDC/CI: Yes
  • Haze rate: 5%
  • Surface hardness: 7H
  • Colour gamut standard: sRGB
  • Colour gamut: 87%
  • sRGB coverage (typical): 103%
  • Display sRGB: Yes

Performance


  • NVIDIA G-SYNC: No
  • AMD FreeSync: No
  • Component video sync: Separate sync, Sync-on-green (SOG)
  • Flicker-free technology: Yes
  • Low Blue Light technology: Yes
  • Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1

Multimedia


  • Number of speakers: 2
  • RMS rated power: 2 W
  • Built-in speaker(s): Yes

Design


  • Product colour: Black
  • Front bezel colour: Black
  • Feet colour: Black

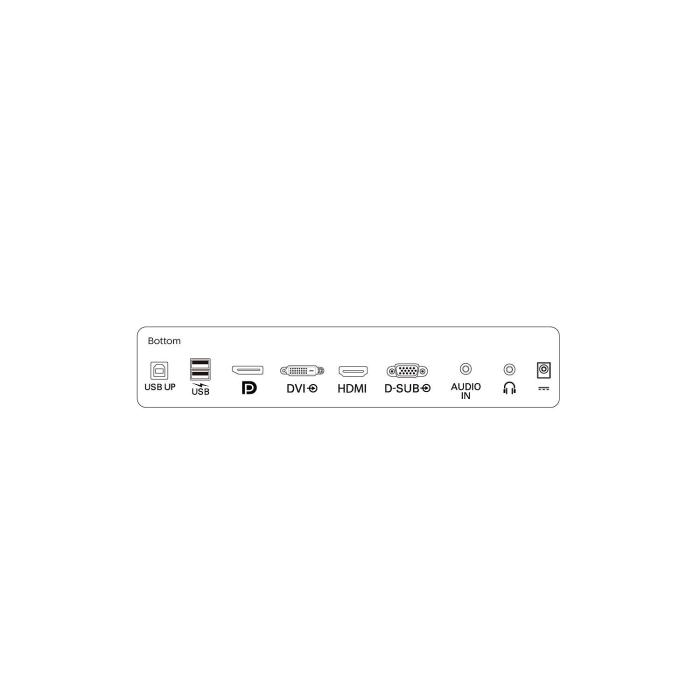

Ports & interfaces


  • USB Touch port: Yes
  • VGA (D-Sub) ports quantity: 1
  • HDMI ports quantity: 1
  • HDMI version: 1.4
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Headphone out: Yes
  • PC Audio in: Yes

Ergonomics


  • VESA mounting: Yes
  • Panel mounting interface: 100 x 100 mm
  • Cable lock slot: Yes
  • Cable lock slot type: Kensington
  • Height adjustment: Yes
  • Adjustable height (max): 7.6 cm
  • Tilt angle range: -5 - 90°
  • On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Jap
  • Palm rejection area: 30 x 30 mm
  • Plug and Play: Yes
  • LED indicators: Operation, Stand-by

Power


  • Energy efficiency class (SDR): D
  • Energy consumption (SDR) per 1000 hours: 10 kWh
  • Power consumption (typical): 9.14 W
  • Power consumption (standby): 0.3 W
  • Power consumption (off): 0.3 W
  • Power consumption (PowerSave): 7.7 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power supply type: External
  • Energy efficiency scale: A to G
  • European Product Registry for Energy Labelling (EPREL) code: 393967

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Operating altitude: 0 - 3658 m
  • Non-operating altitude: 0 - 12192 m

Weight & dimensions


  • Width (with stand): 376 mm
  • Depth (with stand): 227 mm
  • Height (with stand): 399 mm
  • Weight (with stand): 6.24 kg
  • Width (without stand): 376 mm
  • Depth (without stand): 45 mm
  • Height (without stand): 322 mm
  • Weight (without stand): 3.26 kg

Packaging data


  • Package width: 445 mm
  • Package depth: 159 mm
  • Package height: 420 mm
  • Package weight: 7.95 kg

Packaging content


  • Stand included: Yes
  • Cables included: VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
  • Manual: Yes
  • Bundled software: SmartControl

Sustainability


  • Sustainability certificates: ENERGY STAR, TCO
  • Doesn't contain: PVC/BFR, Mercury

Other features


  • International Protection (IP) code: IP65
  • Recommended resolution: 1280 x 1024 @ 60 Hz
  • Display viewable area (HxV): 337.9 x 270.3 mm
  • Picture enhancement: SmartImage
  • Recyclable packaging material: 100%
  • Regulatory Approvals: CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS
  • Mobile operating systems supported: Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
  • Heavy metals free: Hg (mercury)
  • Folding angle: 70°
  • Touch method: Stylus, Finger, Glove
  • EasyRead mode: Yes
  • Compliance certificates: RoHS, WEEE
  • Mean time between failures (MTBF): 70000 h
  • Certification: CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS

Logistics data


  • Harmonized System (HS) code: 85285210
