Description

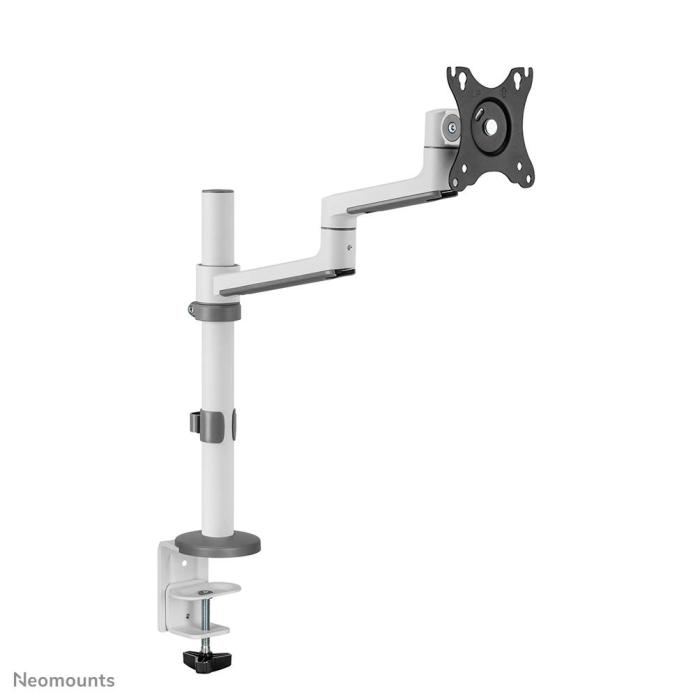

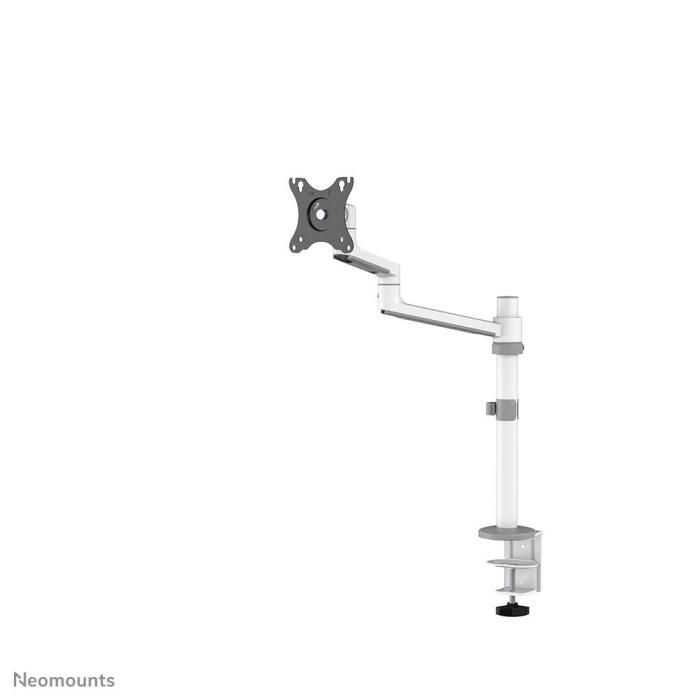

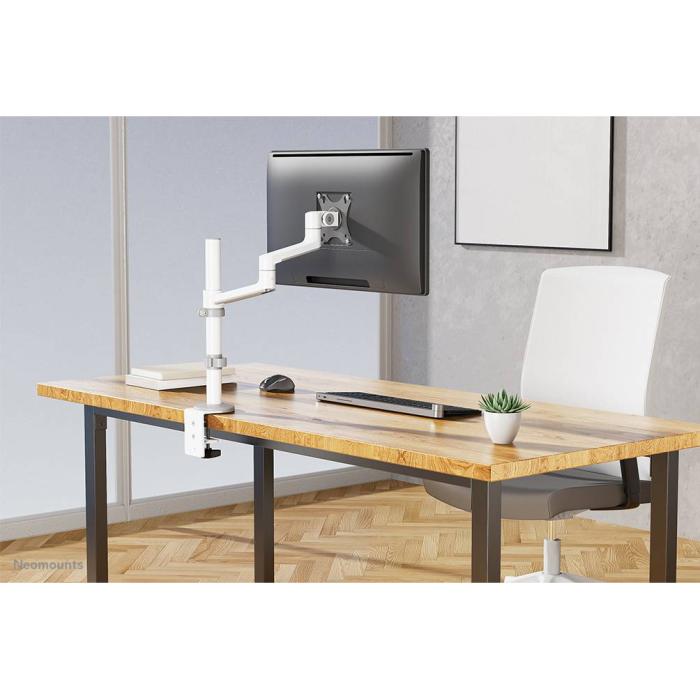

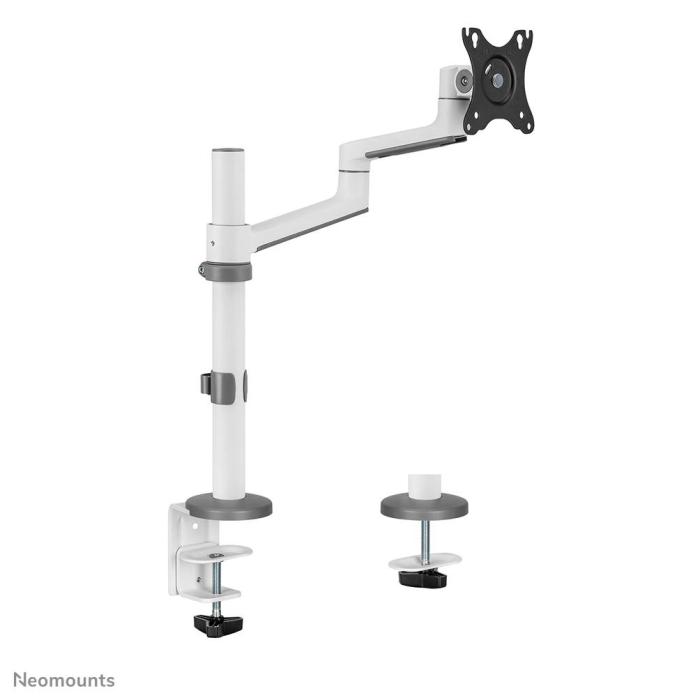

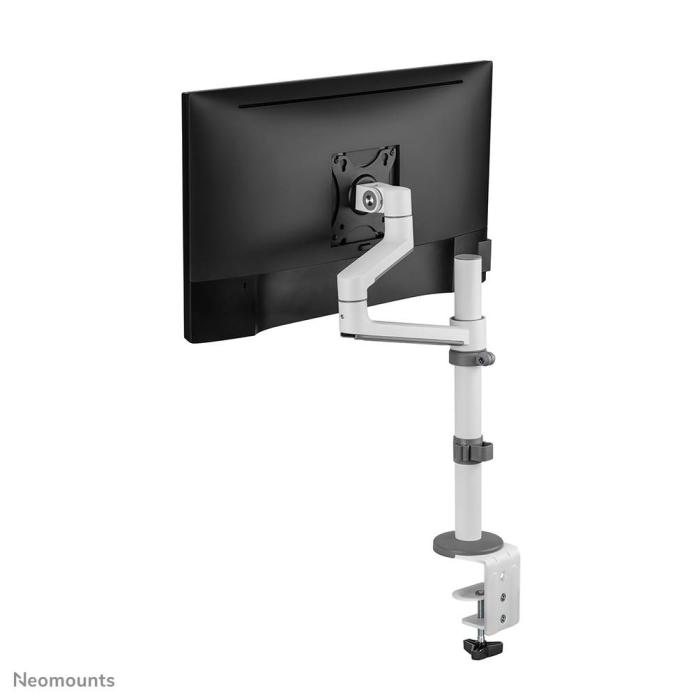

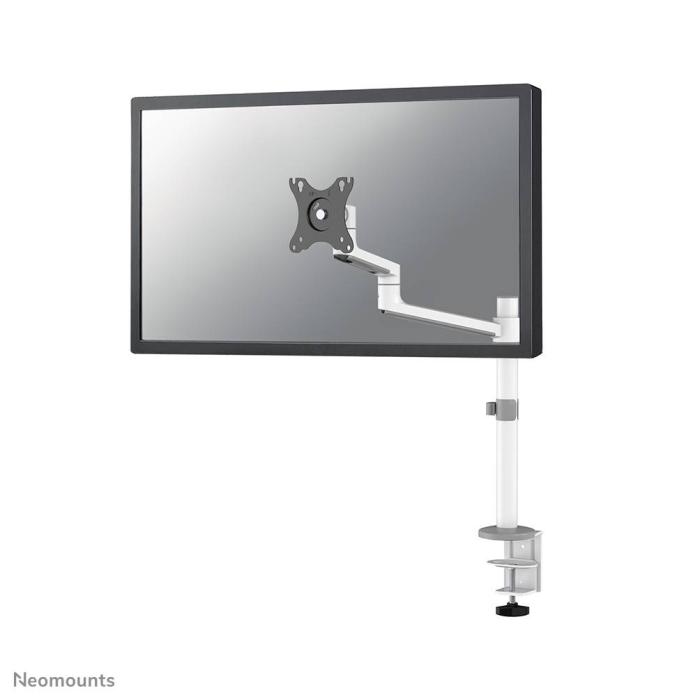

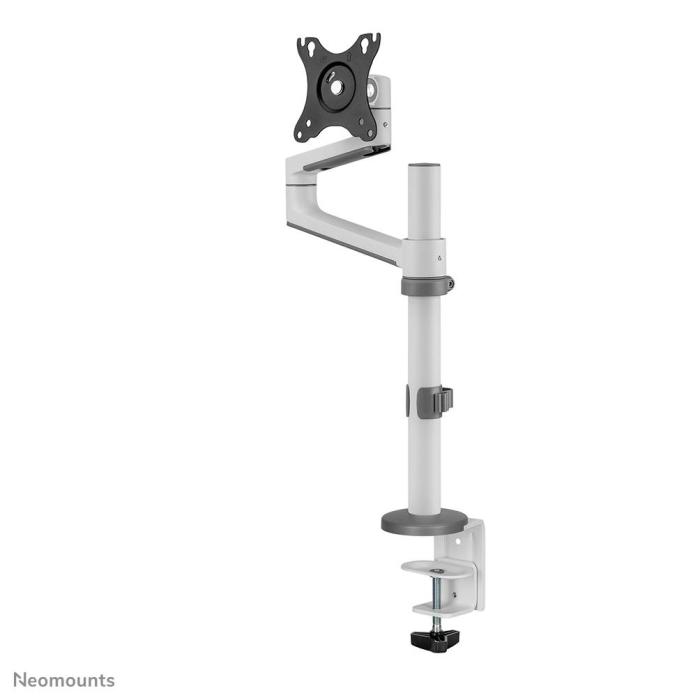

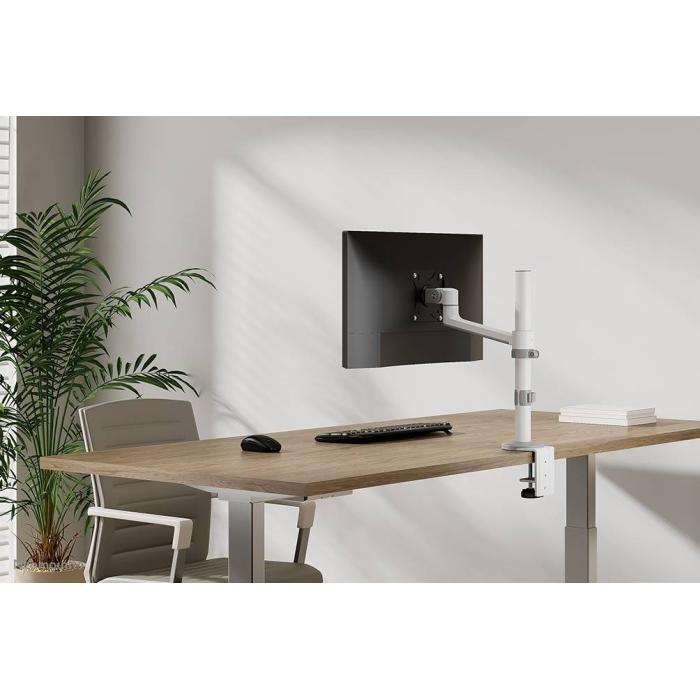

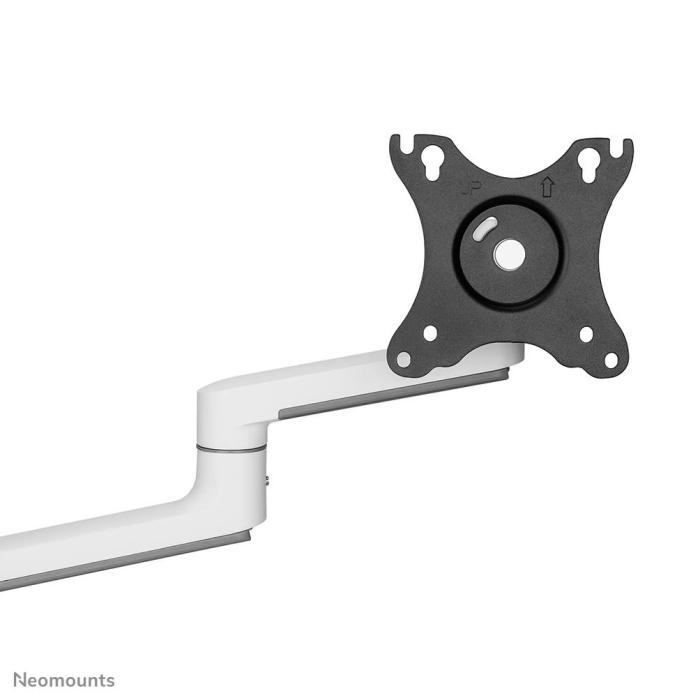

The Neomounts DS60-425WH1 monitor arm, in a white finish, lets you make the most of your desk space with a screen from 17 to 27 inches. This desk mount is fixed via clamp or bolt, and supports tables with a maximum thickness of 8 cm, as well as VESA panels of 75x75 or 100x100 mm. With a load capacity of up to 8 kg, it offers height adjustment between 275 and 555 mm and an adjustable depth from 66 to 398 mm to place the monitor in the most comfortable position. Its structure, from the Newstar brand, keeps the panel at a distance from the wall ranging between 12.8 and 45.9 cm, facilitating orientation without taking up useful surface.
Specifications
Mounting
- Maximum weight capacity (per display): 8 kg
- Maximum weight capacity: 8 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 1
- Maximum screen size: 68.6 cm (27")

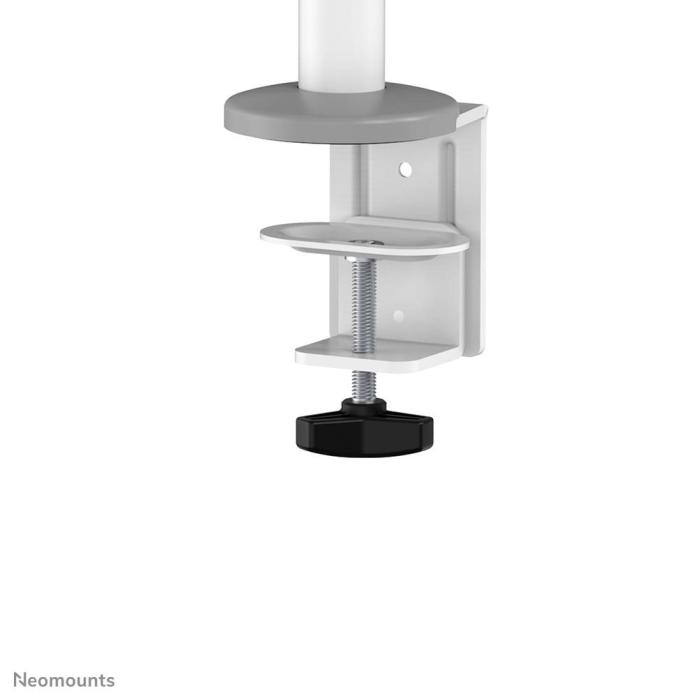

- Mounting: Clamp/Grommet
- Mounting type: Desk

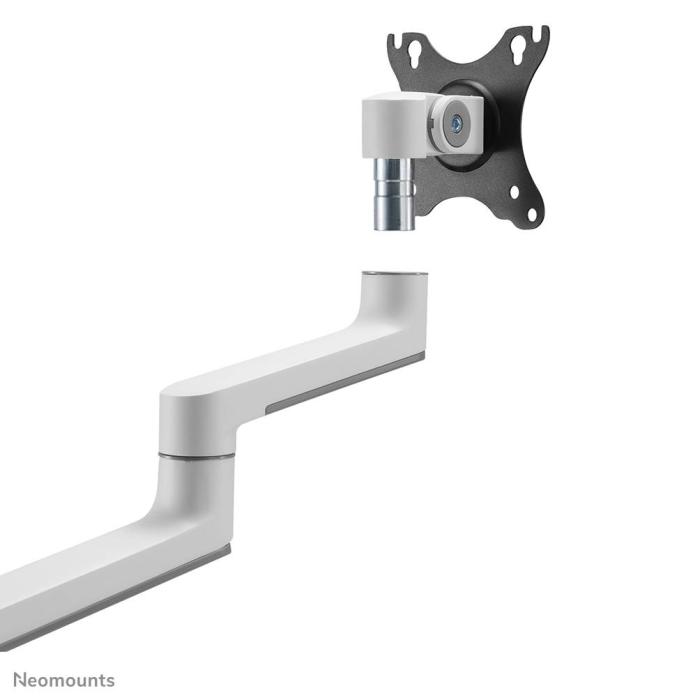

- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm

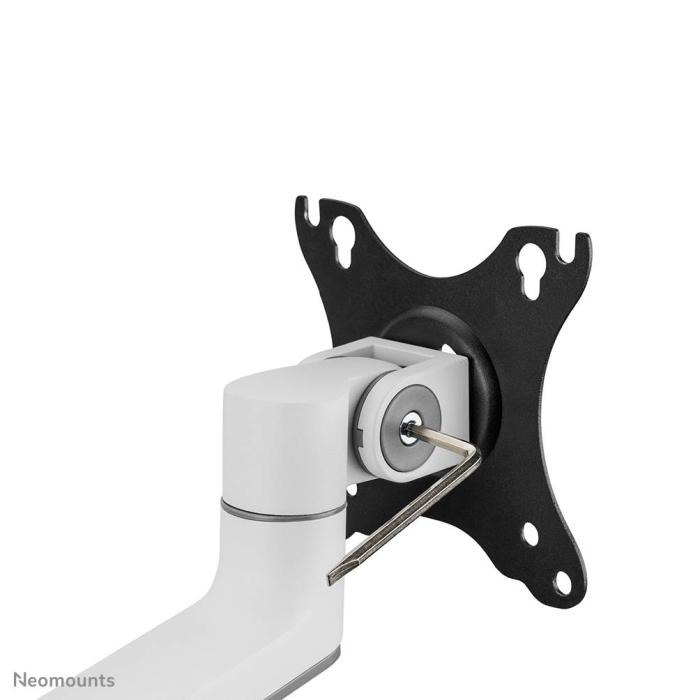

- Panel mounting interface: 100 x 100, 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 8 cm
- Clamp mount desk thickness (max): 8 cm

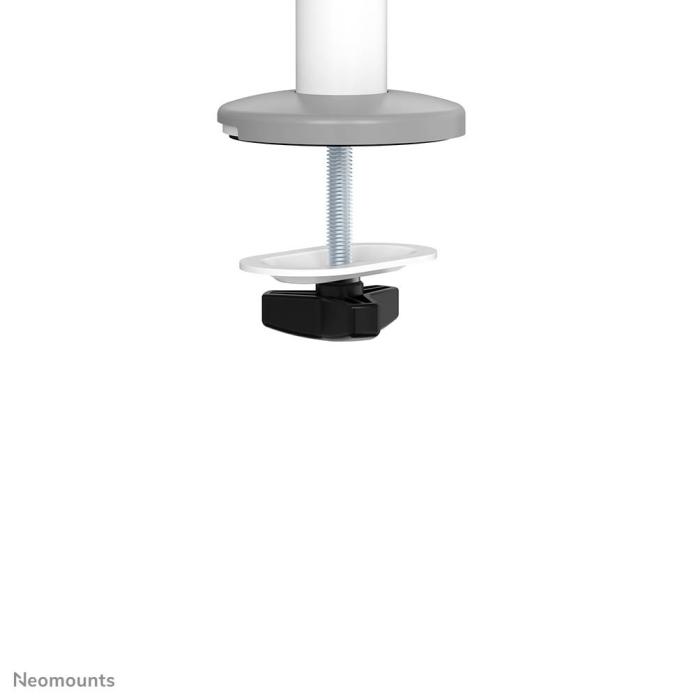

- Grommet mount desk thickness (max): 4 cm
- Distance to the wall (min): 12.8 cm
- Distance to the wall (max): 45.9 cm
Ergonomics
- Width adjustment: 33.2 cm
- Height adjustment: Yes
- Height adjustment type: Manual

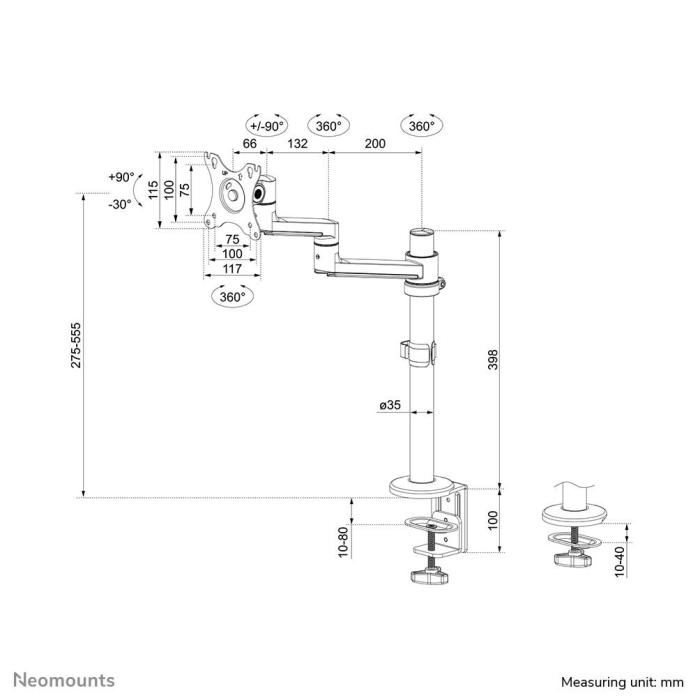

- Height adjustment range: 275 - 555 mm
- Adjustable depth: Yes
- Depth adjustment range: 66 - 398 mm

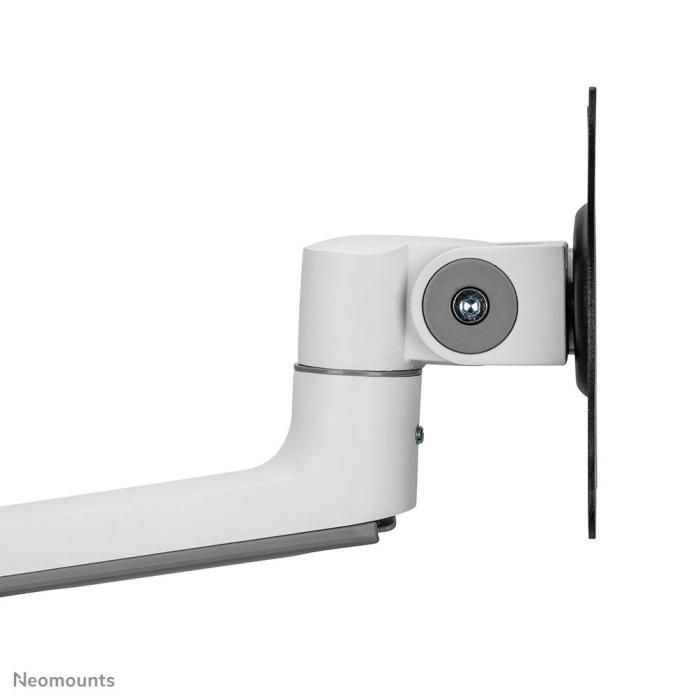

- Tilt angle range: -30 - 90°
- Swivelling: Yes

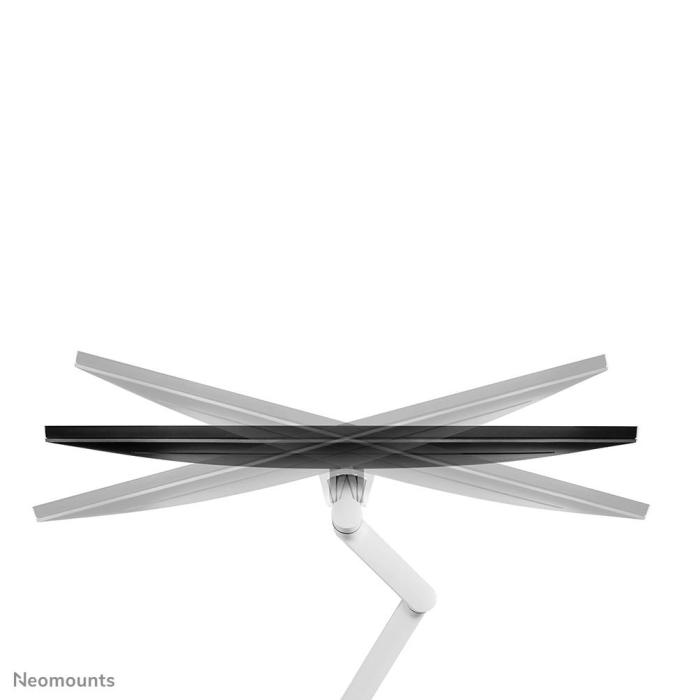

- Swivel angle range: -90 - 90°
- Angle of rotation: 360°

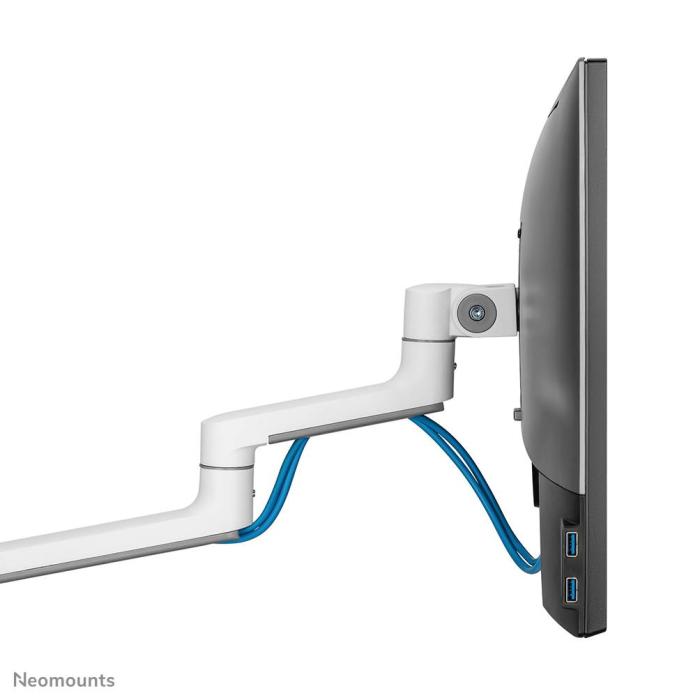

- Cable management: Yes
- Feet: Yes
- Feet colour: Black
Design
- Housing material: Steel
- Product colour: White
- Orientation: Landscape/Portrait
- Accepts padlock: No
Weight & dimensions
- Width: 453 mm
- Depth: 459 mm
- Height: 611 mm
- Weight: 2.54 kg
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 140 mm
- Package depth: 103 mm
- Package height: 440 mm
- Package net weight: 3 kg
- Package weight: 3 kg
Packaging content
- Clamp included: Yes
- VESA mount included: Yes
Other features
- Width adjustment range: 0 - 332 mm
Logistics data
- Master (outer) case width: 300 mm
- Master (outer) case length: 330 mm
- Master (outer) case height: 455 mm
- Master (outer) case gross weight: 18.2 kg
- Products per master (outer) case: 6 pc(s)
- Country of origin: China
- Master (outer) case net weight: 15.2 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 120 pc(s)
