Description

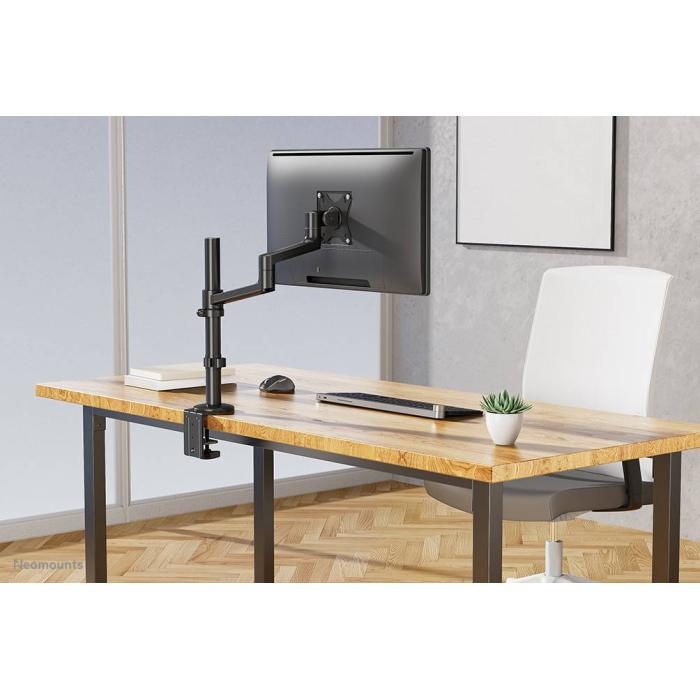

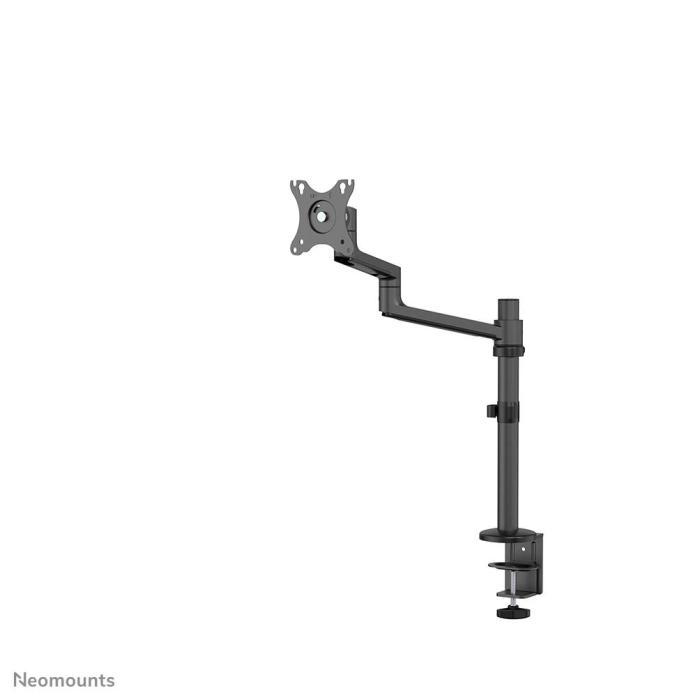

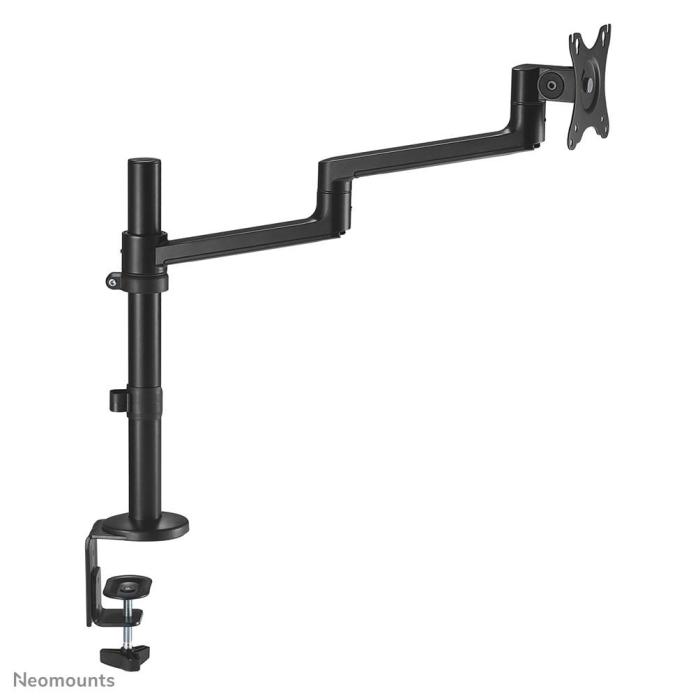

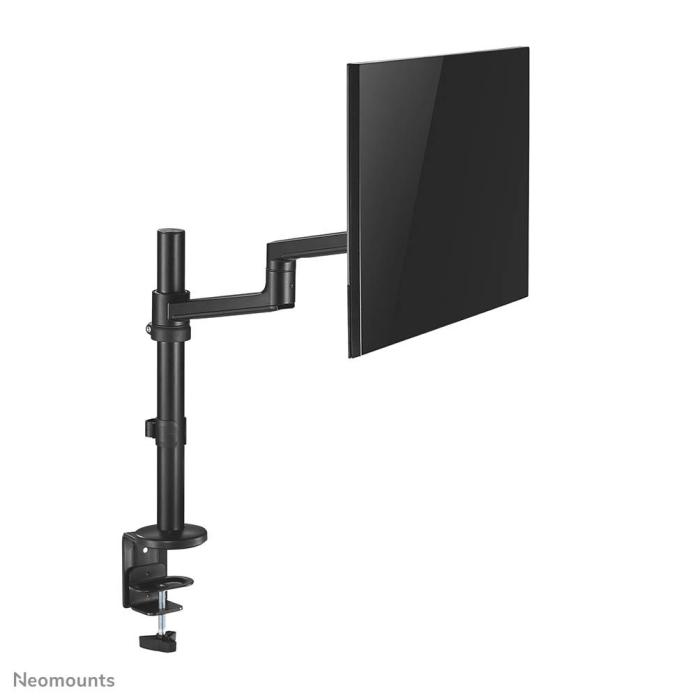

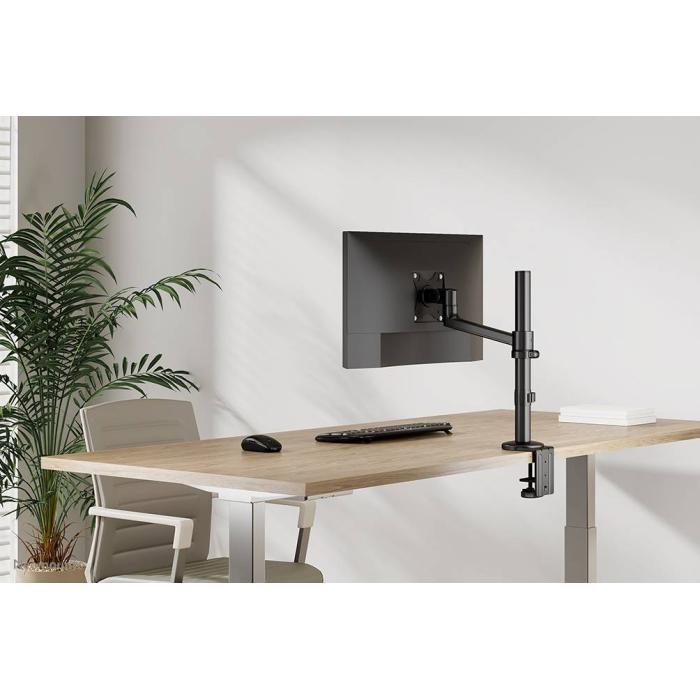

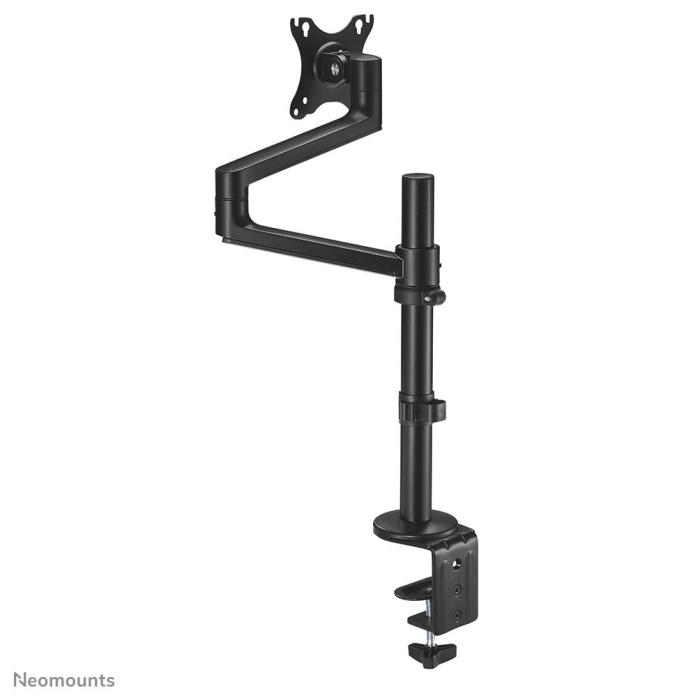

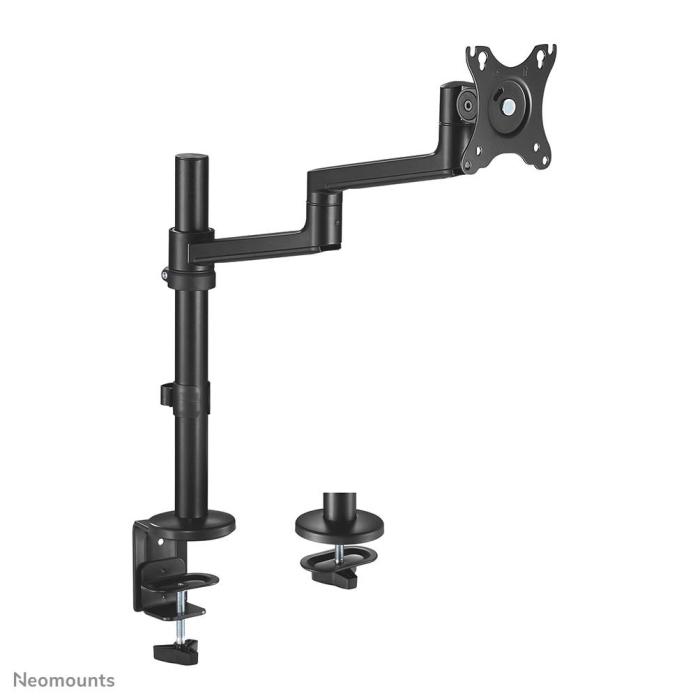

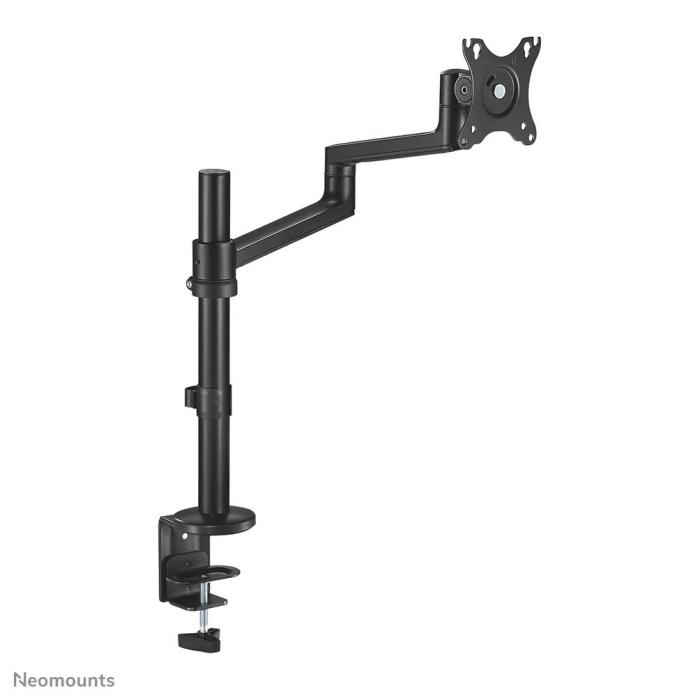

The Neomounts DS60-425BL1 monitor arm for screens from 17 to 27 inches lets you free up desk space by securing the display with a clamp or bolt-on fitting on tables up to 8 cm thick. Compatible with VESA interfaces of 75x75 and 100x100 mm, it supports a maximum weight of 8 kg and offers a depth adjustment ranging from 66 to 398 mm, along with a height range of 275 to 555 mm to adapt the position to your posture. Its desk-type design with a minimum distance to the wall of 12.8 cm and a maximum of 45.9 cm facilitates panel orientation without taking up useful surface area. NEWSTAR has conceived this single-display mount so you can integrate the screen neatly, maintaining the ergonomic reach needed to work comfortably.
Specifications
Mounting
- Maximum weight capacity: 8 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 1
- Maximum screen size: 68.6 cm (27")
- Mounting: Clamp/Grommet
- Mounting type: Desk

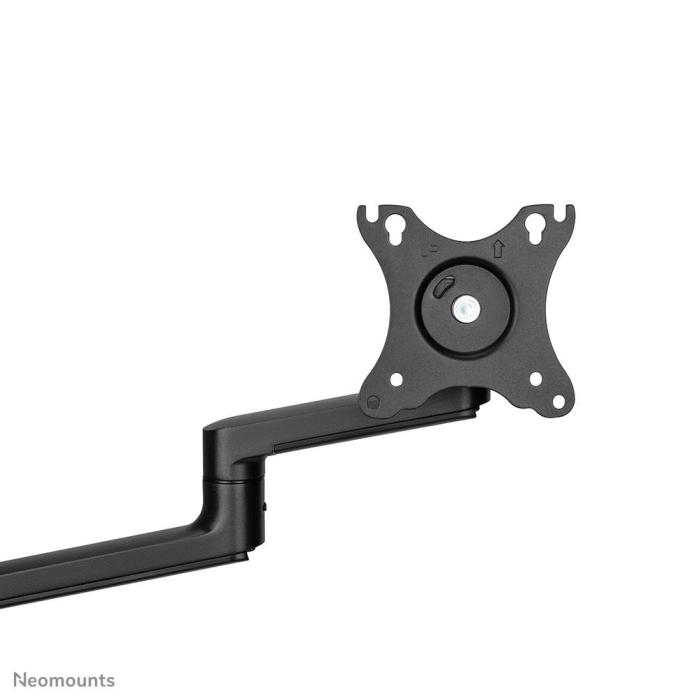

- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm

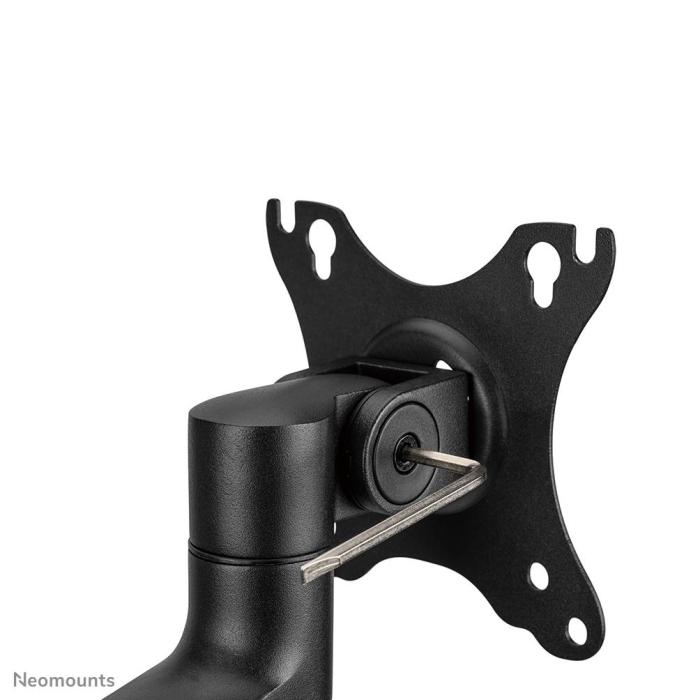

- Panel mounting interface: 100 x 100, 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 8 cm

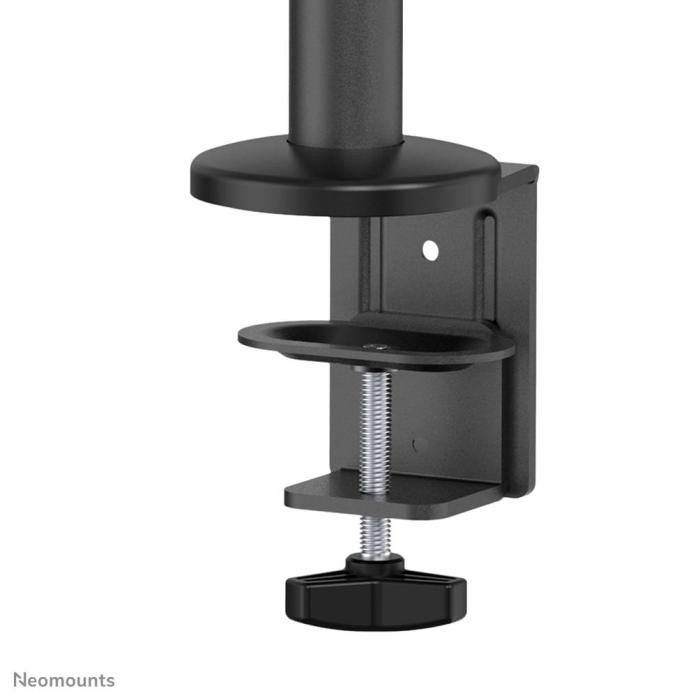

- Clamp mount desk thickness (max): 8 cm

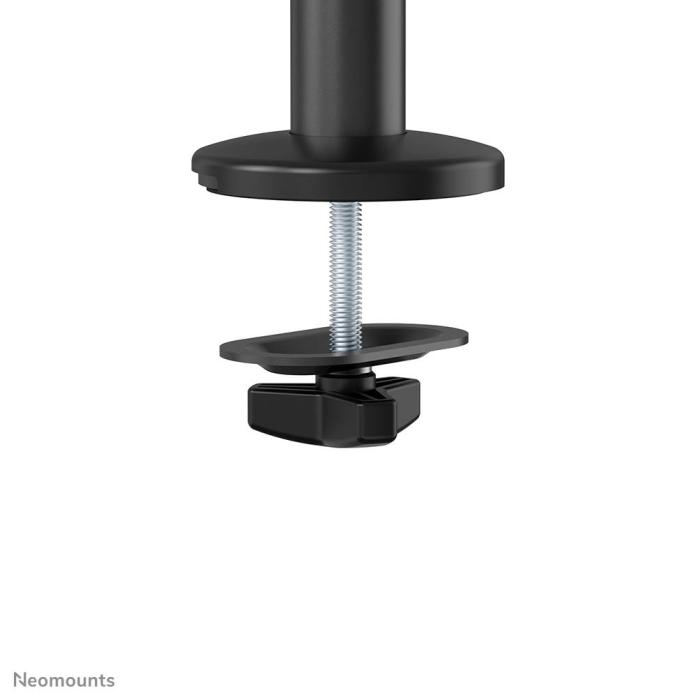

- Grommet mount desk thickness (max): 4 cm
- Distance to the wall (min): 12.8 cm
- Distance to the wall (max): 45.9 cm
- Maximum weight capacity (per display): 8 kg
Ergonomics

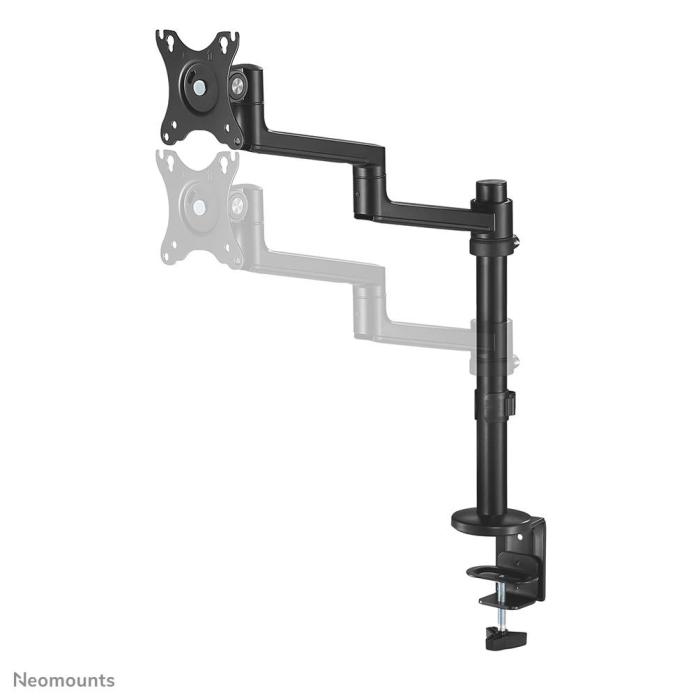

- Height adjustment: Yes
- Height adjustment type: Manual

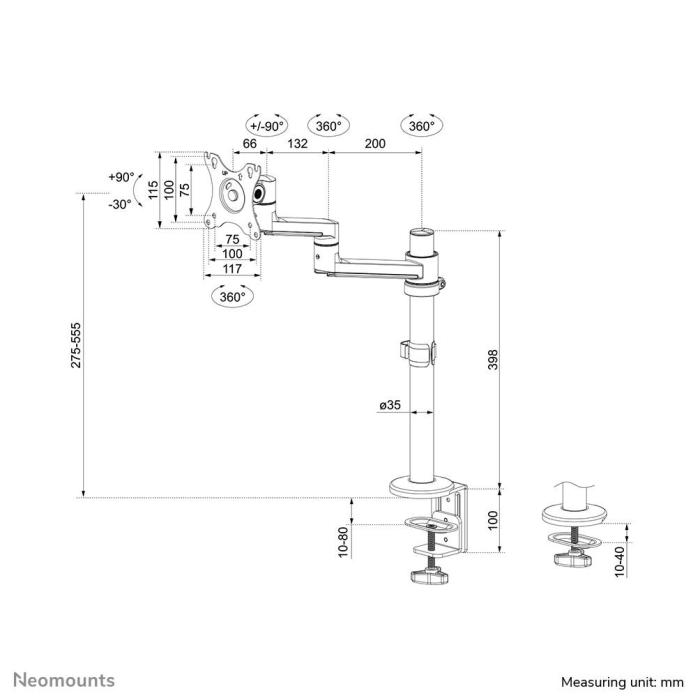

- Height adjustment range: 275 - 555 mm
- Adjustable depth: Yes
- Depth adjustment range: 66 - 398 mm

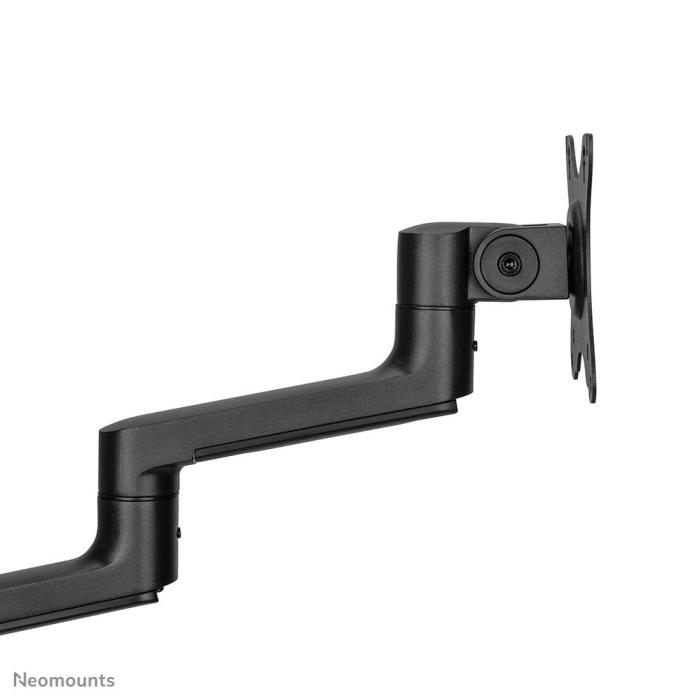

- Tilt angle range: -30 - 90°
- Swivelling: Yes
- Swivel angle range: -90 - 90°

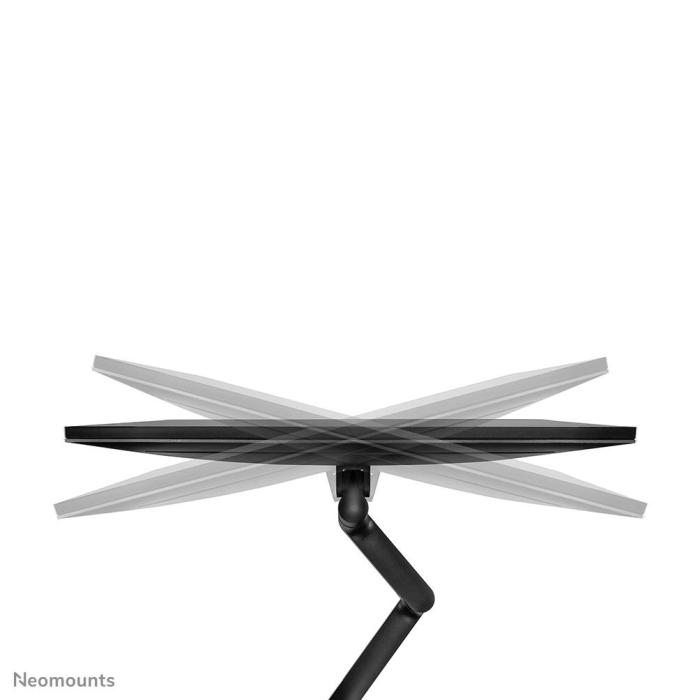

- Angle of rotation: 360°

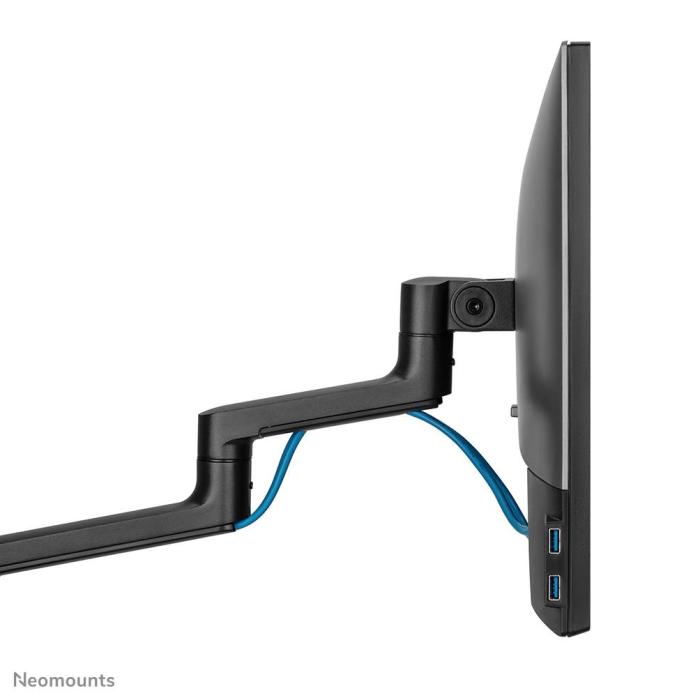

- Cable management: Yes
- Feet: Yes
- Feet colour: Black
- Width adjustment: 33.2 cm
Design
- Housing material: Steel
- Product colour: Black
- Orientation: Landscape/Portrait
- Accepts padlock: No
Weight & dimensions
- Width: 453 mm
- Depth: 459 mm
- Height: 611 mm
- Weight: 2.54 kg
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 140 mm
- Package depth: 103 mm
- Package height: 440 mm
- Package net weight: 3 kg
- Package weight: 3 kg
Packaging content
- Clamp included: Yes

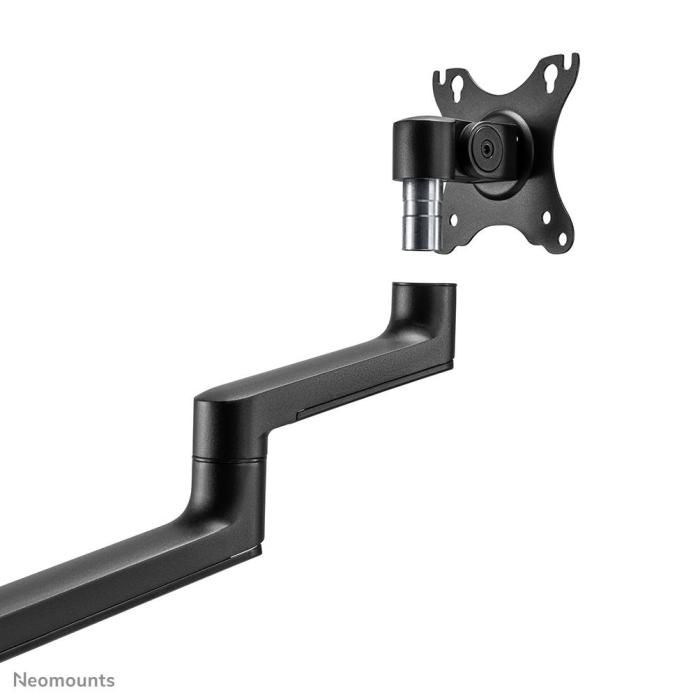

- VESA mount included: Yes
Other features
- Width adjustment range: 0 - 332 mm
Logistics data
- Master (outer) case width: 300 mm
- Master (outer) case length: 330 mm
- Master (outer) case height: 455 mm
- Master (outer) case gross weight: 18.2 kg
- Products per master (outer) case: 6 pc(s)
- Country of origin: China
- Master (outer) case net weight: 15.2 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 120 pc(s)
