Description

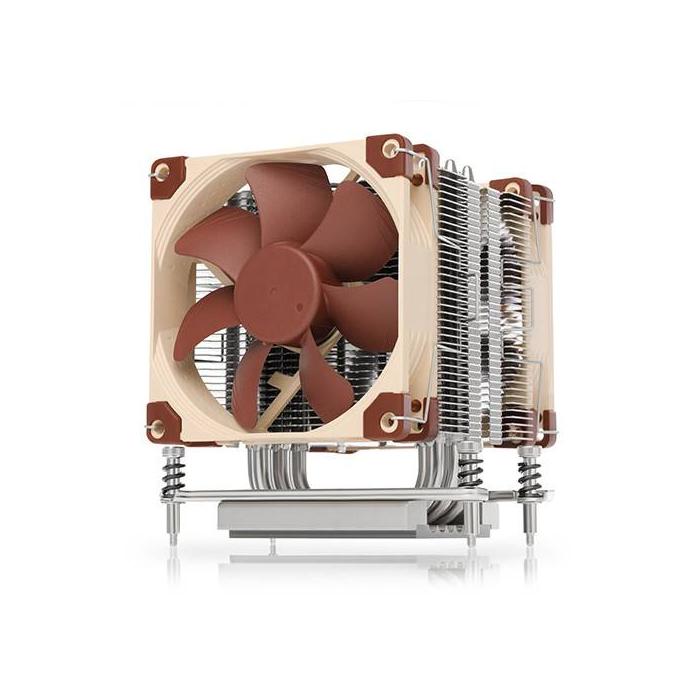

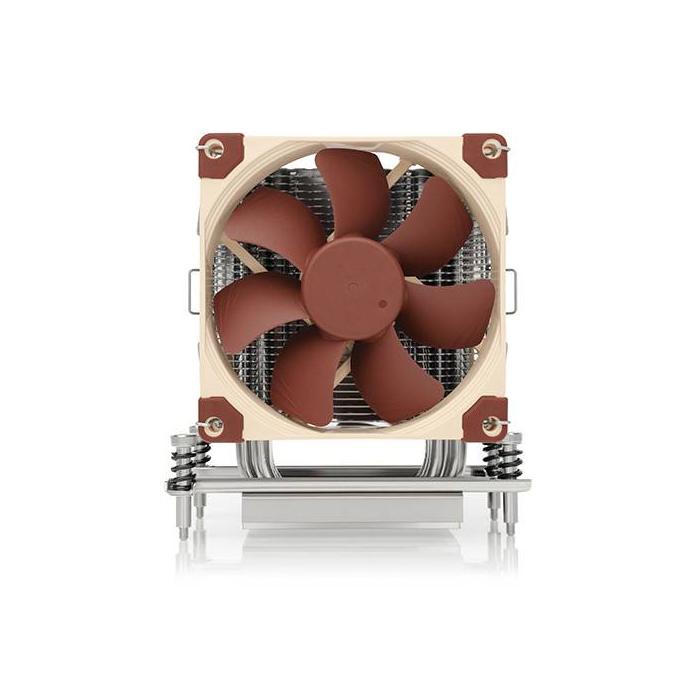

Noctua NH-U9 TR4-SP3 processor cooler in aluminium and beige, designed for TR4 and SP3 sockets and compatible with AMD Ryzen processors. This cooling system includes two 9.2 cm fans with SSO bearing, spinning between 400 and 2000 RPM and generating an airflow of up to 78.9 m³/h, reducible to 62.6 m³/h with the LNA adapter. Its copper base and heatsink, along with the seven blades per fan, offer a maximum noise level of 22.8 dB, dropping to 16.3 dB with LNA, and supports PWM control to adjust speed according to thermal load.
Specifications
Performance
- Suitable location: Processor
- Type: Cooler
- Fan diameter: 9.2 cm
- Supported processor sockets: Socket TR4, Socket SP3
- Compatible processor series: AMD Ryzen
- Rotational speed (min): 400 RPM
- Rotational speed (max): 2000 RPM
- Rotational speed with LNA (max): 1550 RPM
- Noise level (high speed): 22.8 dB
- Noise level with LNA (max): 16.3 dB
- Airflow: 78.9 m³/h
- Airflow with LNA (max): 62.6 m³/h
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Aluminium, Beige
- Material: Copper
- Number of fans: 2 fan(s)
- Number of fan blades: 7
- Fan connector: 4-pin
Power
- Power supply: 1.2 W
- Voltage: 12 V
Weight & dimensions
- Width: 125 mm
- Depth: 119 mm
- Height: 95 mm
- Weight: 855 g
- Fan dimensions (W x D x H): 92 x 92 x 25 mm
- Heatsink weight: 660 g
- Package width: 175 mm
- Package depth: 135 mm
- Package height: 185 mm
- Package weight: 1.2 kg
Packaging content
- Low-noise adaptor (LNA): Yes
Other features
- Heatsink dimensions (W x D x H): 125 x 71 x 95 mm
- Mean time to failure (MTTF): 150000 h
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case gross weight: 15.5 kg
- Products per master (outer) case: 12 pc(s)
