Description

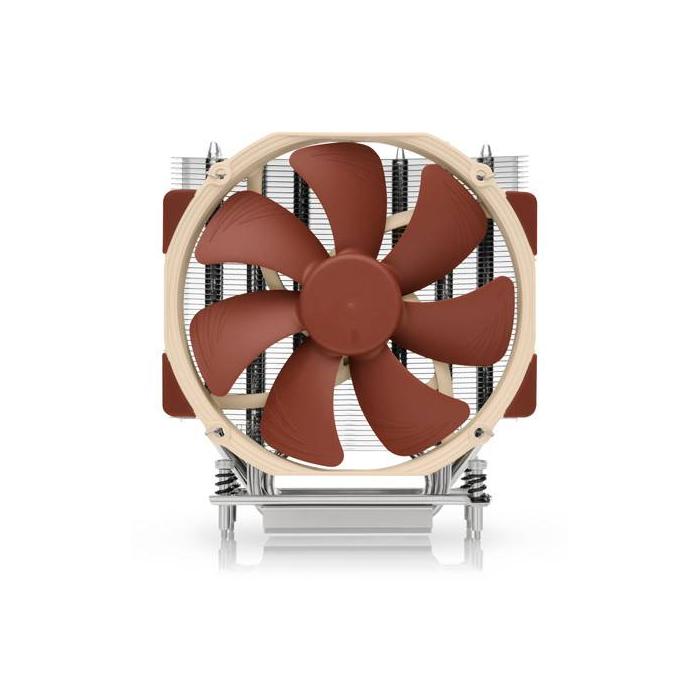

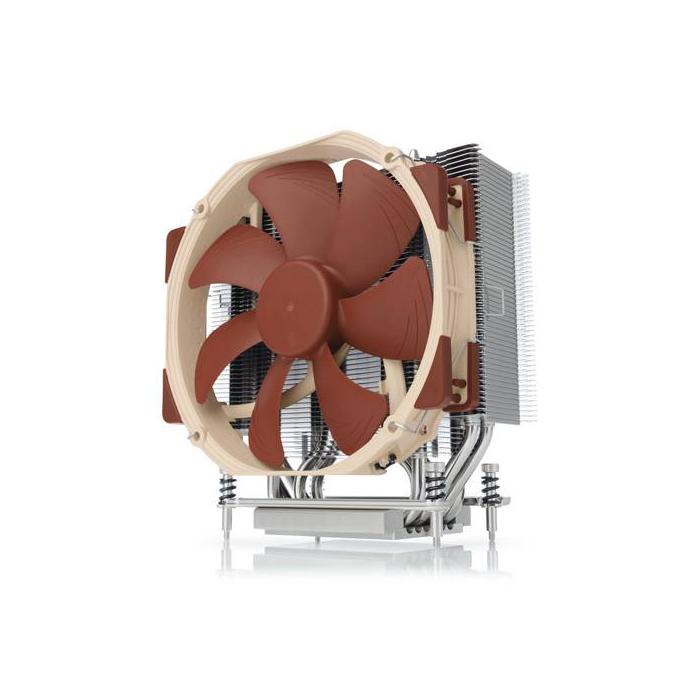

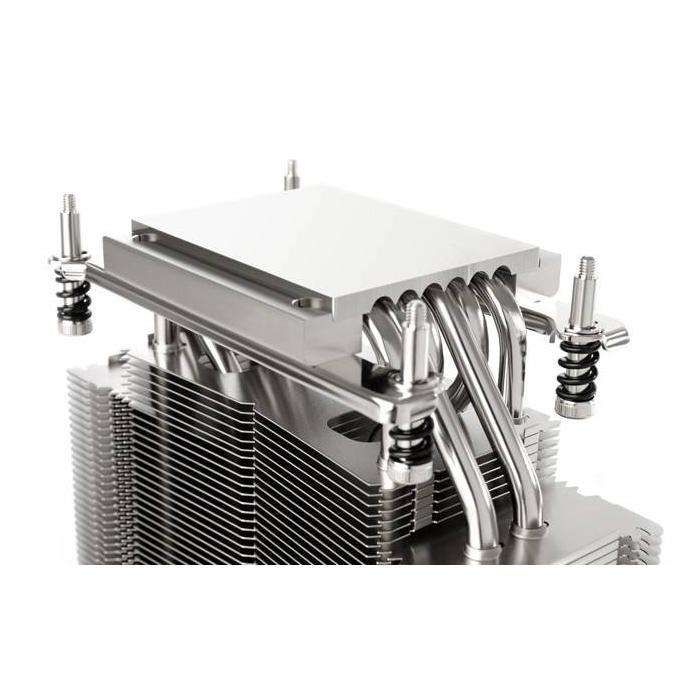

The Noctua NH-U14S TR4-SP3 cooler, finished in aluminium and beige, is a single-fan 14 cm cooler designed for AMD Ryzen processors with TR4 and SP3 sockets. Its seven-blade fan spins between 300 and 1500 RPM, generating an airflow of up to 140.2 m³/h with a maximum noise level of 19.2 dB, which rises to 24.6 dB if the low-noise adapter is used, reducing speed to 1200 RPM and flow rate to 115.5 m³/h. The copper base and aluminium fins work with a self-lubricating SSO bearing to deliver stable, quiet cooling for your CPU.
Specifications
Performance
- Suitable location: Processor
- Type: Cooler
- Fan diameter: 14 cm
- Supported processor sockets: Socket TR4, Socket SP3
- Compatible processor series: AMD Ryzen
- Rotational speed (min): 300 RPM
- Rotational speed (max): 1500 RPM
- Rotational speed with LNA (max): 1200 RPM
- Noise level (high speed): 19.2 dB
- Noise level with LNA (max): 24.6 dB
- Airflow: 140.2 m³/h
- Airflow with LNA (max): 115.5 m³/h
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Design
- Product colour: Aluminium, Beige
- Material: Copper
- Number of fans: 1 fan(s)
- Number of fan blades: 7
- Fins material: Aluminium
- Fan connector: 4-pin
Power
- Power supply: 1.56 W
- Voltage: 12 V
Weight & dimensions
- Width: 150 mm
- Depth: 78 mm
- Height: 165 mm
- Weight: 1.03 kg
- Fan dimensions (W x D x H): 140 x 150 x 25 mm
- Heatsink weight: 865 g
- Package width: 226 mm
- Package depth: 113 mm
- Package height: 217 mm
- Package weight: 1.5 kg
Packaging content
- Low-noise adaptor (LNA): Yes
Other features
- Heatsink dimensions (W x D x H): 150 x 52 x 165 mm
- Mean time to failure (MTTF): 150000 h
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case gross weight: 13 kg
- Products per master (outer) case: 8 pc(s)
