Description

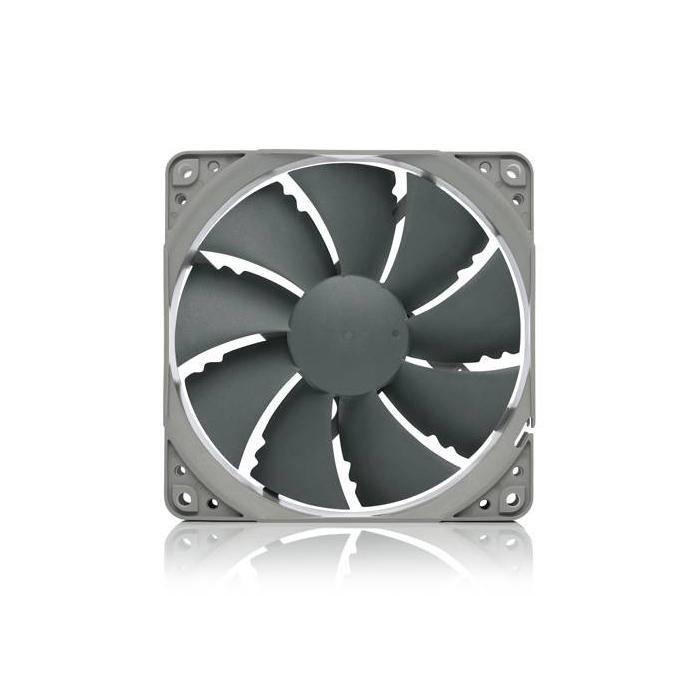

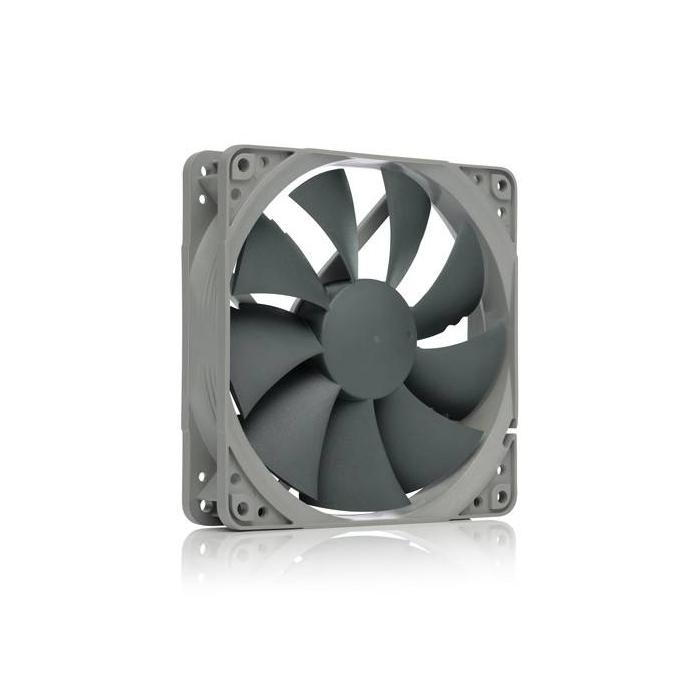

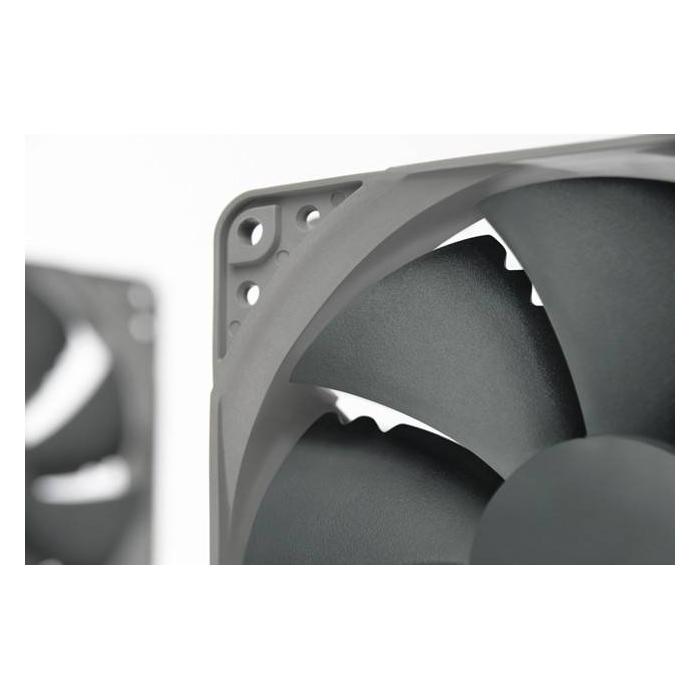

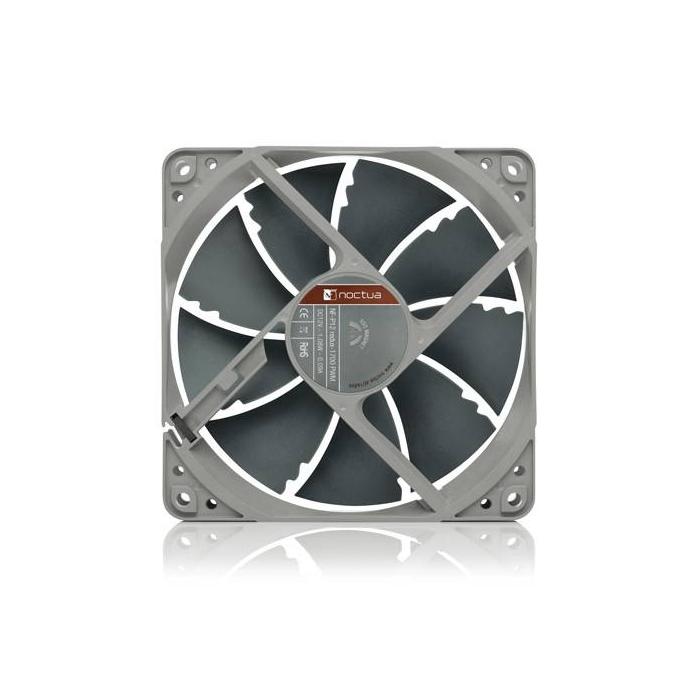

Noctua NF P12 redux-1700 PWM 12 cm fan in grey, designed for the computer case and featuring a single 9-blade fan that spins between 450 and 1700 RPM. This model delivers an airflow of 120.2 m³/h and a maximum static pressure of 2.83 mmH2O, with a noise level of 25.1 dB at high speed. Its 4-pin connector is compatible with pulse-width modulation (PWM) for precise speed control, and it operates at 12 V with a power consumption of 1.08 W. The hydraulic bearing enhances rotational durability, but it is not compatible with processors or sockets, as its sole purpose is case ventilation.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 450 RPM
- Rotational speed (max): 1700 RPM
- Noise level (high speed): 25.1 dB
- Airflow: 120.2 m³/h
- Maximum air pressure: 2.83 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Hydraulic
Design
- Product colour: Grey
- Number of fans: 1 fan(s)
- Number of fan blades: 9
- Fan connector: 4-pin
Power
- Power supply: 1.08 W
- Voltage: 12 V
- Maximum current: 0.09 A
Weight & dimensions
- Width: 120 mm
- Depth: 25 mm
- Height: 120 mm
- Package width: 170 mm
- Package depth: 32 mm
- Package height: 180 mm
- Package weight: 242 g

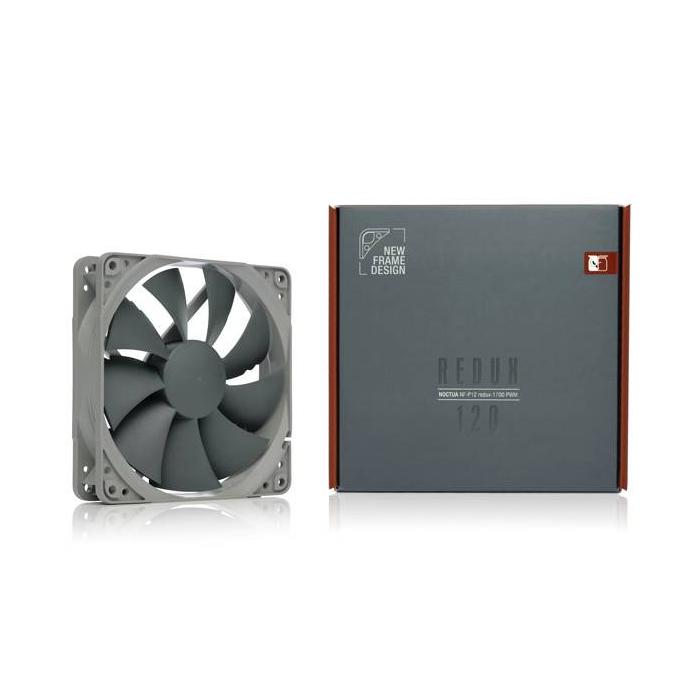

Packaging content
- Screws included: Yes
- Number of screws: 4
Other features
- Mean time to failure (MTTF): 150000 h
Logistics data
- Master (outer) case width: 360 mm
- Master (outer) case length: 370 mm
- Master (outer) case height: 200 mm
- Master (outer) case gross weight: 5.7 kg
- Products per master (outer) case: 20 pc(s)
