Description

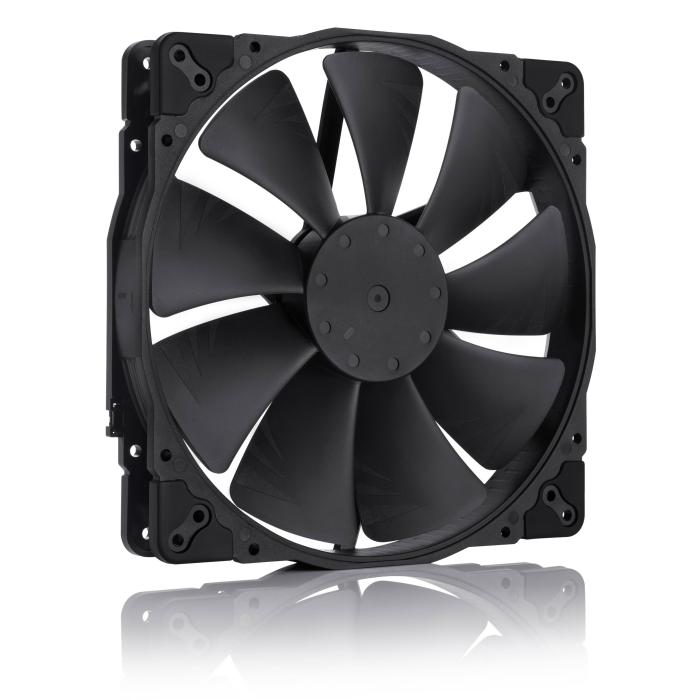

Noctua NF-A20 PWM CH.BK.S 20 cm black computer case fan, designed for your PC case, includes a single fan with SSO bearing and self-lubricating oil pressure. It achieves an airflow of 146.9 m³/h with a maximum speed of 800 RPM and a minimum of 350 RPM, adjustable via its 4-pin connector with PWM support. Its noise level at high speed is 18.9 dB, and it generates a maximum air pressure of 1.08 mmH2O, with an energy consumption of only 0.96 W. It features nine plastic blades, two selectable speeds, and a mean time between failures of 150,000 hours, ideal for quiet and durable cooling in your system.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 20 cm
- Number of speeds: 2
- Rotational speed (min): 350 RPM
- Rotational speed (max): 800 RPM
- Noise level (high speed): 18.9 dB
- Airflow: 146.9 m³/h
- Maximum air pressure: 1.08 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
- Mean time between failures (MTBF): 150000 h
Design
- Product colour: Black
- Material: Plastic
- Number of fans: 1 fan(s)
- Number of fan blades: 9
- Fan connector: 4-pin
Power
- Power consumption (typical): 0.96 W
- Rated voltage: 12 V
- Rated current: 0.08 A
Weight & dimensions
- Width: 200 mm
- Depth: 200 mm
- Height: 30 mm

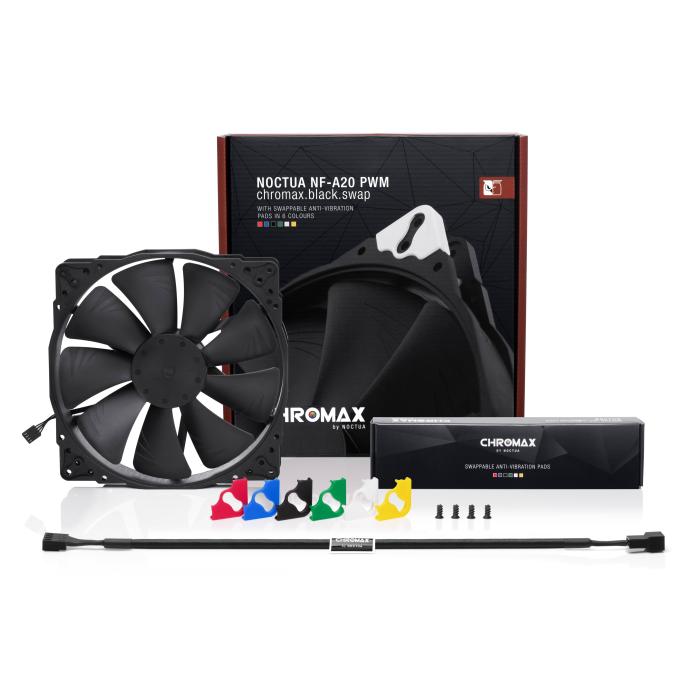

Packaging content
- Screws included: Yes
- Number of screws: 4
Logistics data
- Harmonized System (HS) code: 84733080
