Description

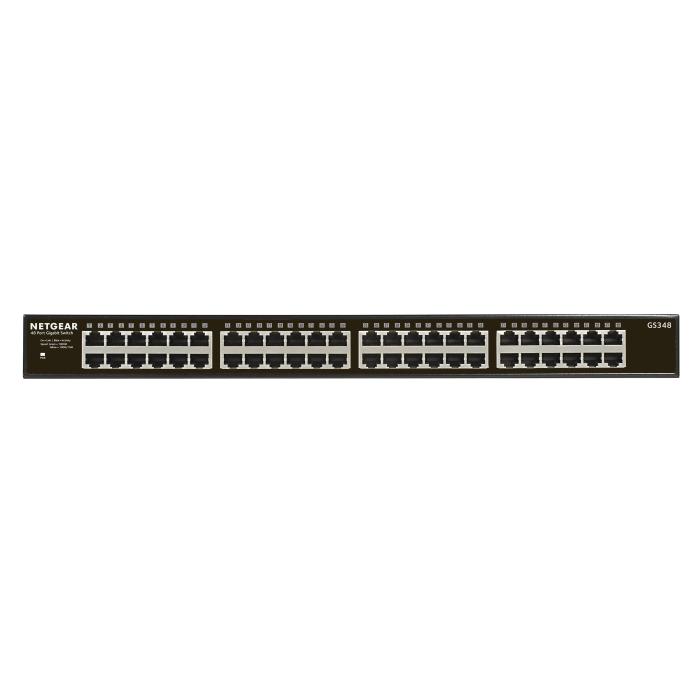

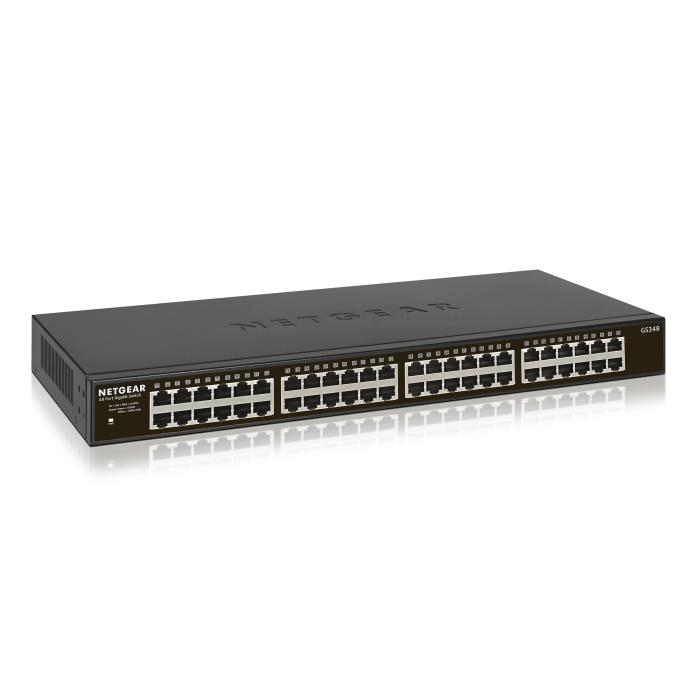

The NETGEAR GS348 switch is an unmanaged device in black that offers 48 Gigabit Ethernet (10/100/1000) ports to connect a multitude of wired devices. It includes quality of service (QoS) and auto MDI/MDI-X functions, as well as compatibility with the IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u and IEEE 802.3x standards. Its switching capacity reaches 96 Gbit/s, with a packet forwarding rate of 1448000 pps and a latency of 4 µs at 1 Gbps. It supports Jumbo frames of up to 9216 bytes and manages a MAC address table of 16000 entries. Its 1U format allows rack mounting, and its dimensions of 440 x 43.2 x 204 mm (width x height x depth) with a weight of 3.15 kg make it easy to install in communications cabinets. Power is supplied via a DC input socket.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- Switching capacity: 96 Gbit/s
- MAC address table: 16000 entries
- Latency (1 Gbps): 4 µs
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet forwarding rate (1 Gbps): 1448000 pps
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Activity, Link, Power
Performance
- Plug and Play: Yes
Power
- Power source: AC
- AC input voltage: 110 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 1 A
- Power consumption (typical): 8.81 W
- Power consumption (max): 23 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Heat dissipation: 7866 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 204 mm
- Height: 43.2 mm
- Weight: 3.15 kg
Logistics data
- Harmonized System (HS) code: 85176990
