Description

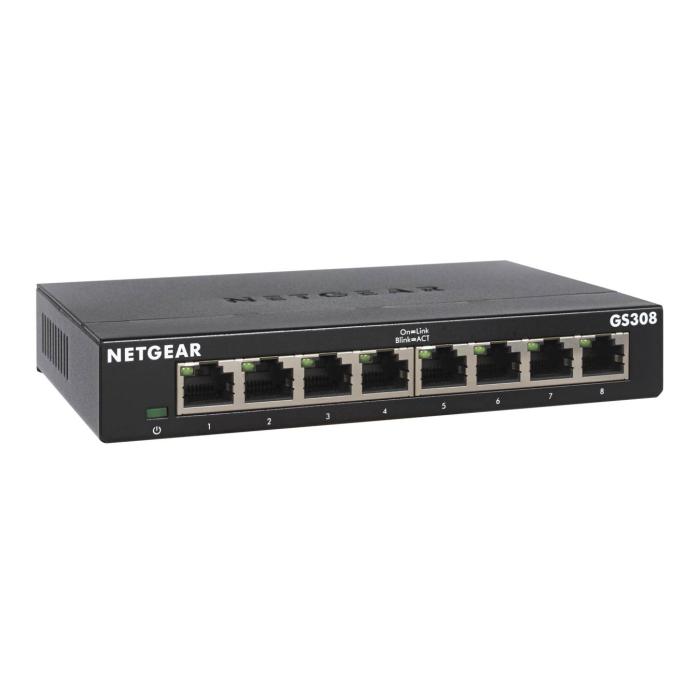

The NETGEAR GS308-300PES is an unmanaged Layer L2 switch with eight Gigabit Ethernet (10/100/1000) ports in black and a weight of 390 g. Its dimensions are 158 x 29 x 101 mm, so it takes up very little space on any desktop or small rack. The eight RJ-45 Ethernet ports offer Gigabit switching and support the IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i and IEEE 802.3u standards. It includes practical features such as auto-detection, auto MDI/MDI-X and cable length detection, which simplify installation. It also supports flow control and quality of service (QoS), useful for prioritising sensitive traffic. Its MAC address table supports up to 8000 entries and the switching capacity reaches 16 Gbit/s. The forwarding rate is 1,448 Mpps and it has Jumbo Frame support. Power is supplied via a DC input jack.
Specifications
Management features
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8

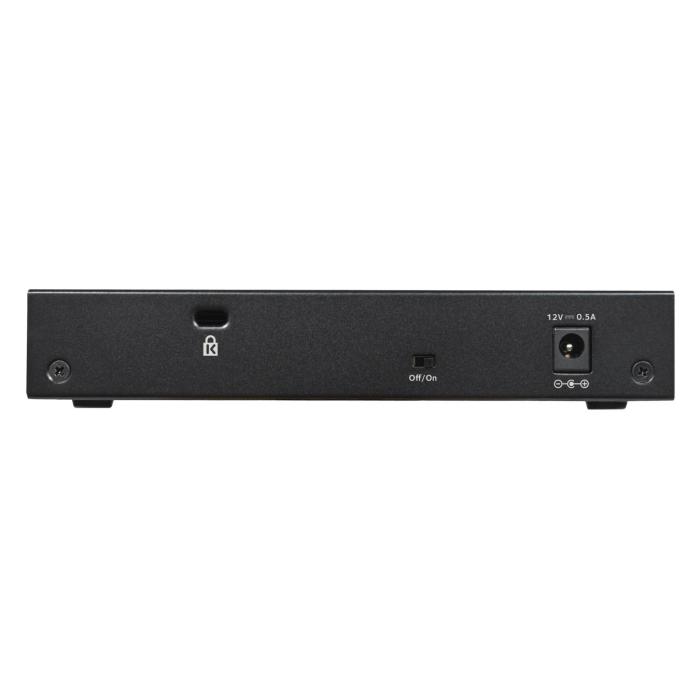

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-sensing: Yes
- Cable length detection: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 1.448 Mpps
- MAC address table: 8000 entries
- Latency (1 Gbps): 2.6 µs
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 128 MB
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, Power
- Wall mountable: Yes
Performance
- Mean time between failures (MTBF): 3711898 h
Power
- Power consumption (max): 3.04 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 10.4 BTU/h
Weight & dimensions
- Width: 158 mm
- Depth: 101 mm
- Height: 29 mm
- Weight: 390 g
Certificates
- Certification: CE Mark FCC Part 15 Class B IC Class B RCM CCC VCCI KC
Logistics data
- Harmonized System (HS) code: 85176990
