Description

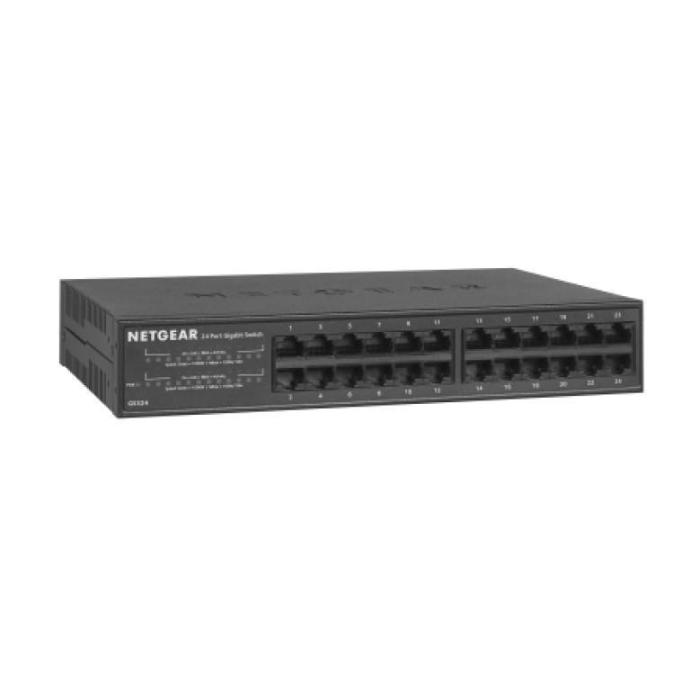

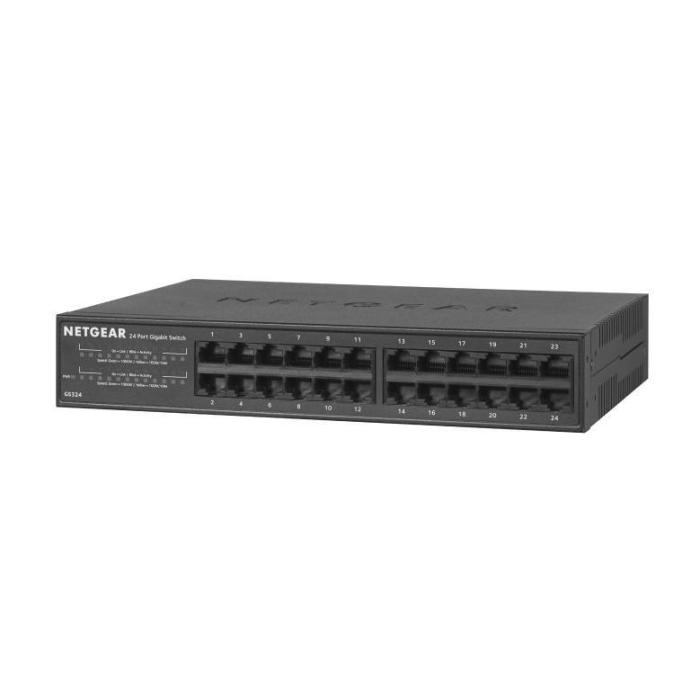

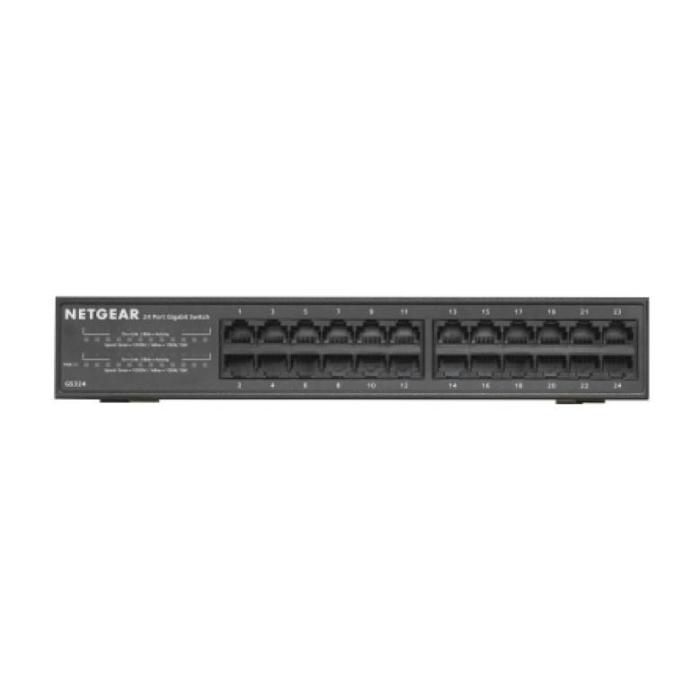

The NETGEAR GS324 switch is an unmanaged device with 24 RJ-45 Gigabit Ethernet (10/100/1000) ports that connects multiple computers on a wired local network. It offers a switching capacity of 48 Gbit/s and a packet forwarding rate of 1448000 pps, with a latency of 4.7 µs. It includes QoS support, auto-detection and Auto MDI/MDI-X, as well as a MAC address table of 8000 entries and Jumbo frames of 9216. Its supported network standards include IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u and IEEE 802.3x, with support for Cat5 cables. It features LED indicators for activity, link, power and speed, and supports rack mounting. It comes in black, with dimensions of 252 x 44 x 180 mm (width x height x depth) and a weight of 1.31 kg.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Cable types supported: Cat5
- Auto MDI/MDI-X: Yes
- Auto-sensing: Yes
Data transmission
- Switching capacity: 48 Gbit/s
- MAC address table: 8000 entries
- Latency (1 Gbps): 4.7 µs
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet forwarding rate (1 Gbps): 1448000 pps
- Packet buffer memory: 0.512 MB
Design
- Rack mounting: Yes
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, Power, Speed
- Wall mountable: Yes
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 620798 h
Power
- Power supply included: Yes
- AC input voltage: 110 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 1 A
- Power consumption (max): 11.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 37.96 BTU/h
Weight & dimensions
- Width: 252 mm
- Depth: 180 mm
- Height: 44 mm
- Weight: 1.31 kg
Packaging content
- Cables included: AC
- Manual: Yes
Certificates
- Certification: CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD
Logistics data
- Harmonized System (HS) code: 85176990
