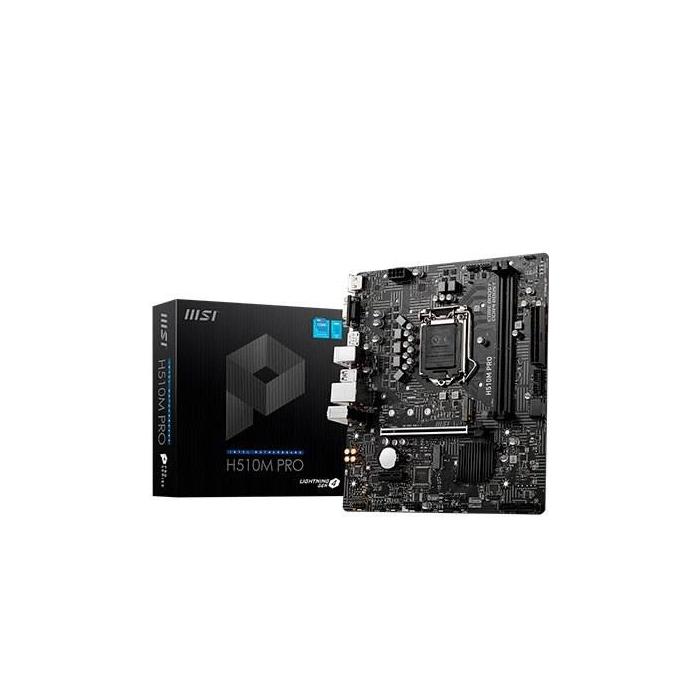

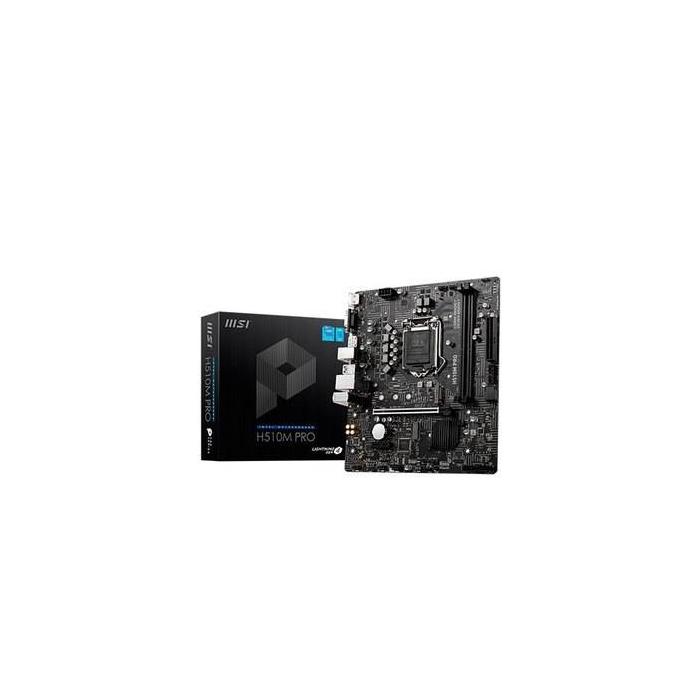

MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX

Product 1 image

Product 2 image

Product 3 image

MSI PRO H510M-B motherboard Intel H470 LGA 1200 (Socket H5) micro ATX

Not avaliable

Amount

Brand: MSI

SKU: 115404 PRC: 432126 EAN: 4711377078870 PN: 911-7E05-004

Description

MSI PRO H510M-B, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR4-SDRAM, 64 GB, DIMM

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2933 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Chassis intrusion connector: Yes
Number of COM connectors: 1
TPM connector: Yes
RGB LED pin header: Yes

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111H

Features

Motherboard chipset: Intel H470
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1

Weight & dimensions

Width: 202 mm
Depth: 236 mm
