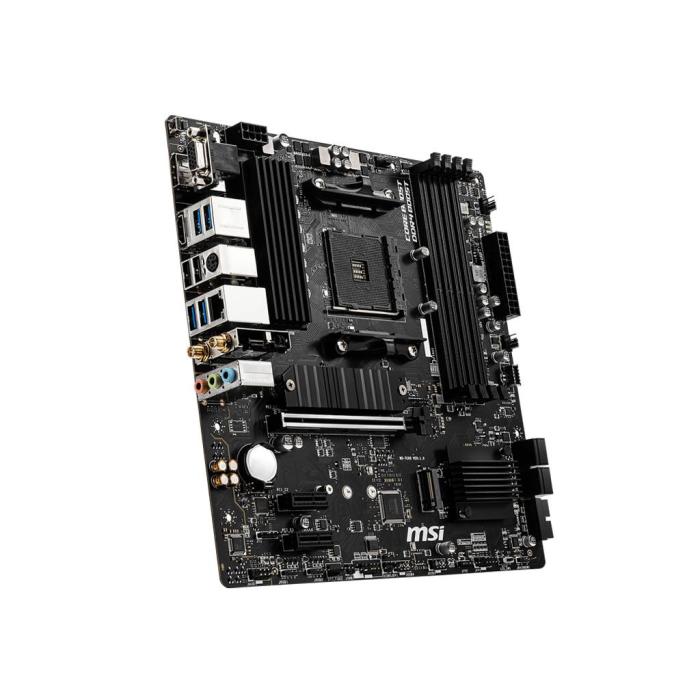

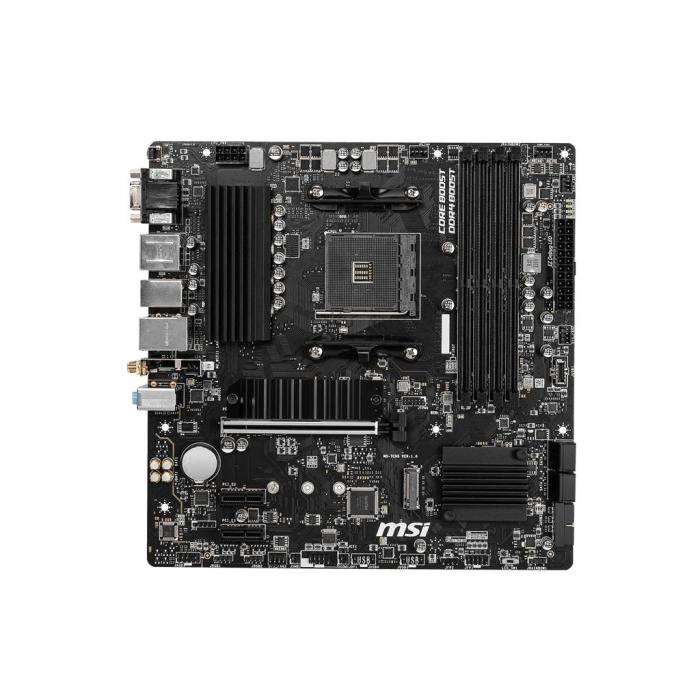

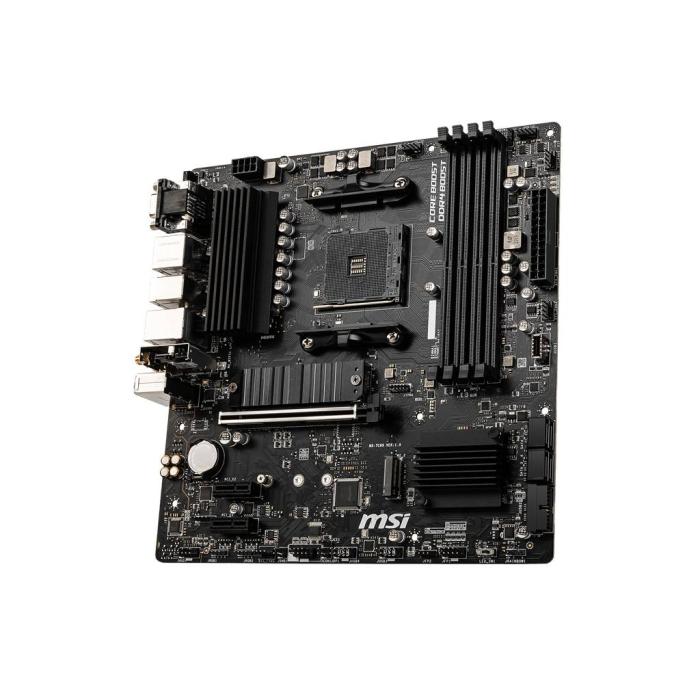

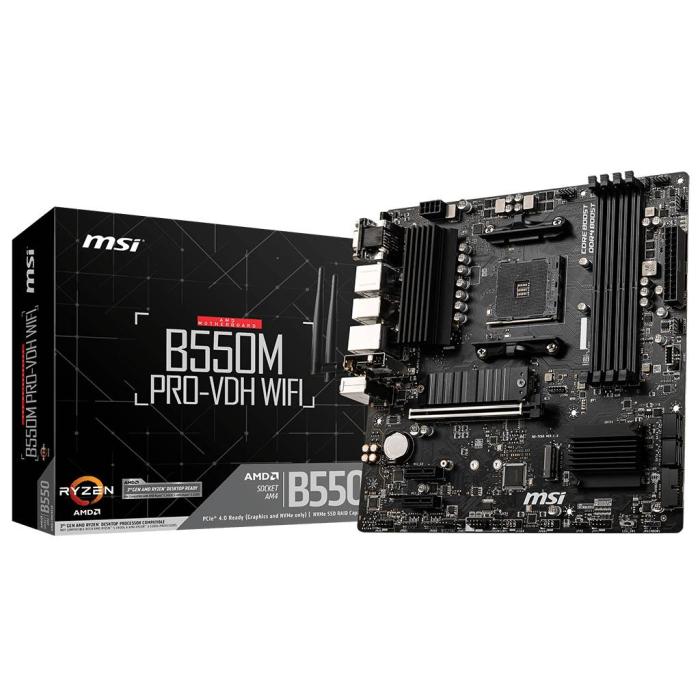

MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX

113.00 €

93.39 € without VAT

Amount

Brand: MSI

SKU: 84915 PRC: 291119 EAN: 4719072733698 PN: 7C95-001R

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Maximum graphics card memory: 16000 MB
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Serial port headers: 1
12V power connector: Yes
RGB LED pin header: Yes

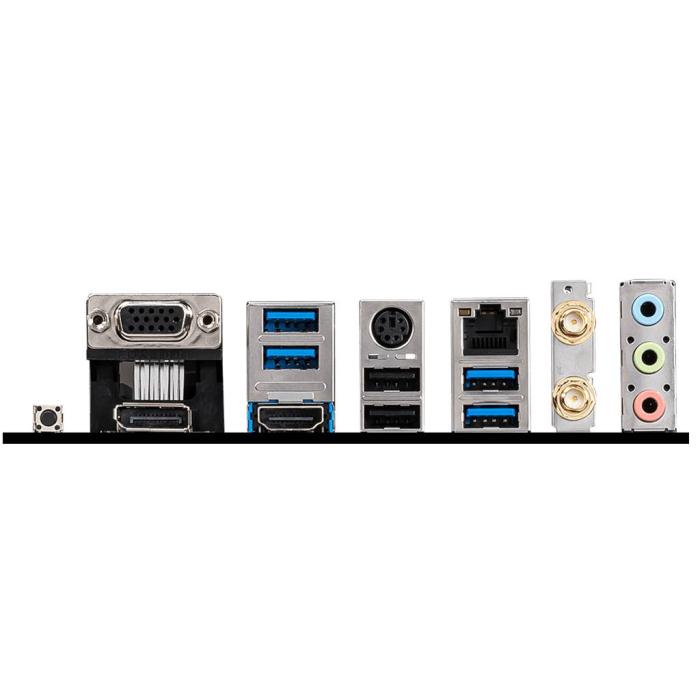

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
WiFi-AP antenna jack: 2

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111HN
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth: Yes
Bluetooth version: 4.2

Features

Motherboard chipset: AMD B550
Audio chip: Realtek ALC892
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Number of mounting holes: 8

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 65 mm

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 1 kg
