Description

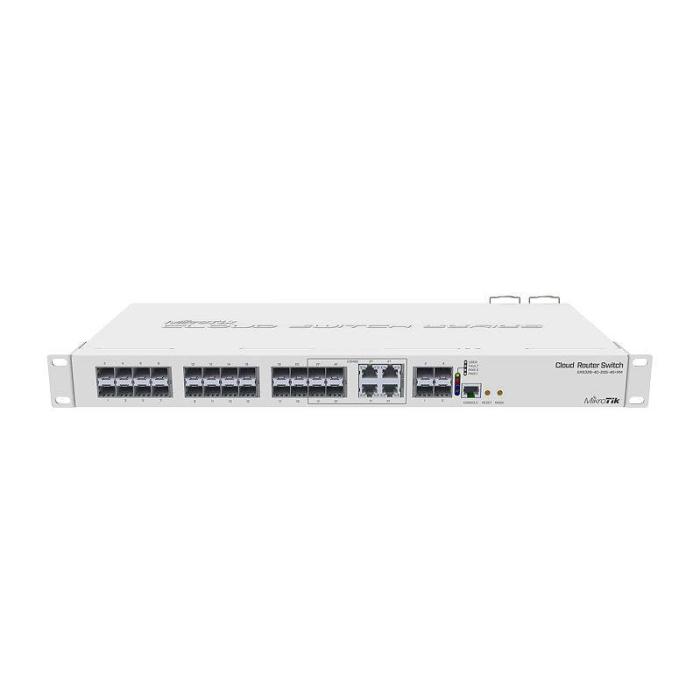

Managed L2/L3 switch in 1U rack format with a white finish, the Mikrotik CRS328-4C-20S-4S+RM offers a total of 20 SFP slots and 4 SFP+ slots for optical connectivity of up to 10G, plus 4 combo SFP ports for added flexibility. Its switching capacity reaches 128 Gbit/s, with a MAC address table of 16000 entries and jumbo frames of 10218 bytes. It includes VLAN support, link aggregation, storm control, port mirroring and IGMP, managed via an RJ-45 console port.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2/L3
Ports & interfaces
- Combo SFP ports quantity: 4
- SFP module slots quantity: 20
- SFP+ module slots quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.3ad
- 10G support: Yes
- Port mirroring: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 128 Gbit/s
- Forwarding rate: 95.2 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10218
Security
- Access Control List (ACL): Yes
- IGMP snooping: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: White
- LED indicators: Yes
Performance
- Built-in processor: Yes
- Processor frequency: 800 MHz
- Internal memory: 512 MB
- Flash memory: 16 MB
Power
- Power supply included: Yes
- Number of power supply units: 1
- AC input voltage: 100 - 240 V
- Power consumption (max): 43 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 443 mm
- Depth: 44 mm
- Height: 200 mm
Packaging content
- Cables included: AC
- Rack mount kit: Yes
