Description

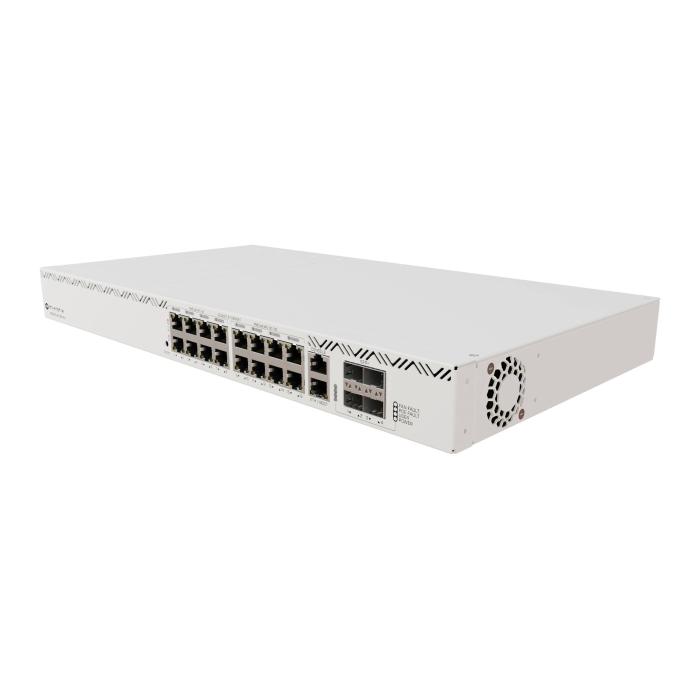

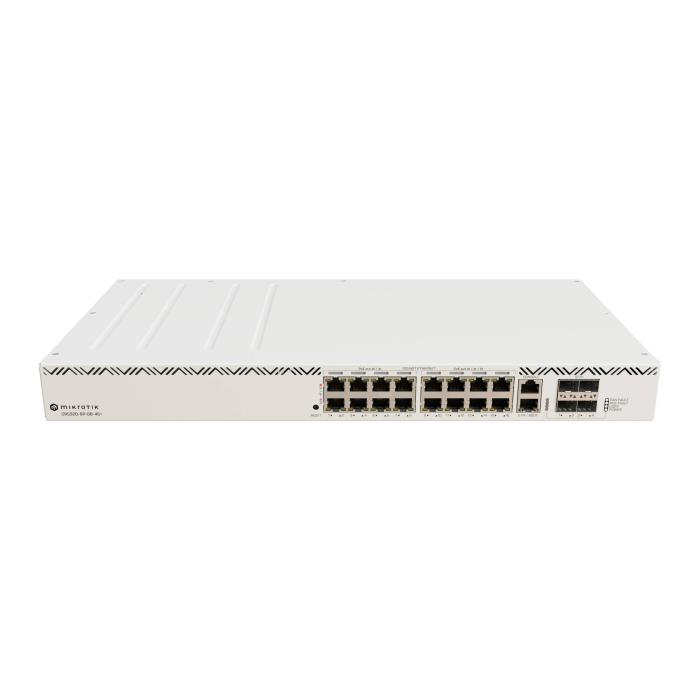

The Mikrotik CR320S-8P-8B-4S+RM switch offers 17 basic RJ-45 Gigabit Ethernet (10/100/1000) switching ports and 4 SFP+ slots for 10G support, with a rack-mountable design. This unit includes PoE power delivery according to IEEE 802.3af and IEEE 802.3at standards, as well as an RJ-45 console port and a reset button for easy management. It features an 800 MHz ARM processor with model 98DX226S, 256 MB of internal memory and 32 MB of flash memory, running the RouterOS operating system, ensuring a mean time between failures of 200,000 hours. With an AC input voltage of 100-240 V and a frequency of 50/60 Hz, this Mikrotik switch is ready to integrate into demanding networks.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 17
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.3af, IEEE 802.3at
- 10G support: Yes
Design
- Rack mounting: Yes
- Reset button: Yes
Performance
- Operating system installed: RouterOS
- Built-in processor: Yes
- Processor manufacturer: ARM
- Processor model: 98DX226S
- Processor frequency: 800 MHz
- Internal memory: 256 MB
- Flash memory: 32 MB
- Mean time between failures (MTBF): 200000 h
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (typical): 36 W
- Power consumption (max): 600 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): -10 - 50 °C
Weight & dimensions
- Width: 444 mm
- Depth: 235 mm
- Height: 44 mm
Certificates
- Compliance certificates: CE, EAC, RoHS
