Description

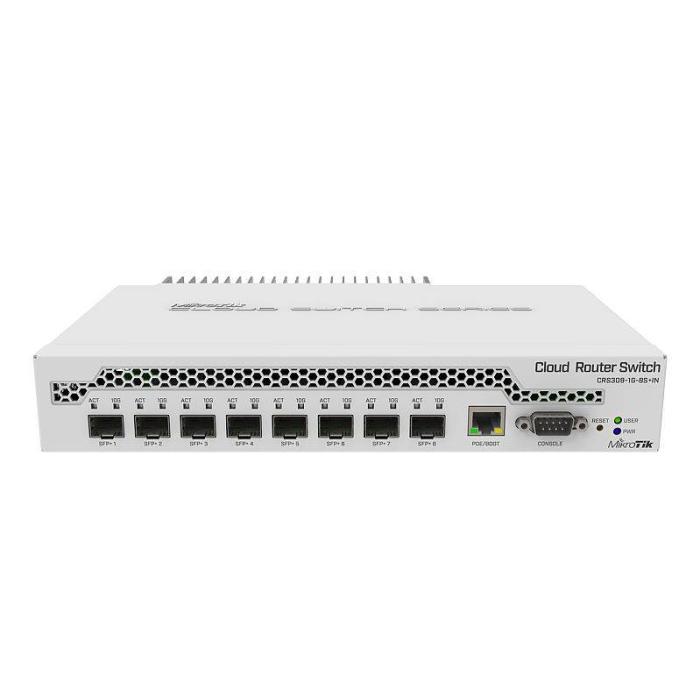

The Mikrotik CRS309-1G-8S+ switch in white is a managed model offering eight SFP+ slots for 10G links and one RJ-45 Gigabit Ethernet port, ideal for integrating high-speed networks. It includes an RS-232 console port for local administration and supports Power over Ethernet according to IEEE 802.3af and IEEE 802.3at standards, with a maximum power consumption of 23 W. Its 800 MHz processor and 512 MB of internal RAM, along with 16 MB of flash memory, enable switching at 162 Gbit/s, all in a rack-mountable chassis. This unit is designed for advanced network traffic management, with support for IEEE 802.3af/at network standards and connection via a DC input socket with an output current of 1.2 A.
Specifications
Management features
- Switch type: Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 1
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 8
- Console port: RS-232
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3af, IEEE 802.3at
- 10G support: Yes
Data transmission
- Switching capacity: 162 Gbit/s
Design

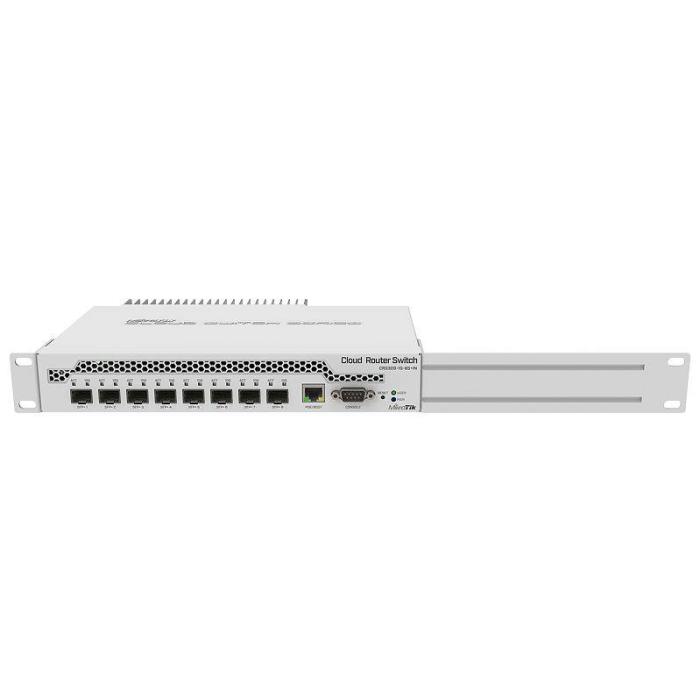

- Rack mounting: Yes
- Product colour: White
Performance
- Built-in processor: Yes
- Processor frequency: 800 MHz
- Memory type: RAM
- Internal memory: 512 MB
- Flash memory: 16 MB
Power
- DC input voltage: 12 - 57 V
- Output current: 1.2 A
- Power consumption (max): 23 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) voltage range: 18 - 57 V
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Weight & dimensions
- Width: 141 mm
- Depth: 115 mm
- Height: 28 mm
Packaging data

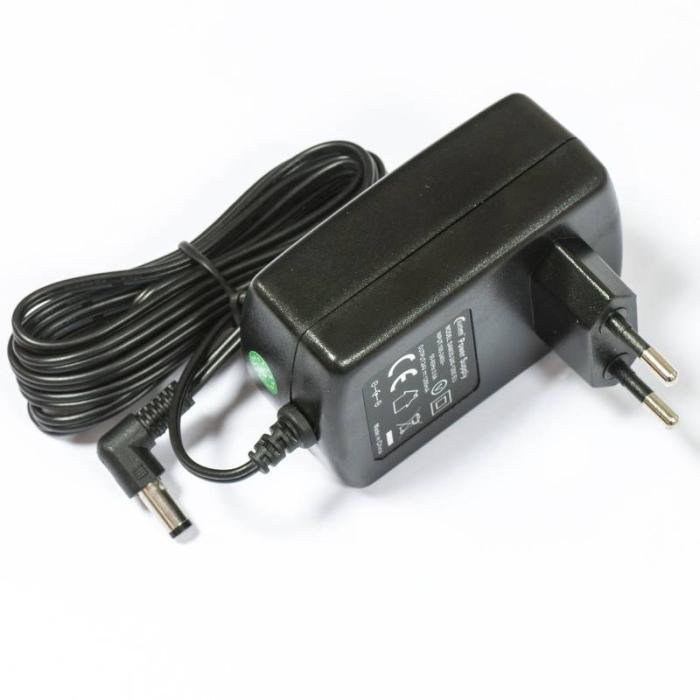

- AC adapter included: Yes

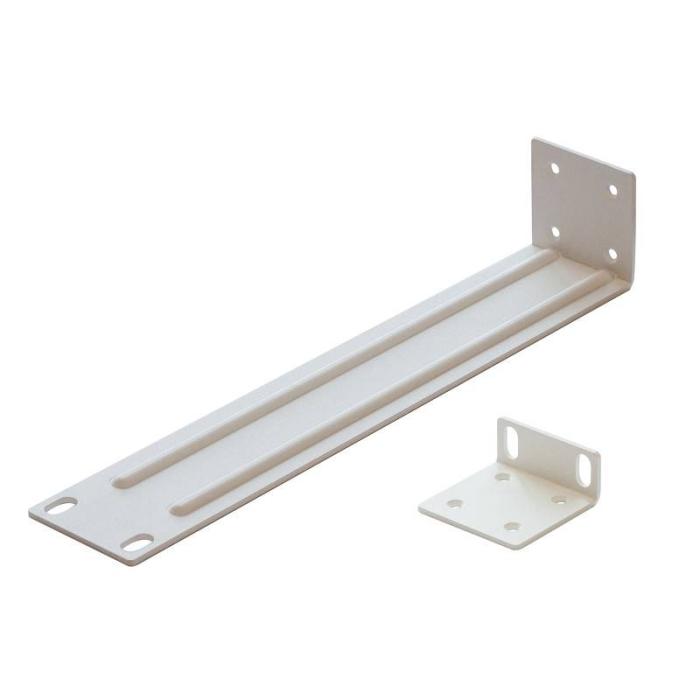

- Mounting brackets included: Yes

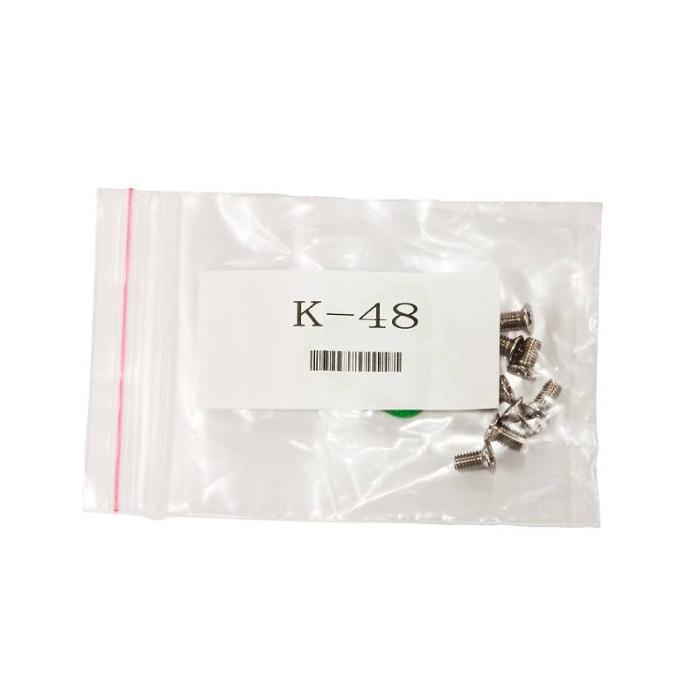

- Screws included: Yes
