Description

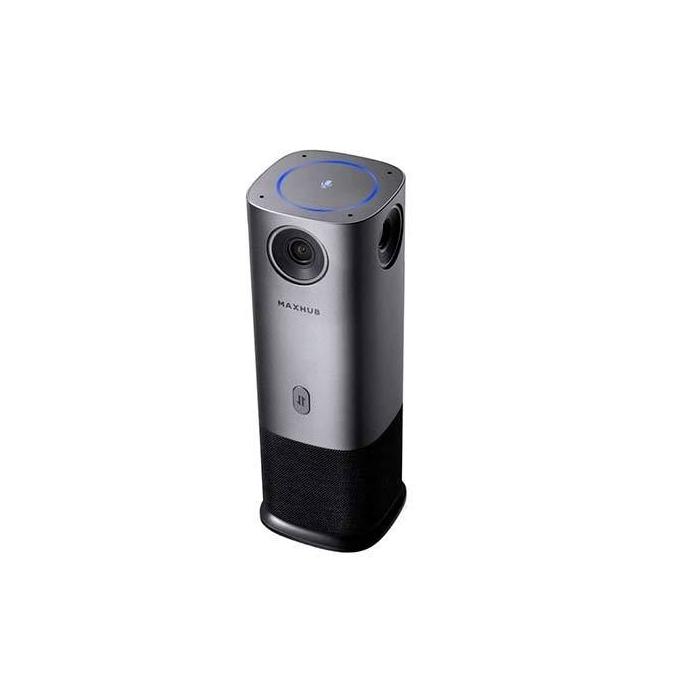

The MAXHUB UC M40 video conferencing camera in black features a 5 MP CMOS sensor with a 1/2.7" size, offering a maximum video resolution of 2560 x 1440 pixels at 30 fps and 2K Ultra HD quality. Its lens with an F/2.5 aperture provides a 140° field of view, with a horizontal field of 111° and vertical of 85°, while its optical zoom and PTZ UVC protocols enable flexible framing. The 75 dB signal-to-noise ratio and supported MJPG and YUY2 formats ensure a sharp image in work environments. It connects easily via the DC input jack and supports graphic resolutions from 640 x 360 up to 2560 x 1440, adapting to various video call needs.
Specifications
Camera
- Megapixel (approx.): 5 MP
- Sensor type: CMOS
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Zoom capability: Yes
- Focal length range: 2.49 mm
- Field of view (FOV) angle: 140°
- Horizontal field of view: 111°
- Vertical field of view: 85°
- Signal-to-Noise Ratio (SNR): 75 dB
- F-number (relative aperture): 2.5
- PTZ protocols: UVC
Video
- HD type: 2K Ultra HD
- Maximum video resolution: 2560 x 1440 pixels
- Maximum frame rate: 30 fps
- Video formats supported: MJPG, YUY2
- Supported graphics resolutions: 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440
Design
- Product colour: Black
Ports & interfaces
- USB 2.0 ports quantity: 1
- DC-in jack: Yes
Power
- Power source type: DC
- DC input voltage: 12 V
- Input current: 1 A
- Power consumption (max): 8 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
Packaging content
- Cables included: USB
- Quick start guide: Yes
- AC adapter included: Yes
System requirements
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Other operating systems supported: Linux
- Mobile operating systems supported: Android
- Minimum system requirements: Minimum hardware： Intel 4th generation I5 above, RAM of 4GB above Macbook Pro(2013) above, with RAM of 4GB or above Recommende
Performance
- Auto framing: Yes
- Auto-tracking: Yes
Audio
- Number of microphone arrays: 4
- Microphone frequency response: 200 - 8000 Hz
- Microphone Total Harmonic Distortion (THD): 5%
- Built-in speaker(s): Yes
- Speaker frequency range: 200 - 15000 Hz
- Microphone pick-up range: 5 m
Technical details
- Warranty period: 3 year(s)
Weight & dimensions
- Width: 67.6 mm
- Depth: 182.3 mm
- Height: 67.5 mm
- Weight: 450 g
Packaging data
- Package width: 165 mm
- Package depth: 515 mm
- Package height: 91 mm
