Name: Sony SRG-A12 8.5 MP White 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5'')
Brand: SONY
Price: 3094.58 USD
Availability: InStock

Sony SRG-A12 8.5 MP White 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5'')

$3,094.58

$3,094.58 without VAT

Sony SRG-A12, 8.5 MP, CMOS, 4K Ultra HD, 3840 x 2160 pixels, 60 fps, 12x. More info

Amount

Brand: SONY

SKU: 103514 PRC: 473759 EAN: 5013493458659 PN: SRG-A12WC

Description

Sony SRG-A12, 8.5 MP, CMOS, 4K Ultra HD, 3840 x 2160 pixels, 60 fps, 12x

Specifications

Camera

Camera type: Single camera
Megapixel (approx.): 8.5 MP
Sensor type: CMOS
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Zoom capability: Yes
Optical zoom: 12x
Focal length range: 4.4 - 52.8 mm
Horizontal field of view (wide): 70°
Minimum illumination: 1.6 lx
Flip & mirror: Yes
Aperture range (F-F): 2 - 3.7
White balance: Indoor, One push, Outdoor, Auto, Manual, Daylight
Auto exposure: Yes
Light exposure modes: Manual, Auto, Shutter priority AE
Focus adjustment: Auto/Manual
Gain control type: Auto/Manual
PTZ control: Yes
PTZ protocols: VISCA
Minimum working distance (wide): 8 cm
Maximum working distance (tele): 40 cm
Slowest camera shutter speed: 1 s
Fastest camera shutter speed: 1/10000 s

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 60 fps
Video formats supported: H.264, H.265
Supported graphics resolutions: 3840 x 2160, 1920 x 1080 (HD 1080), 640 x 360, 1280 x 720 (HD 720)
Number of TV lines: 1700

Design

Product colour: White
Image stabilizer: Yes
Tilt angle range: -20 - 90°
Pan range: -170 - 170°
Tally light: Yes
Tilt speed (min): 0.5 °/sec
Tilt speed (max): 126 °/sec
Pan speed (min): 0.5 °/sec
Pan speed (max): 300 °/sec

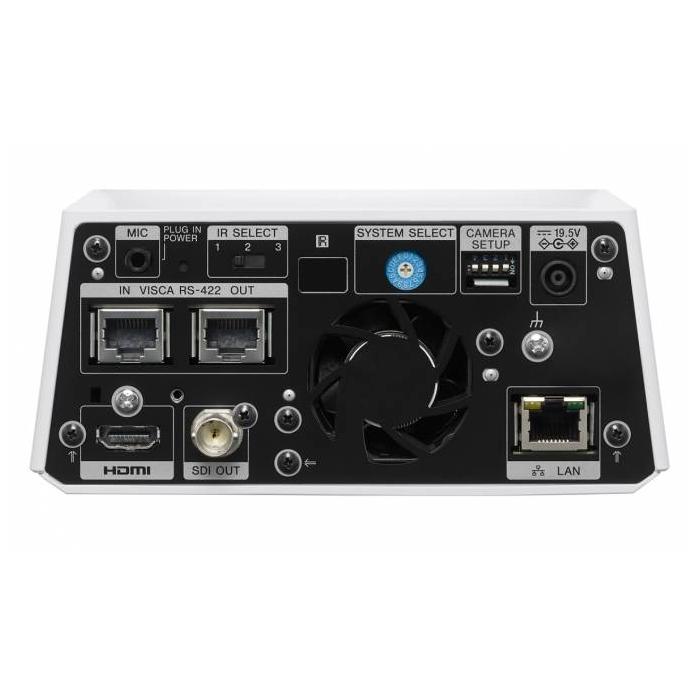

Ports & interfaces

HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
3G-SDI output: Yes
Microphone in: Yes
VISCA output ports: 1
VISCA input ports: 1

Power

Power source type: AC, DC
DC input voltage: 19.5 V
Power consumption (typical): 80 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Packaging content

Power supply included: Yes
Cables included: AC, HDMI
Warranty card: Yes
Screws included: Yes
Mounting brackets included: Yes

System requirements

Windows operating systems supported: Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Performance

Auto framing: Yes

Audio

Audio channels: 2
Audio codecs: AAC LC 256kbps/ST (IP), AAC LC 128kbps/ST(IP)

Network

Multi-stream capability: 3
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate range: 512 - 50000 Kbit/s
Supported network protocols: IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT
