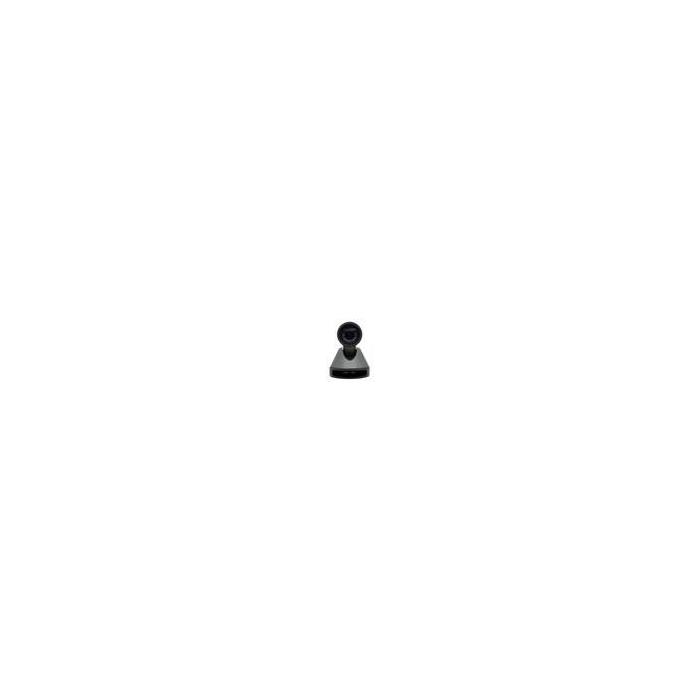

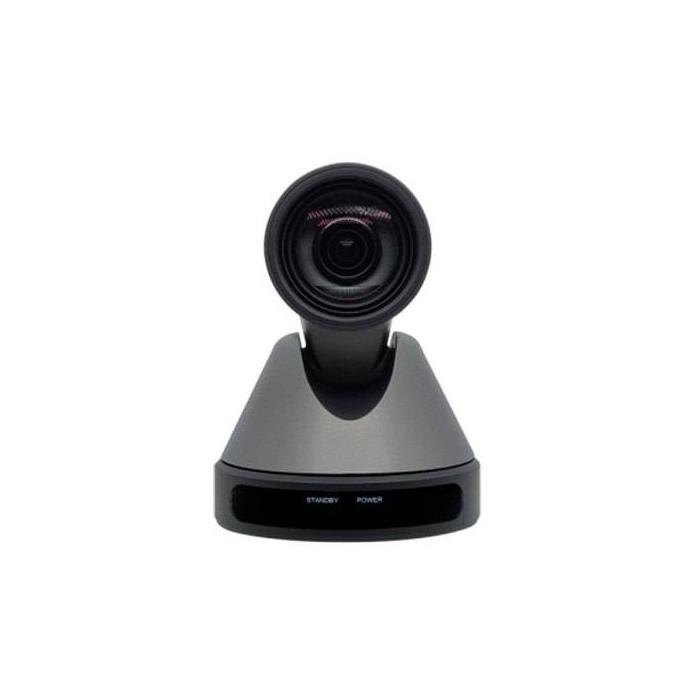

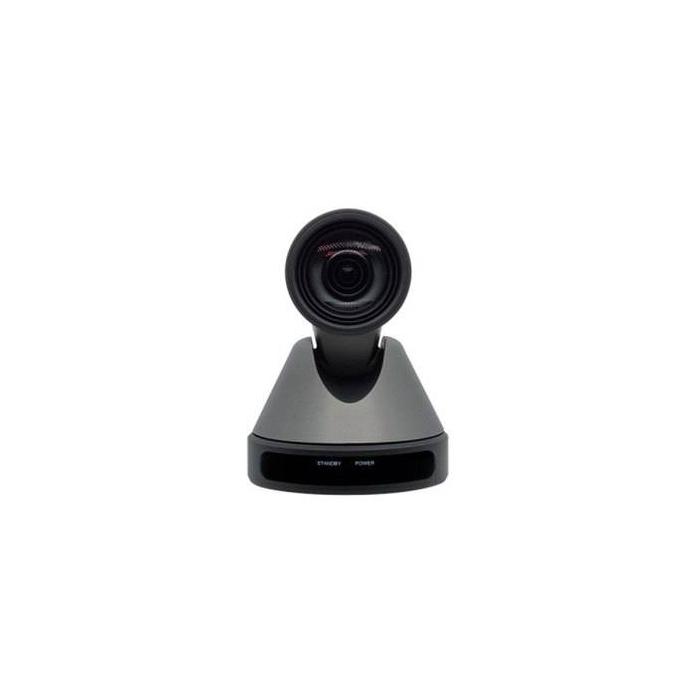

MAXHUB P25 8 MP Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5'')

Name: MAXHUB P25 8 MP Black 3840 x 2160 pixels 60 fps CMOS 25.4 / 2.5 mm (1 / 2.5'')
Brand: MAXHUB
SKU: 442320
Price: 634.06 EUR
Availability: InStock

More info

Brand: MAXHUB

634.06 €

524.02 € without VAT

Stock available: 2 units.

Get it on the September 1 / September 2

SKU: 115460 PRC: 442320 EAN: 6927433603377 PN: UC P25

Description

The black MAXHUB P25 camera features an 8-megapixel CMOS sensor and 3840 x 2160 pixel resolution at 60 fps, with a sensor size of 25.4 / 2.5 mm (1 / 2.5"), delivering sharp image quality for video conferencing environments. It includes 12x optical zoom and 16x digital zoom, with an 82.8° field of view and horizontal and vertical fields of 71° and 42.7° respectively, adapting to various room setups. Its PTZ control supports UVC, ONVIF, Pelco-P/D and VISCA protocols, with 255 presets, and its aperture range of 1.8 - 2.6 allows capture with minimum illumination of 0.5 lx.

Specifications

Camera

Camera type: Single camera
Megapixel (approx.): 8 MP
Sensor type: CMOS
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Zoom capability: Yes
Optical zoom: 12x
Digital zoom: 16x
Focal length range: 4.4 - 52.8 mm
Field of view (FOV) angle: 82.8°
Horizontal field of view: 71°
Vertical field of view: 42.7°
Minimum illumination: 0.5 lx
Aperture range (F-F): 1.8 - 2.6
Wide Dynamic Range (WDR): Yes
Number of camera presets: 255
Gain control type: Auto/Manual
PTZ control: Yes
PTZ protocols: UVC, ONVIF, Pelco-P/D, VISCA
3D NR (Noise Reduction): Yes

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 60 fps
Supported video modes: 720p, 1080i, 1080p, 2160p
Video formats supported: H.264, H.265, M-JPEG
Supported graphics resolutions: 320 x 240, 480 x 320, 640 x 360, 640 x 480 (VGA), 720 x 480, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 384

Design

Product colour: Black
Tilt angle range: -30 - 30°
Pan range: -170 - 170°
Tilt speed (min): 0.5 °/sec
Tilt speed (max): 15 °/sec
Pan speed (min): 1.6 °/sec
Pan speed (max): 76 °/sec

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 1.4
USB 2.0 ports quantity: 1
BNC output ports: 1
RS-232 ports: 2
RS-232 input ports: 1
RS-232 output ports: 1
RS-485 ports: 1
Ethernet LAN (RJ-45) ports: 1
VISCA output ports: 2
VISCA input ports: 1
Line-in: Yes

Power

Power source type: DC
DC input voltage: 12 V
Input current: 1 A
Power consumption (max): 12 W

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Storage temperature (T-T): -40 - 60 °C

Packaging content

Remote control included: Yes
Cables included: USB
USB cable length: 2 m
Screws included: Yes
AC adapter included: Yes
Mounting brackets included: Yes

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes

Performance

Remote control function: Yes
Remote control type: IR
Plug and Play: Yes

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates: 10,100,1000 Mbit/s
Streaming capability: Yes
Bit rate range: 96 - 128 Kbit/s
Supported protocols: TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
