Description

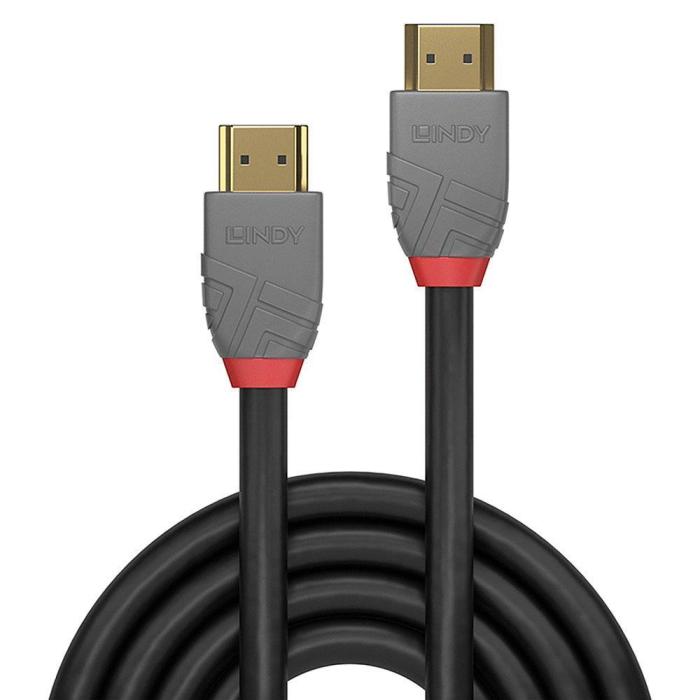

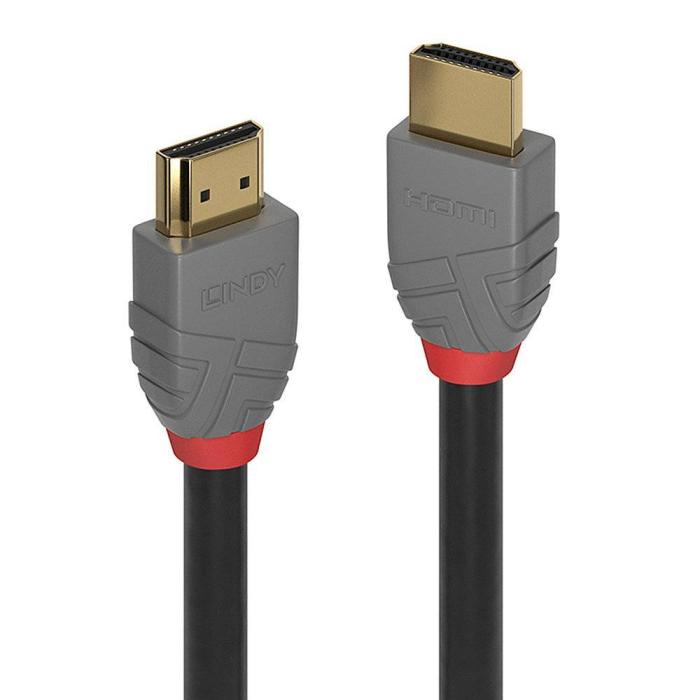

The LINDY HDMI cable, model 36966, is a 7.5 m long cable with standard type A HDMI male connectors at both ends. Its HDMI 2.0 version allows a data transfer speed of 10.2 Gbit/s and a maximum refresh rate of 60 Hz, with 4:2:0 colour sampling. The cable conductor is copper with AWG 24 gauge, while the plate is aluminium and the contacts are phosphor bronze with gold plating. The cable sheath and connector casing are made of polyvinyl chloride (PVC). It is available in black and grey, a understated finish that pairs well with living room equipment or fixed installations. Its nominal attenuation remains controlled across the entire frequency range, from 300 kHz to 5.1 GHz, which helps preserve signal integrity over long runs. It thus connects sources and displays compatible with HDMI 2.
Specifications
Features
- Cable length: 7.5 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black, Grey
- HDMI version: 2.0
- 3D: Yes
- Supported graphics resolutions: 3840 x 2160
- Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
- Data transfer rate: 10.2 Gbit/s
- Maximum refresh rate: 60 Hz
- AWG wire size: 24
- Contact material: Phosphor bronze
- Connector contacts plating: Gold
- Connector housing material: Polyvinyl chloride (PVC)
- Cable material: Copper
- Cable type: Round cable
- Cable jacket material: Polyvinyl chloride (PVC)
- Shield material: Aluminium
- Bending radius (min): 9.8 cm
- Colour sampling: 4:2:0
- Nominal attenuation: 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Compliance certificates: RoHS
- Certification: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 9.8 mm
- Connector 1 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm
- Connector 2 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm
Packaging data
- Package type: Polybag
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
