Description

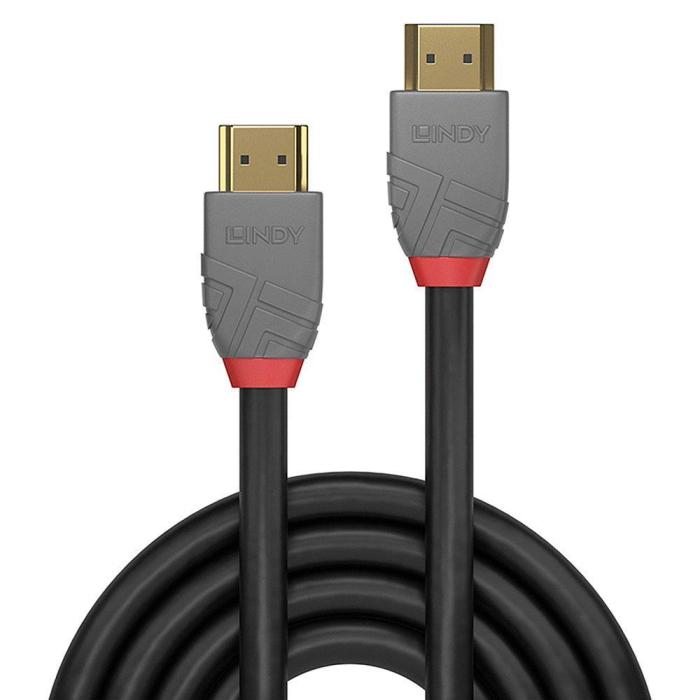

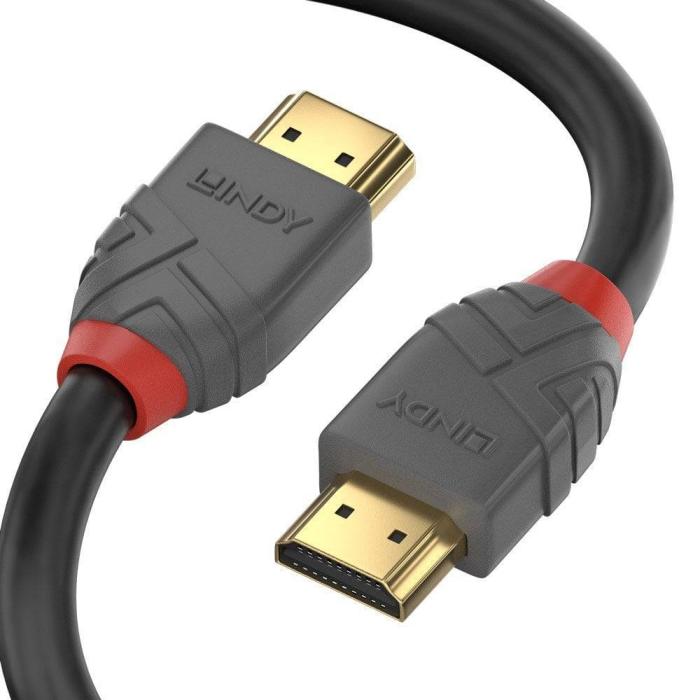

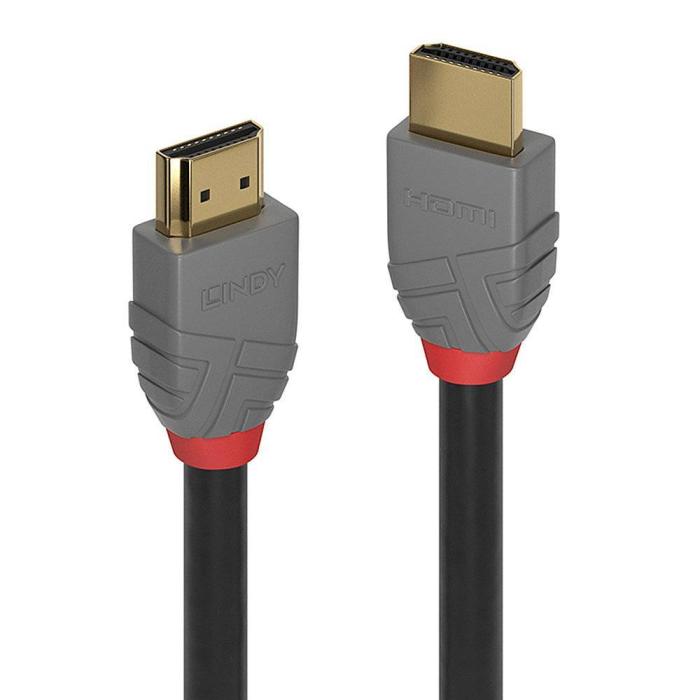

The LINDY HDMI 2.0 cable, in its black and grey colour variant, is a round cable 10 m in length with straight-format type A male HDMI connectors at both ends. Its AWG 24 gauge and minimum bend radius of 9.8 cm allow it to be installed over long runs without straining the connection. It supports graphic resolutions of up to 3840 x 2160 and 4096 x 2160, as well as 2160p video modes and 3D content. It supports DTS-HD and Dolby TrueHD audio technologies, and offers a data transfer rate of 10.2 Gbit/s. It features 4:2:0 colour sampling and an aluminium plate material that reinforces the connectors. Its nominal attenuation remains controlled across the entire frequency range, from 300 kHz to 5.1 GHz. It is a connection solution for video equipment requiring a long run with high-definition audio.
Specifications
Features
- Cable length: 10 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black, Grey
- HDMI version: 2.0
- 3D: Yes
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Supported video modes: 2160p
- Dolby technologies: DTS-HD, Dolby TrueHD
- Data transfer rate: 10.2 Gbit/s
- Maximum refresh rate: 60 Hz
- AWG wire size: 24
- Contact material: Phosphor bronze
- Connector contacts plating: Gold
- Connector housing material: Polyvinyl chloride (PVC)
- Connector material: Gold
- Cable material: Copper
- Cable type: Round cable
- Cable jacket material: Polyvinyl chloride (PVC)
- Shield material: Aluminium
- Bending radius (min): 9.8 cm
- Colour sampling: 4:2:0
- Nominal attenuation: 300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Compliance certificates: RoHS
- Certification: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 9.8 mm
- Connector 1 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm
- Connector 2 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm
Packaging data
- Package type: Polybag
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
