Description

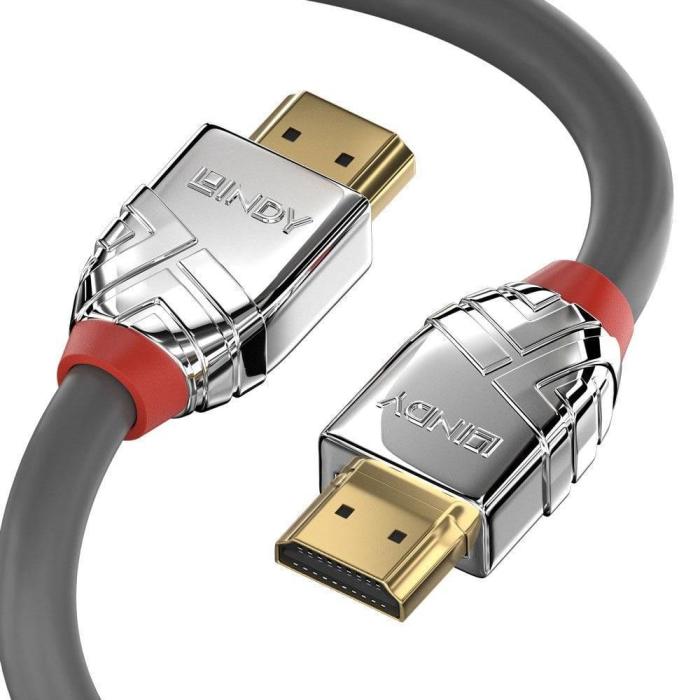

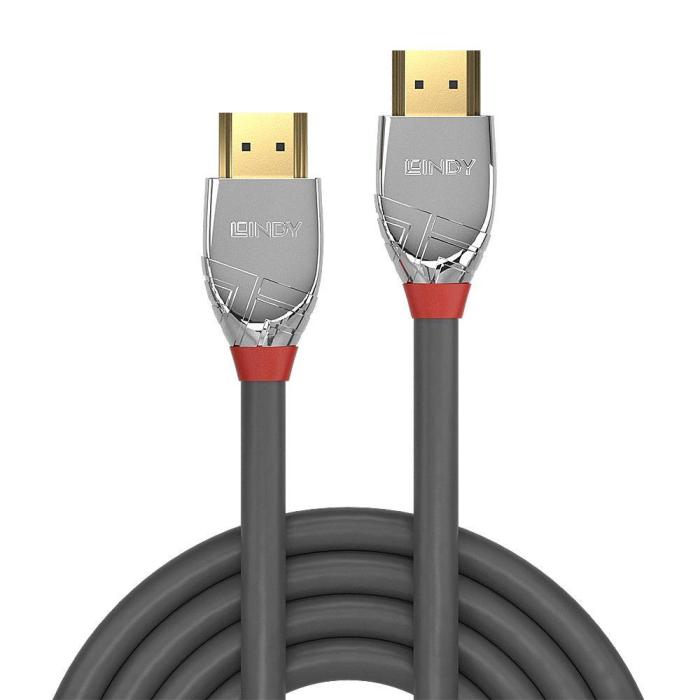

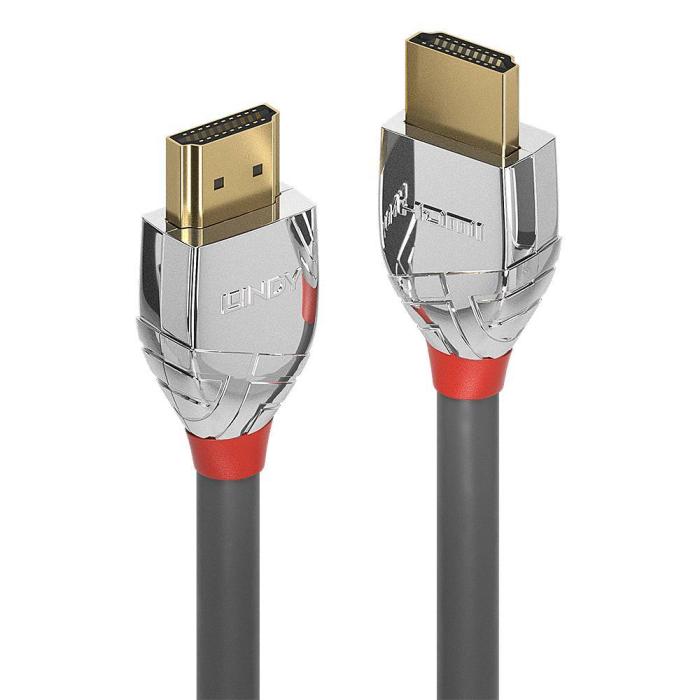

The LINDY HDMI cable connects your devices with standard male type A HDMI connectors at both ends and is available in grey and silver. With a length of 5 m, this 5 m cable easily reaches between the equipment and the screen. Its round 28 AWG construction integrates phosphor copper conductors and contacts, while the copper plating reinforces each connection. Compatible with HDMI 2.0, it achieves graphic resolutions of up to 4096 x 2160 and a data transfer speed of 18 Gbit/s, with a colour depth of 8 bit. It incorporates an HDMI Ethernet channel and maintains a minimum bend radius of 6 cm for tight installations. Its straight connectors facilitate assembly in confined spaces. The nominal attenuation remains controlled across the entire frequency range, from 300 kHz to 5.1 GHz, offering stable transmission.
Specifications
Features
- Cable length: 5 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Grey, Silver
- HDMI version: 2.0
- Supported graphics resolutions: 4096 x 2160
- HDMI Ethernet channel: Yes
- Data transfer rate: 18 Gbit/s
- Maximum resolution: 4096 x 2160 pixels
- AWG wire size: 28
- Contact material: Phosphor copper
- Connector contacts plating: Gold
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- Connector material: Gold
- Cable material: Tinned copper
- Cable type: Round cable
- Cable jacket material: Polyvinyl chloride (PVC)
- Shield material: Copper
- Bending radius (min): 6 cm
- Colour depth: 8 bit
- Colour sampling: 4:4:4
- Nominal attenuation: 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Operational conditions
- Operating temperature (T-T): -10 - 80 °C
- Storage temperature (T-T): -10 - 80 °C
Certificates
- Certification: RoHS, REACH, UL, ATC
Weight & dimensions
- Cable diameter: 7.3 mm
- Connector 1 dimensions (WxDxH): 20 x 34.1 x 11.8 mm
- Connector 2 dimensions (WxDxH): 20 x 34.1 x 11.8 mm
Packaging data
- Package type: Polybag
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
