Description

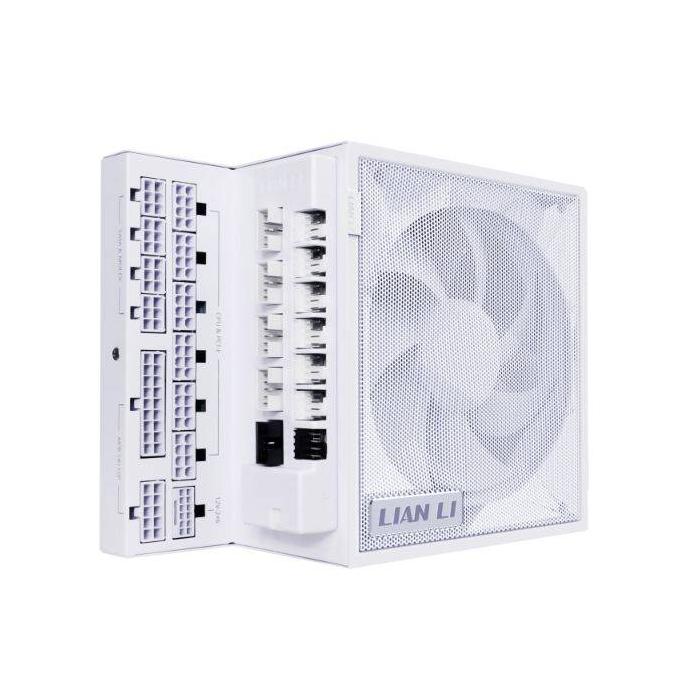

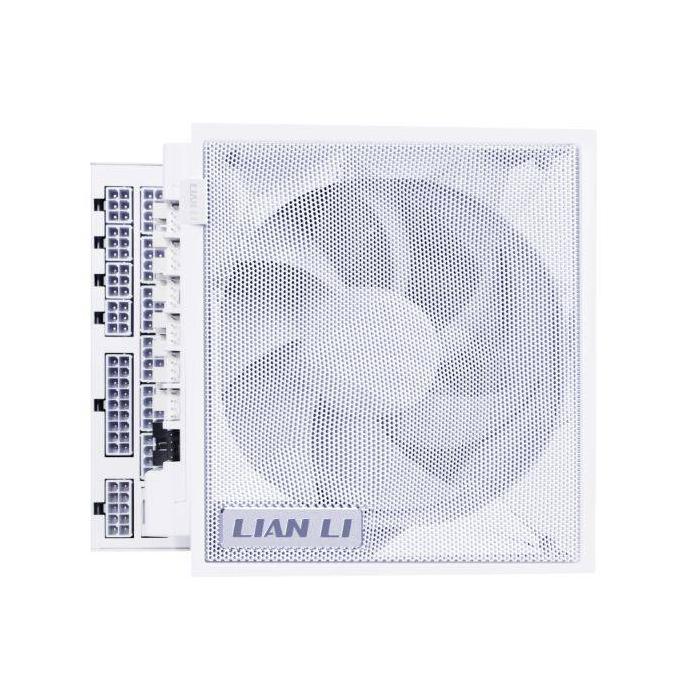

The Lian Li EG0850G power supply unit in a white finish offers a total power output of 850 W with an AC input voltage of 100 - 240 V and an efficiency of 92.41%, ideal for demanding setups. It incorporates active power factor correction (PFC) and delivers a combined power of 849.6 W on the +12 V rail, along with 120 W on the 3.3 V rail. Its cables include one 8-pin EPS connector and one 4+4-pin connector for the CPU, with lengths of 55 cm and 50 cm respectively, in addition to three SATA connectors, four Molex connectors, and four PCI Express connectors (three 6+2-pin and one 6-pin). This ATX model with a standard form factor and 20+4-pin connectors is suitable for builds that require a balanced power distribution.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 - 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 849.6 W
- Efficiency: 92.41%
- Power protection features: No load operation, Over current, Over power, Over total voltage, Over voltage, Short circuit, Surge & inrush protection (SIP), U

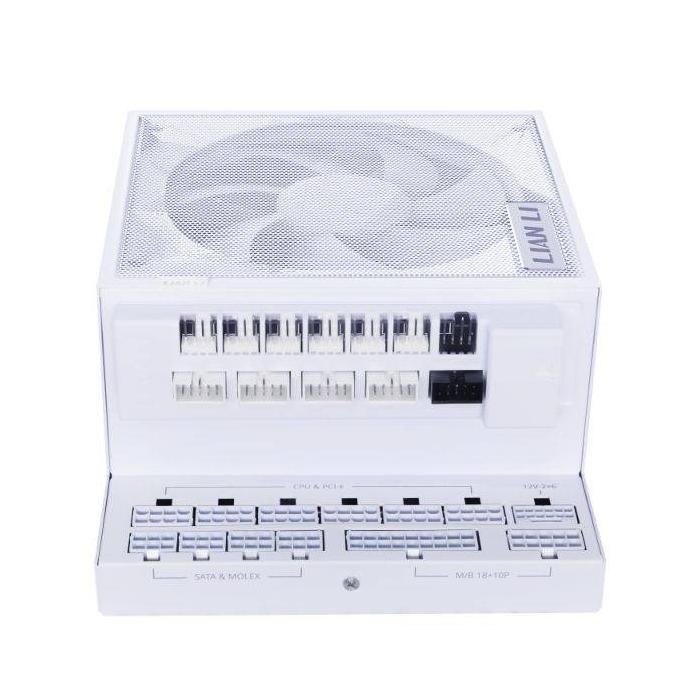

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 50 cm
- Number of SATA power connectors: 3
- SATA power cable length: 300, 400 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 500 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6-pin): 1
- PCI Express power connectors (6+2 pin): 3
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 55 cm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Noise level: 25.96 dB
- Bearing technology: FDB
Design
- Product colour: White
- Cooling type: Active
- Fan diameter: 12 cm
- On/off switch: Yes
Packaging content
- Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
- Width: 86 mm
- Depth: 182 mm
- Height: 150 mm
