Description

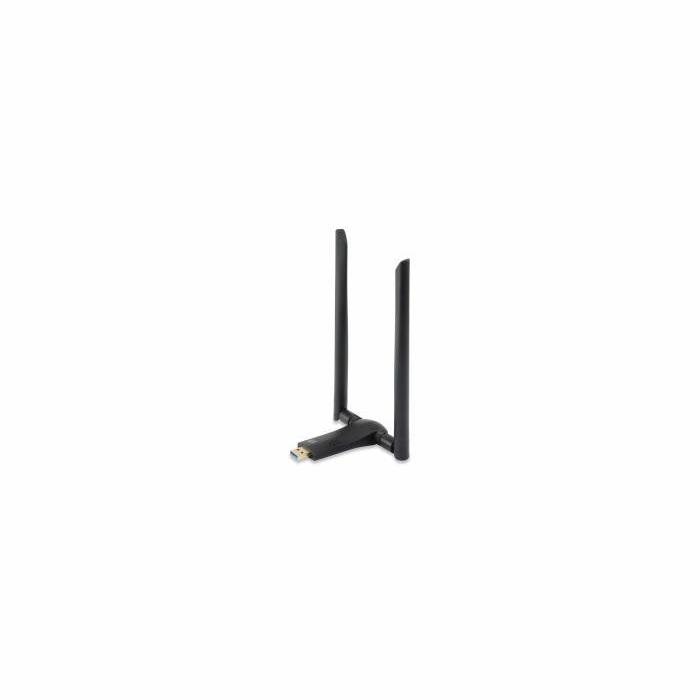

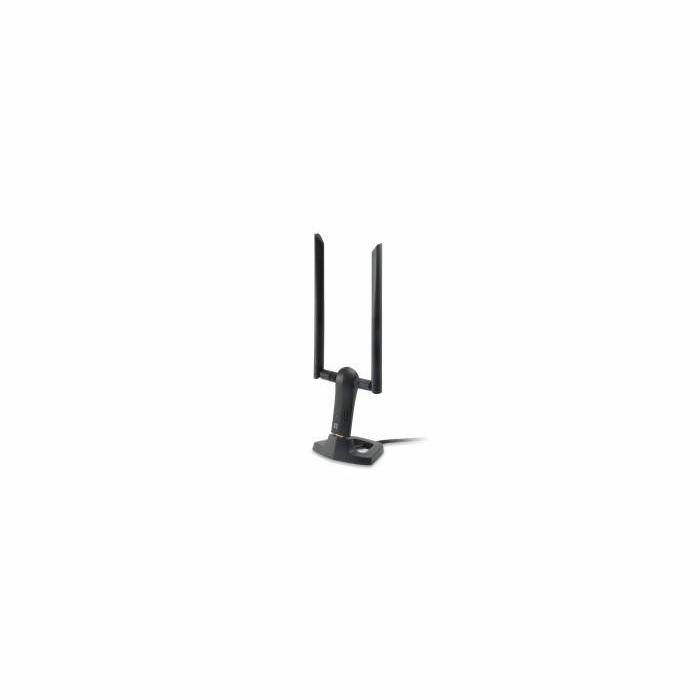

Connect the LevelOne WUA-1810E WLAN adapter via USB to add wireless connectivity to the computer. It works with the USB host interface and USB 3.2 Gen 1 version, so the WLAN link reaches a maximum data transfer speed of 867 Mbit/s. It works in dual band with a 2.4 GHz bandwidth and a 5 GHz one, and is compatible with the Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, 802.11b and 802.11g standards. It supports the 64-bit WEP, 128-bit WEP, WPA-PSK, WPA-TKIP, WPA2-PSK and WPA2-TKIP security algorithms, and incorporates MU-MIMO 2 and DSSS and OFDM modulation. Its maximum operating distance is 10 m and it has 13 channels for the EU. It comes in black, weighs 110 g, measures 26.5 x 14.6 x 62.5 mm (width x height x depth) and has a 0.7 m cable.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: USB
- Interface: WLAN
- USB version: 3.2 Gen 1 (3.1 Gen 1)
Network
- Maximum data transfer rate: 867 Mbit/s
- Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- WLAN data transfer rates supported: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 130, 300, 867 Mbit/s
- Modulation: DSSS, OFDM
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA-PSK, WPA-TKIP, WPA2-PSK, WPA2-TKIP
- Channels quantity (EU): 13 channels
- MU-MIMO: 2
- Bandwidth (first): 2.4 GHz
- Bandwidth (second): 5 GHz
- Maximum operating distance: 10 m
Design
- Product colour: Black
- Internal: No
- Antenna: Yes
- Antenna design: External
- Chipset: RTL8812BU
- Plug and Play: Yes
- LED indicators: Status
- Country of origin: China
- Receiver sensitivity: 11n:-68dBm@130M-68dBm@108M 11g:-69dBm@54M 11b:-85dBm@11M 11ac:-59dBm@867M
- Certification: CE, LVD, RED
Power
- Input current: 0.5 A
- Output voltage: 5 V
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 26.5 mm
- Depth: 62.5 mm
- Height: 14.6 mm
- Weight: 110 g
Packaging data
- Package type: Box
- Package width: 103 mm
- Package depth: 206 mm
- Package height: 39 mm
- Package weight: 170 g
Packaging content
- Cables included: USB
- Resource CD: Yes
- Quick installation guide: Yes
- Manual: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Gain: 5 dBi
- Detachable antenna(s): Yes
- Antennas quantity: 2
- Cable length: 0.7 m
